198041 8008630 CyberOptics CBA40 Hawkeye Green Camera For DEK stencil printer
-
Highlight
Hawkeye Green Camera for DEK printer
,CBA40 stencil printer camera
,CyberOptics CBA40 SMT spare parts
-
Place of OriginUSA
-
Brand NameCyberOptics
-
CertificationCE-198041
-
Model Number198041
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram
198041 8008630 CyberOptics CBA40 Hawkeye Green Camera For DEK stencil printer

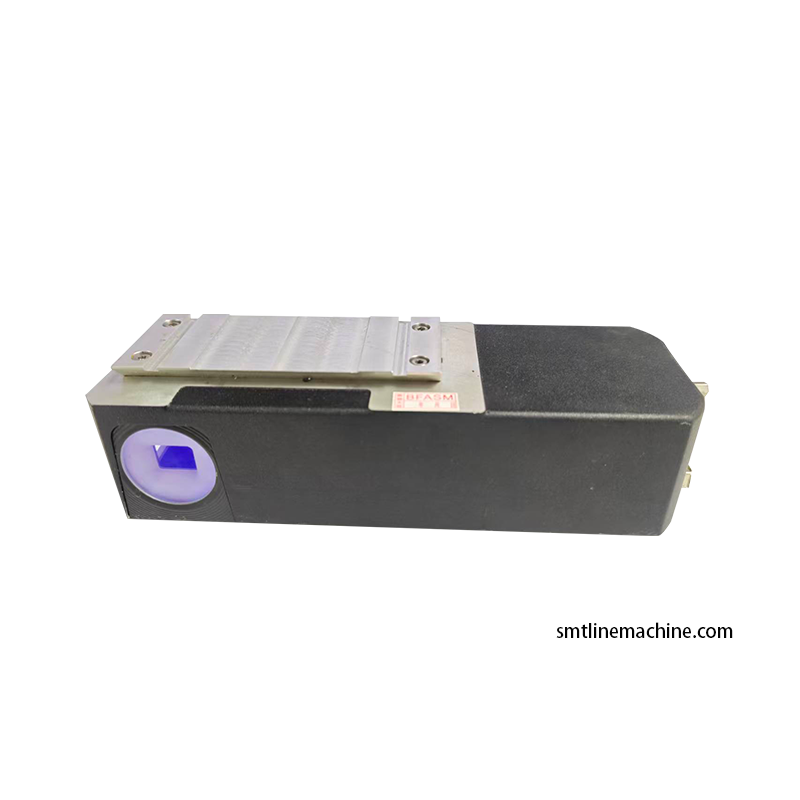

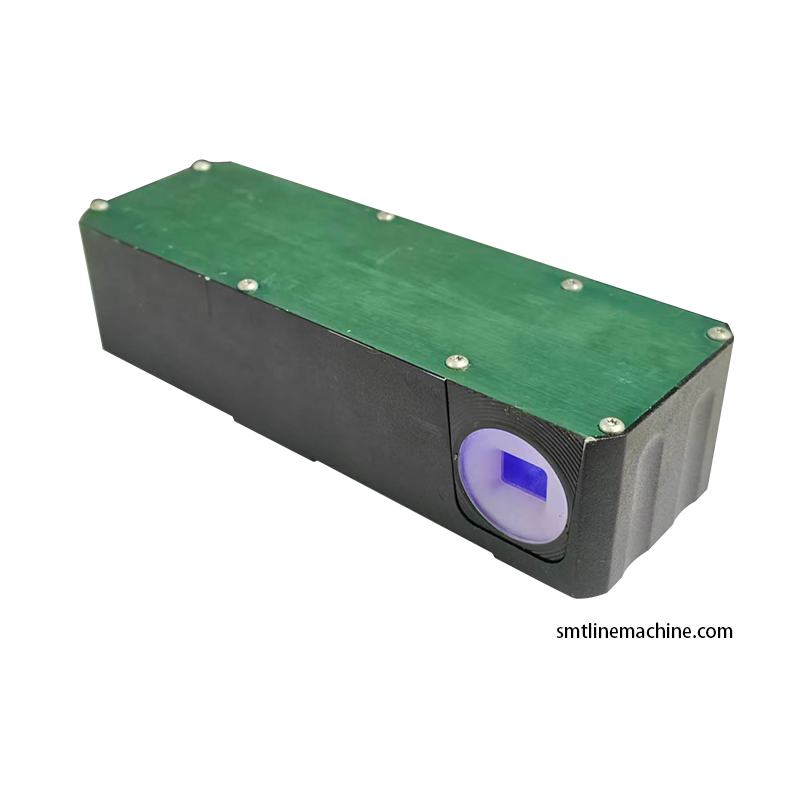

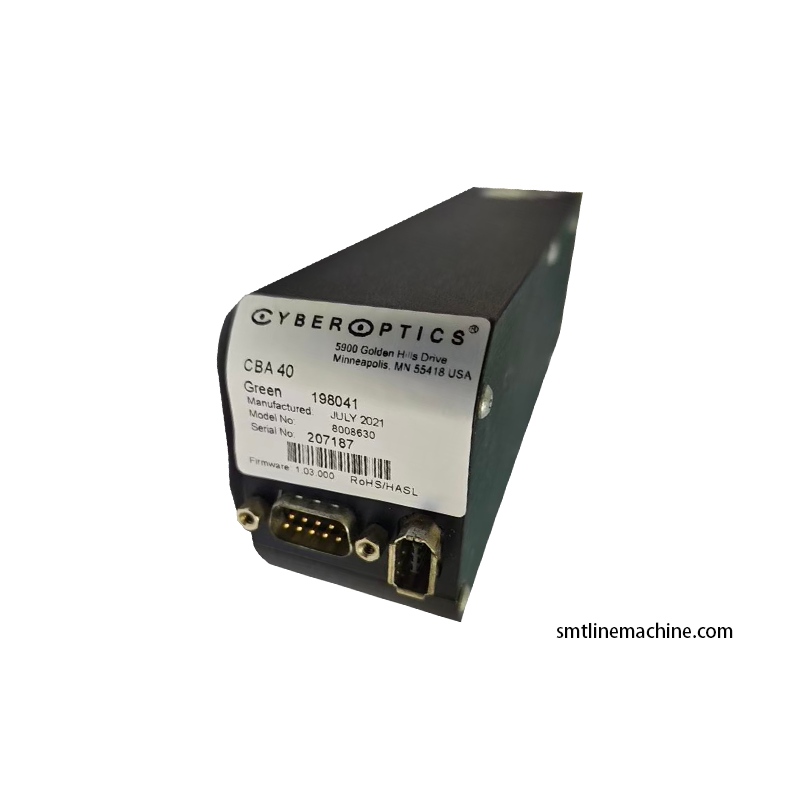

CyberOptics CBA40 Hawkeye Green Camera
Part Number: 198041 8008630
The CBA40 Hawkeye Green Camera is the original industrial vision component designed for DEK series solder paste printers. Equipped with built-in blue LED lighting system and FireWire 1394 communication interface, it acquires fiducial mark images of PCB and stencil to complete automatic alignment. Widely used for equipment maintenance and spare part replacement in SMT electronic assembly factories.
Technical Specifications
| Part Number | 198041 |
| Product Name | CyberOptics CBA40 Hawkeye Green Camera |
| Applicable Equipment | DEK Horizon, DEK 03iX, E by DEK solder paste stencil printing machine |
| Function | This vision camera serves as the core visual positioning module of DEK stencil printer. It captures clear images of PCB fiducials and stencil marks, transmits image data to the machine controller, executes visual calculation, and realizes high-precision automatic alignment between circuit board and stencil, stabilizing solder paste printing quality during mass production. |
| Brand | CyberOptics |
| Supplier | CNSMT |
| Condition | Brand New |
Core Functions
- Capture PCB fiducial mark images to realize circuit board positioning
- Collect stencil reference mark data to complete stencil position calibration
- Built-in blue light source guarantees stable imaging under complicated workshop light conditions
- High-speed FireWire data transmission supports real-time visual alignment operation
Product Overview
CyberOptics CBA40 Hawkeye Green Camera PN 198041 is original spare part for DEK SMT stencil printers. Featuring reliable visual alignment performance, it effectively reduces printing deviation and downtime. Stock of new original and tested used cameras is sufficient. Fast global delivery and professional technical support are available for SMT equipment suppliers and electronic manufacturers.
Related Part Numbers
- 198043 / 8012983
- 191643 / 8008633
- 8012980
