KH5-M655A-A0X KH5-M655A-A1X YAMAHA HPX-A2 Fiber Optic Sensor YG YV Series
-
Highlight
YAMAHA YG YV mounter fiber optic kit
,HPX-A2 fiber optic sensing kit
,YAMAHA mounter inspection spare part
-
Place of OriginJAPAN
-
Brand NameYAMAHA
-
CertificationCE- KH5-M655A-A0X
-
Model NumberKH5-M655A-A0X
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram
KH5-M655A-A0X KH5-M655A-A1X YAMAHA HPX-A2 Fiber Optic Sensor YG YV Series
KH5-M655A-A0X KH5-M655A-A1X YAMAHA HPX-A2 Fiber Optic Sensing Kit For YG YV Mounter

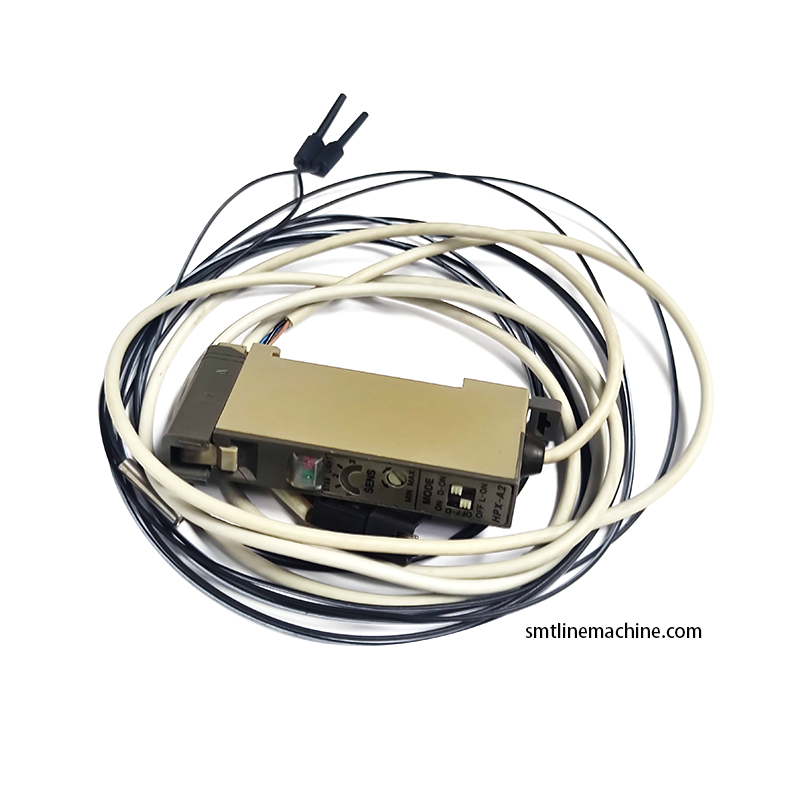

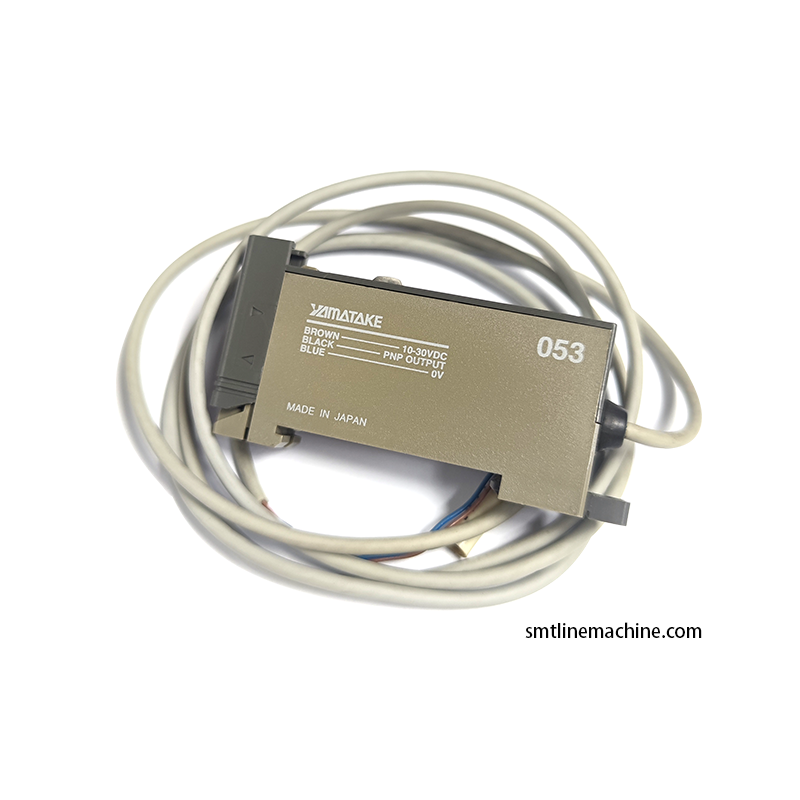

Complete fiber optic sensing assembly consisting of YAMATAKE HPX-A2 fiber amplifier and matched dedicated fiber probe cable. Two part numbers with internally calibrated different sensing parameters to fit various YAMAHA placement head models.
Technical Specifications
| Part Number | KH5-M655A-A0X KH5-M655A-A1X |
|---|---|
| Product Name | YAMAHA HPX-A2 Fiber Optic Sensing Kit For YG YV Mounter |
| Applicable Equipment | YAMAHA YG100 YG200 YV100XG high-speed multi-nozzle placement machines |
| Brand | YAMAHA |
| Supplier | CNSMT |
| Condition | Brand New |
Function & Purpose
Installed inside the electrical compartment of YG/YV series placement heads, this SMT mounter complete fiber sensing spare parts forms a full detection loop for nozzle existence and chip suction status. The fiber probe contacts the detection position to collect light signals, while the amplifier converts weak optical signals into digital signals and feeds data back to the machine control system automatically.
Core Functions
- High precision fiber optic sensing to accurately detect component presence and offset
- Stable compatibility with full YG YV series mounters with undiminished detection signal during long time production
- Complete original sensing kit easy alignment and installation without extra adjustment parts
- Sensitive signal response to effectively reduce missing detection and component dropping defects
CNSMT supplies brand new complete KH5-M655A-A0X and KH5-M655A-A1X HPX-A2 fiber sensing kits compatible with YAMAHA YG YV series SMT mounters. Integrated amplifier and fiber cable deliver consistent high-precision nozzle and component recognition performance, minimizing unexpected machine shutdown triggered by sensing system faults.
