YAMAHA YG100 vacuum ejector
,YAMAHA YG200 pneumatic valve
,original YAMAHA mounter spare part
-
Place of OriginJAPAN
-
Brand NameYAMAHA
-
CertificationCE- KGT-M7163-00X
-
Model NumberKGT-M7163-00X
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram

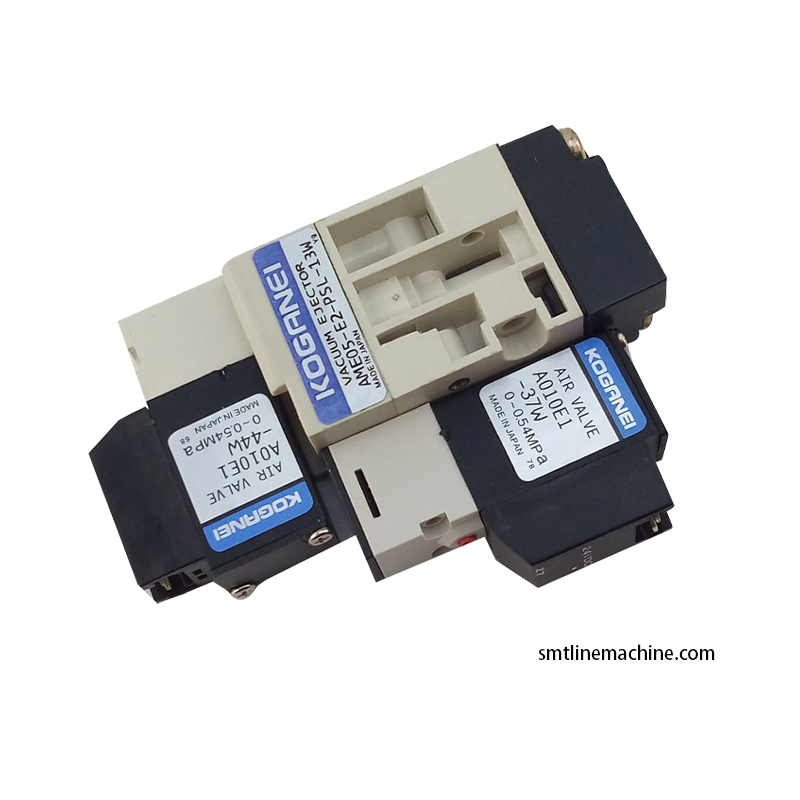

KGT-M7163-00X YAMAHA YG100 YG200 Vacuum Ejector Valve Assembly
KGT-M7163-00X Vacuum Ejector Air Valve Assembly
Original pneumatic spare part designed for YAMAHA YG100 and YG200 mounters. This integrated vacuum ejector assembly serves as a core component for YAMAHA YG series placement heads, working with KOGANEI A010E1 solenoid valves to form a complete air suction control unit.
Technical Specifications
| Part Number | KGT-M7163-00X |
|---|---|
| Product Name | YAMAHA YG100 YG200 Vacuum Ejector Valve Assembly |
| Applicable Equipment | YAMAHA YG100 YG200 high speed chip placement machines |
| Brand | YAMAHA |
| Supplier | CNSMT |
| Condition | Brand New |
Function & Purpose
Installed within the moving placement head of YG series mounters, this air suction module generates vacuum negative pressure to securely hold micro chips during pickup and movement. It rapidly switches air paths via supporting solenoid valves to complete chip release blow-off actions after placement.
Core Functions
- Generate stable negative vacuum pressure to ensure smooth component pickup by nozzle
- Integrated air valve assembly quickly switches vacuum on off for pick and place operation
- Match pneumatic circuit of YG100 YG200 with balanced air output during long mass production
- Wear resistant sealing valve structure prevents air leakage and extends service life under continuous operation
Product Benefits
CNSMT supplies brand new original KGT-M7163-00X vacuum ejector valve assemblies that maintain consistent stable negative pressure output, optimizing micro component pickup stability and reducing unexpected machine downtime caused by vacuum system failures. This assembly supports fast global delivery for placement head overhaul and factory pneumatic spare part storage.
