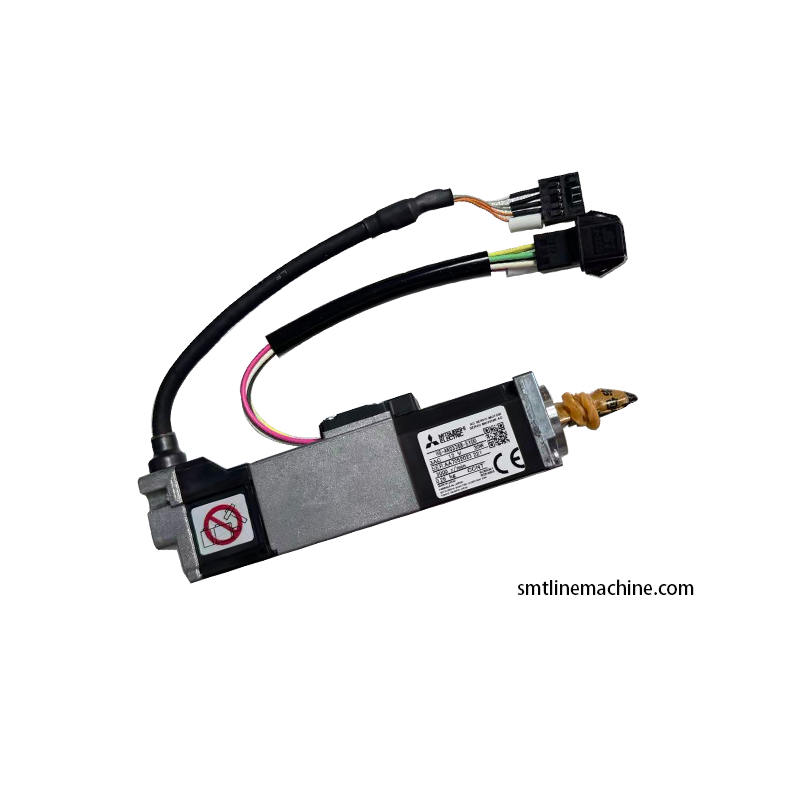

EZ149223525 EZ149223515 HG-AK0336B-S100 Z Axis AC Servo Motor Original Spare Part For JUKI RX-7 Mounter
EZ149223525 EZ149223515 HG-AK0336B-S100 Z Axis AC Servo Motor
Original spare part designed specifically for JUKI RX-7 series mounters, providing reliable vertical axis motion control for high-speed SMT placement operations.
Product Overview
EZ149223515 is a miniature 30W AC servo motor customized by Mitsubishi exclusively for JUKI RX-7 series placement heads, marked with assembly part number EZ149223525. This compact slim body motor is embedded inside the P16 placement spindle, delivering fast vertical lifting power for suction nozzle pickup and placement operations.
Technical Specifications
| Part Number | EZ149223525 |
| Product Name | JUKI RX-7 Z (R) Axis AC Servo Motor 13V 30W HG-AK0336B-S100 |
| Applicable Equipment | JUKI RX-7 RX-7R P16 high-speed SMT placement machines |
| Brand | JUKI |
| Supplier | CNSMT |
| Condition | Brand New |
Function & Purpose
Mounted within the P16 placement spindle of RX-7/RX-7R mounters, this servo motor drives the Z-axis vertical stroke of suction nozzles to complete chip pickup and PCB mounting. The built-in position feedback encoder transmits real-time vertical coordinate data to the machine control system to fine-tune lifting speed and depth dynamically.
Core Features
- Original matching wiring terminals and mounting flange enable direct replacement without machine modification or spindle travel recalibration
- 18-bit high-precision absolute encoder delivers ultra-low vertical positioning error for offset-free ultra-thin component placement
- Built-in power-off holding spring locks spindle automatically to avoid PCB and nozzle collision caused by self-weight sinking
- 30W high-response low-power winding realizes smooth lift start and stop without impact, slowing abrasion of spindle lead screw assemblies
- Optimized low-vibration coil design restrains vertical jitter during ultra-high-speed cycling
- Stabilizes component positioning precision and cuts abrasion of spindle transmission parts
Quality Assurance
CNSMT supplies brand new original EZ149223525 EZ149223515 Z-axis servo motors with HG-AK0336B-S100 core for JUKI RX-7 RX-7R SMT mounters. Fast response vertical drive and built-in holding brake maintain long-term ultra-fine component placement stability, cutting unexpected downtime from motor aging and spindle collision failures. All units pass full position and brake function testing before shipment, with stable stock supporting global fast delivery for placement head overhaul and spare part reserve.
