EZ149223525 EZ149223515 HG-AK0336B-S100 Z Axis AC Servo Motor For JUKI RX-7 Mounter
-
Highlight
JUKI RX-7 Z Axis servo motor
,JUKI mounter AC servo motor
,JUKI spare parts with warranty
-
Place of OriginJAPAN
-
Brand NameJUKI
-
CertificationCE- EZ149223525
-
Model NumberEZ149223525
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram
EZ149223525 EZ149223515 HG-AK0336B-S100 Z Axis AC Servo Motor For JUKI RX-7 Mounter
EZ149223525 EZ149223515 HG-AK0336B-S100 Z Axis AC Servo Motor
Original spare part designed specifically for JUKI RX-7 series mounters, providing reliable vertical axis motion control for high-speed SMT placement operations.
Product Overview

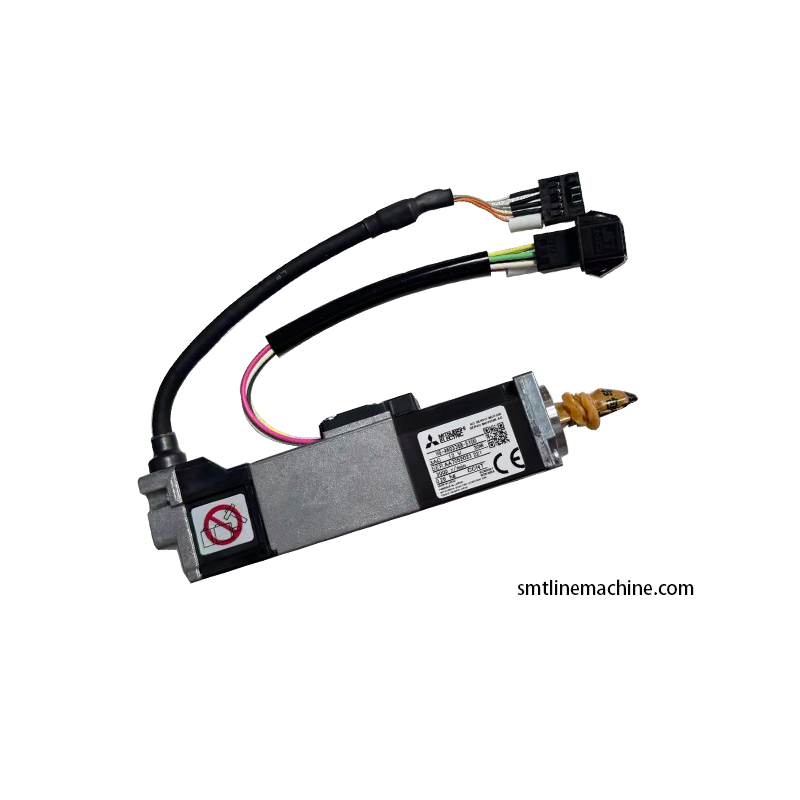

EZ149223515 is a miniature 30W AC servo motor customized by Mitsubishi exclusively for JUKI RX-7 series placement heads, marked with assembly part number EZ149223525. This compact slim body motor is embedded inside the P16 placement spindle, delivering fast vertical lifting power for suction nozzle pickup and placement operations.
Technical Specifications
| Part Number | EZ149223525 EZ149223515 |
| Product Name | JUKI RX-7 Z (R) Axis AC Servo Motor |
| Applicable Equipment | JUKI RX-7 RX-7R P16 high-speed SMT placement machines |
| Brand | JUKI |
| Supplier | CNSMT |
| Condition | Brand New |
Function & Purpose
Mounted within the P16 placement spindle of RX-7/RX-7R mounters, this servo motor drives the Z-axis vertical stroke of suction nozzles to complete chip pickup and PCB mounting. The built-in position feedback encoder transmits real-time vertical coordinate data to the machine control system to fine-tune lifting speed and depth dynamically.
Core Features
- Output stable high precision torque to drive Z axis for pick and place accurately
- Perfectly match control system of JUKI RX-7 with synchronous signal response
- Original winding design keeps low temperature during long time high speed operation
- Closed-loop position feedback reduces mounting offset and improves production yield
Quality Assurance
CNSMT supplies brand new original EZ149223525 EZ149223515 Z-axis servo motors with HG-AK0336B-S100 core for JUKI RX-7 RX-7R SMT mounters. Fast response vertical drive and built-in holding brake maintain long-term ultra-fine component placement stability, cutting unexpected downtime from motor aging and spindle collision failures. All units pass full position and brake function testing before shipment, with stable stock supporting global fast delivery for placement head overhaul and spare part reserve.
