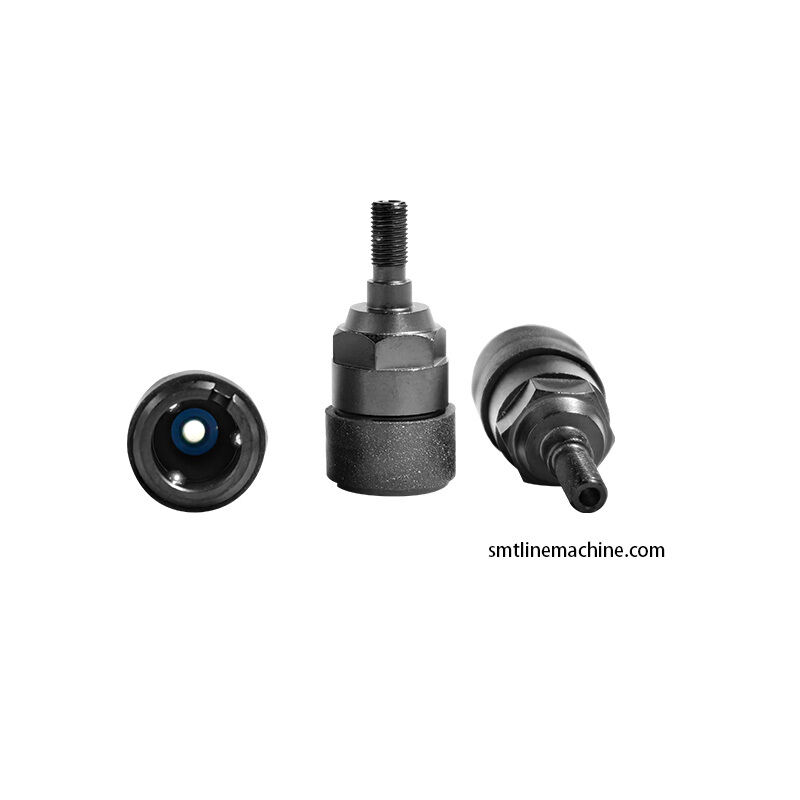

J90551225A Nozzle Holder Assy Original Spare Part For HANWHA SM471 SM481 Mounter
-
Highlight
original nozzle holder assy for Hanwha SM471
,SM481 mounter spare parts
,J90551225A nozzle holder assembly
-
Place of OriginKorea
-
Brand Namesamsung/hanwha
-
CertificationCE-J90551225A
-
Model NumberJ90551225A
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram
J90551225A Nozzle Holder Assy Original Spare Part For HANWHA SM471 SM481 Mounter
J90551225A Nozzle Holder Assembly for HANWHA SM471 SM481 Mounter
The J90551225A is a critical Z-axis accessory for HANWHA/SAMSUNG chip mounters, known as the Nozzle Holder Assembly. It securely mounts the nozzle onto the placement head and transmits power from the Z-axis motor for high-speed, precise pick-and-place operations. Its precision directly affects the mounter's capability to handle micro-components and the final placement yield.
Technical Specifications
| Part Number | J90551225A |
| Product Name | Samsung HANWHA SM481 Nozzle Connector |
| Applicable Equipment | HANWHA SM431 SM471 SM481 SM482 series pick and place machines |
| Brand | Customized by CNSMT |
| Supplier | CNSMT |
| Condition | Brand New |
Function & Purpose
- Nozzle Mounting: Serves as the base to ensure the nozzle remains stable during high-speed operations
- Power Transmission: Accurately transmits the Z-axis motor's vertical motion to the nozzle for component pickup and placement
- Wear-and-Tear Part: As a high-frequency moving component, replacement is a common maintenance practice to restore equipment precision after wear
Core Functions
- Provides a standard interface for quick installation and exchange of various nozzle types to fit different components
- Connects the Z-axis drive to the nozzle, ensuring smooth, jam-free, and responsive vertical motion
- The assembly's rigidity and concentricity directly determine pick-and-place positional accuracy, forming the foundation for yield
- As a standardized spare part, its replacement process is straightforward, effectively minimizing equipment downtime
CNSMT supplies brand new J90551225A nozzle connectors for Samsung HANWHA SM series SMT mounters. Reliable vacuum transmission and stable locking performance effectively cut machine downtime and production defective rate. Sufficient stock supports fast global shipment for equipment maintenance.
Contact Information
Phone: +8613537875415 (He)
Email: Lizzy@smtlinemachine.com
Address: Xintian Industrial Area, Baoan, Shenzhen City, China
