Samsung CP504 SMT nozzle
,Samsung CP Series placement nozzle
,SMT placement nozzle with warranty
-
Place of OriginKorea
-
Brand Namesamsung/hanwha
-
CertificationCE-CP504 nozzle
-
Model NumberCP504
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram

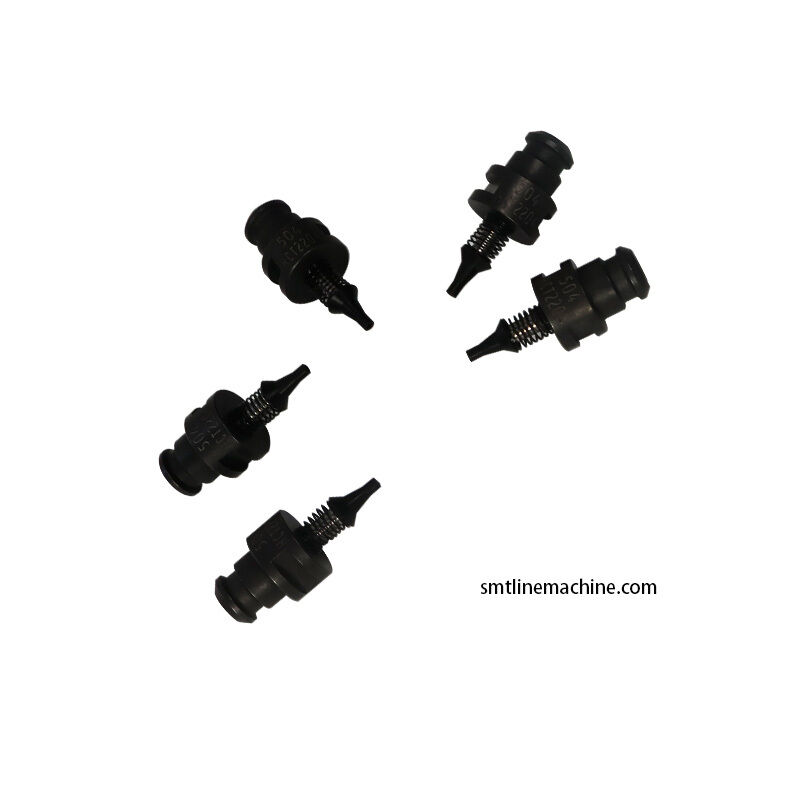

CP504 Samsung CP Series SMT Placement Nozzle
CP504 Samsung CP Series SMT Placement Nozzle
The CP504 SMT Nozzle is a dedicated placement nozzle designed specifically for Samsung CP series pick and place machines. Manufactured with premium tungsten steel tip material for exceptional hardness and wear resistance, it ensures stable vacuum suction for medium-sized chip components. This nozzle accurately picks and places 0805 and 1206 package components while maintaining placement precision and supporting continuous high-speed SMT production.
Technical Specifications
| Part Number | 80451-405 |
| Product Name | SMT Samsung Hanwha Custom Nozzle |
| Applicable Equipment | Samsung CP series placement machines (CP45FV, CP50, CP60, CP40NEO, etc.) |
| Function & Purpose | Picks up medium-sized chip components (0805, 1206) via vacuum suction and places them accurately onto PCB pads, ensuring placement precision and production yield |
| Brand | Customized by CNSMT |
| Supplier | CNSMT |
| Condition | Brand New |
Core Functions
- Picks up medium-sized 0805 and 1206 chip components via vacuum suction, ensuring stable holding without dropping
- Tungsten steel tip with high hardness and wear resistance, maintains consistent suction without surface whitening over long-term use
- Compatible with Samsung CP series machine interface for easy installation and quick changeover
- Precise placement positioning, works with placement head vision system to ensure component placement accuracy
CNSMT supplies the CP504 SMT placement nozzle compatible with Samsung CP series pick and place machines. Made of high-hardness tungsten steel tip material with excellent wear resistance, it delivers stable vacuum suction and precise placement performance. Our high-quality products sell well globally with affordable prices, steady supply and comprehensive after-sales service, boosting efficient SMT production and reducing consumable maintenance costs.
