0402 FCM high-speed placement nozzle
,YAMAHA spare parts placement nozzle
,high-speed machine nozzle for FCM
-
Place of OriginJAPAN
-
Brand NameYAMAHA
-
CertificationCE-0402
-
Model Number0402
-
Minimum Order Quantity1 set of machine or mixed order is also acceptable Transport: By Bulk or Containers
-
PriceNegotiable
-
Packaging DetailsStandard export boxes and sturdy hardwood packages are both options
-
Delivery Time1-2 Working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union,MoneyGram

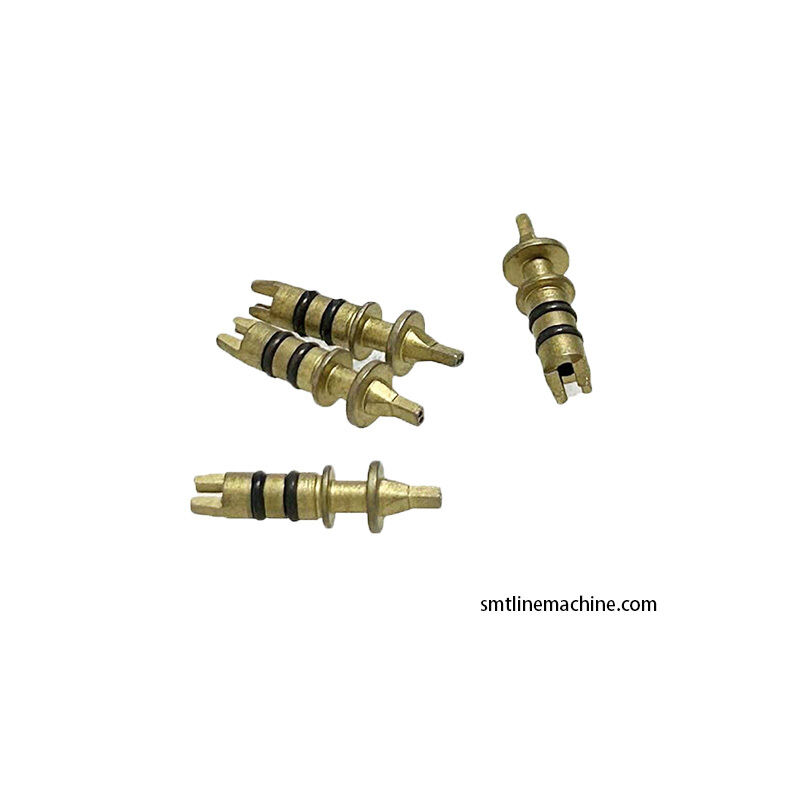

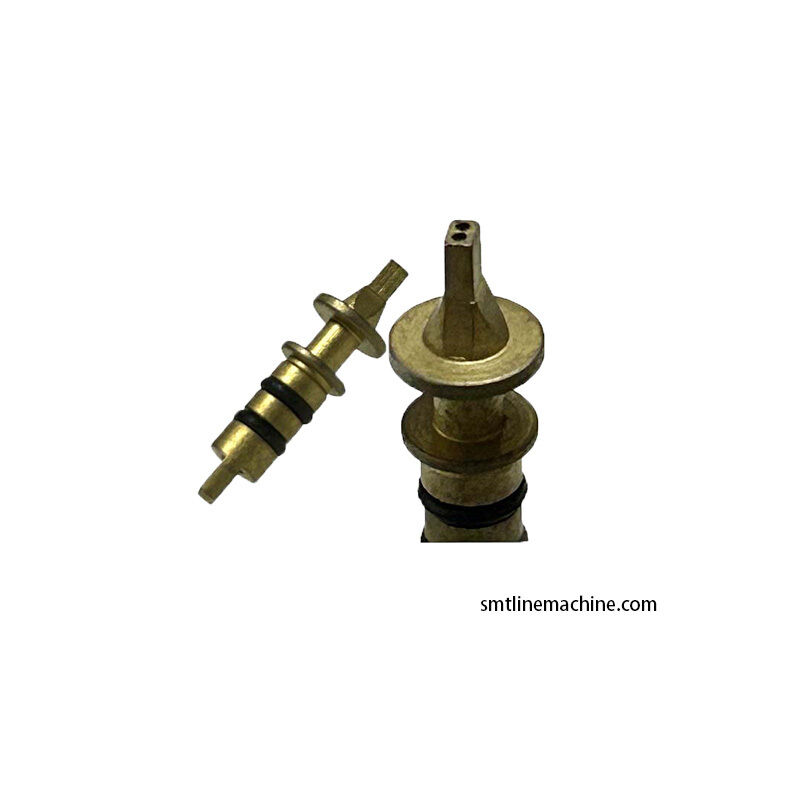

0402 FCM High-Speed Placement Machine Nozzle
0402 FCM High-Speed Placement Machine Nozzle
The FCM Series SMT Nozzle is engineered for high-speed component placement on Assembleon FCM series machines. Manufactured from wear-resistant ceramic and anti-static materials, it delivers stable vacuum suction and maintains precise positioning throughout continuous high-volume SMT production operations.
Technical Specifications
| Part Number | 0402 |
| Product Name | FCM High-Speed Placement Machine Nozzle |
| Applicable Equipment | Assembleon FCM-1, FCM-2 and FCM Multiflex series high-speed placement machines |
| Function & Purpose | Picks up 0402/0603/0805 chip components via vacuum suction and places them accurately onto PCB pads, ensuring placement precision and production yield |
| Brand | CNSMT |
| Supplier | CNSMT |
| Condition | Brand New |
Core Functions
- Cooperates with Assembleon FCM series placement machines to accurately pick up chip components for high-speed SMT mounting
- Resists wear and static buildup, maintains steady vacuum suction to avoid component dropping and offset, improving mounting yield
- Supports multiple component sizes with dedicated nozzle models (4720/4730/4740), compatible with FCM-1/FCM-2 machines to replace worn nozzles
- Adapts to continuous mass production, stabilizes production rhythm and cuts downtime & consumable replacement costs
Product Overview
CNSMT specializes in manufacturing B0285 custom SMT nozzles. Our products feature wear-resistant and high-temperature resistant materials that deliver stable and precise suction with customizable sizes compatible with various placement machines to boost mounting yield. With affordable pricing, fast delivery, and complete after-sales service, our nozzles help enterprises reduce consumable costs and ensure stable mass production.
