KGS-M712M-00X YG100 SMT Machine Z-axis Motor 17W Motor Aluminum Gasket Support

KGS-M712M-00X YG100 SMT Machine Z-axis Motor 17W Motor Aluminum Gasket Support

Product Name:

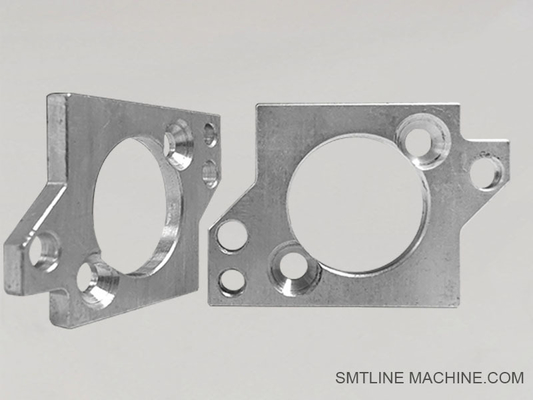

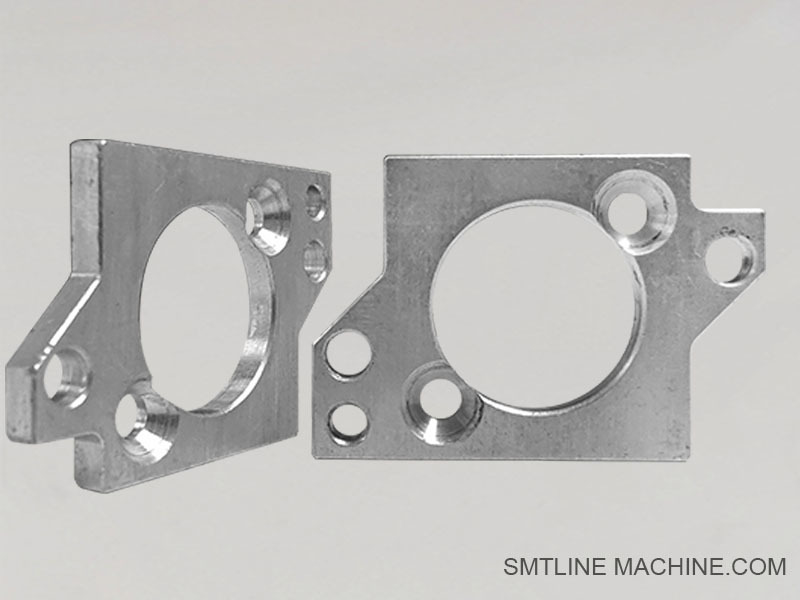

KGS-M712M-00X – YG100 SMT Machine Z-Axis Motor 17W Aluminum Spacer Bracket

Product Description:

The KGS-M712M-00X is a precision-machined aluminum spacer bracket designed specifically for the Z-axis 17W motor assembly in the Yamaha YG100 series SMT pick-and-place machines. This spacer bracket provides stable mounting and optimal alignment of the Z-axis motor, ensuring smooth vertical motion during component placement.

Manufactured from lightweight yet durable aluminum alloy, the bracket helps maintain mechanical rigidity while minimizing added weight. It also facilitates efficient heat dissipation from the motor assembly, contributing to enhanced reliability and longevity of the machine’s Z-axis drive system.

Key Features:

Designed for Yamaha YG100 SMT machine Z-axis 17W motor
High-quality aluminum alloy construction for strength and lightness
Ensures precise alignment and stable mounting of the motor
Improves heat dissipation and reduces vibration
Easy installation and maintenance access

Applications:

Z-axis motor mounting in Yamaha YG100 SMT pick-and-place machines
Critical for smooth and accurate vertical movement of the placement head
Supports machine reliability in high-speed SMT production environments

Related Accessories:

These parts are commonly used together in the assembly and maintenance of the Yamaha YG100 Z-axis motor system.

Related Part Numbers

FAQ Guide — KGS-M712M-00X

YG100 Z-Axis Motor 17W Aluminum Spacer Bracket

1. What is the purpose of the KGS-M712M-00X spacer bracket?

It provides stable and precise mounting for the 17W Z-axis motor in the Yamaha YG100 SMT machine, ensuring smooth vertical motion and proper alignment.

2. What material is the spacer bracket made of?

It is made of high-quality aluminum alloy, offering strength, durability, and efficient heat dissipation.

3. Which machines is this spacer bracket compatible with?

Specifically designed for Yamaha YG100 series SMT pick-and-place machines.

4. How do I know if the spacer bracket needs replacement?

Visible cracks or deformation
Motor misalignment causing irregular Z-axis movement
Excessive vibration or unusual noise from the motor assembly area

5. Can this spacer bracket be replaced independently?

Yes, it can be removed and replaced separately without replacing the entire motor assembly.

6. Are there related parts to check when replacing this bracket?

Yes, check the Z-axis motor assembly, motor coupling, mounting plate, and vibration dampeners for wear or damage.

7. How often should the spacer bracket be inspected?

During routine machine maintenance or if Z-axis motion issues arise.

8. Where can I purchase this part?

Available through authorized Yamaha SMT parts distributors and certified service centers.
