KGB-M71W7-00X KV8-M71W7-00X YV100XXG Head Electromagnetic Valve Bracket

KGB-M71W7-00X KV8-M71W7-00X YV100XXG Head Electromagnetic Valve Bracket

Product Name:

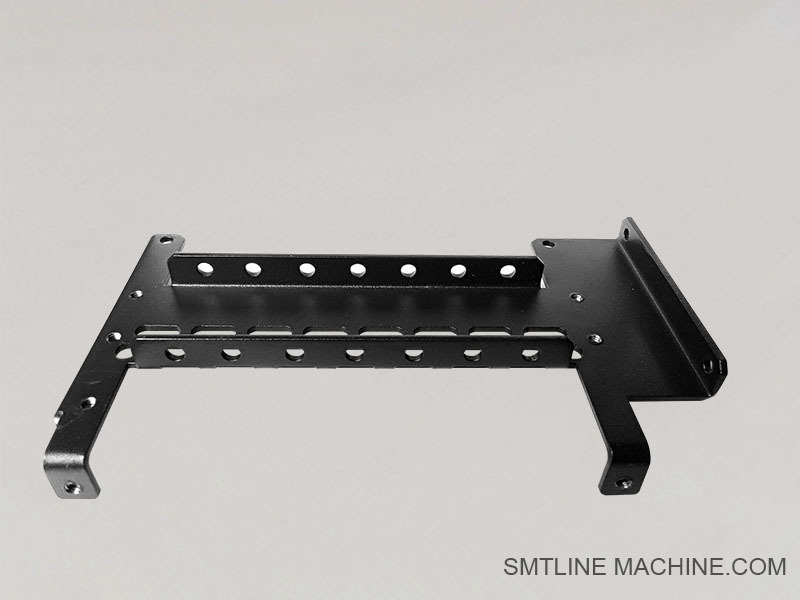

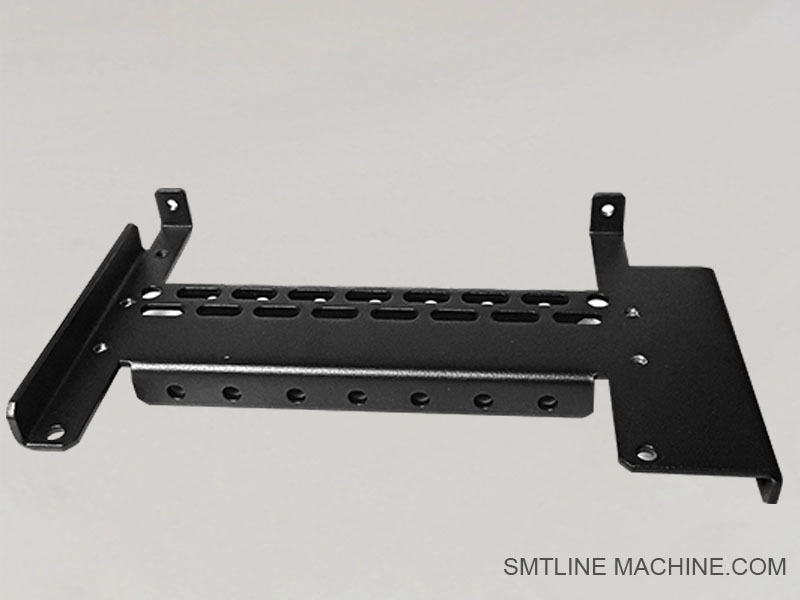

KGB-M71W7-00X / KV8-M71W7-00X – YV100XXG Head Solenoid Valve Bracket

Product Description:

The KGB-M71W7-00X (also referenced as KV8-M71W7-00X) is a precision-engineered solenoid valve bracket designed for the Yamaha YV100XXG series pick-and-place machine heads. This bracket securely mounts the solenoid valve assembly on the machine’s head unit, ensuring stable and accurate operation of the valve during component placement cycles.

Manufactured from high-quality metal alloy, the bracket provides robust support, minimizing vibrations and maintaining the alignment of the solenoid valve to the pneumatic and electronic control systems. Its design facilitates easy installation and maintenance access, helping reduce machine downtime.

Key Features:

Compatible with Yamaha YV100XXG head assemblies
Durable metal construction for long service life
Precisely machined for secure mounting and alignment
Supports stable solenoid valve operation
Easy to install and maintain

Applications:

Used in Yamaha YV100XXG series SMT pick-and-place machine heads
Integral part of the pneumatic control system managing vacuum or air flow valves
Ensures precise timing and control of the solenoid valve during production

Related Accessories:

These accessories are typically used together with the solenoid valve bracket to maintain and repair the YV100XXG head solenoid valve system.

Related Part Numbers

FAQ Guide — KGB-M71W7-00X / KV8-M71W7-00X

YV100XXG Head Solenoid Valve Bracket

1. What is the purpose of the solenoid valve bracket?

The bracket securely mounts the solenoid valve on the Yamaha YV100XXG head, ensuring stable positioning and alignment for reliable valve operation during pick-and-place cycles.

2. Which machines use this bracket?

This bracket is designed specifically for Yamaha YV100XXG series SMT pick-and-place machine heads.

3. What materials is the bracket made from?

It is made from high-quality metal alloy, providing strength, durability, and resistance to vibration.

4. How do I know if the bracket needs replacement?

Visible cracks, deformation, or damage
Loose mounting causing valve misalignment
Excessive vibration or unusual noises from the solenoid valve area

5. Can the bracket be installed separately?

Yes, the bracket is a standalone part and can be replaced independently without replacing the entire solenoid valve assembly.

6. Are there compatible parts or upgrades available?

Compatible solenoid valve assemblies, coils, connectors, and tubing are available as related parts to ensure full system functionality.

7. How often should the bracket be inspected?

Routine inspections are recommended during scheduled maintenance or when valve operation issues occur.

8. Where can I purchase replacement parts?

Authorized Yamaha SMT parts distributors and certified service centers carry these components.
