BrandYamaha
-
ModelKHJ-MC154-00SS8MM Feeder Coil Material Small Gear
-
Capayity1009
-
Mounter Weight0.79kg
-
Mounter Size56
-
SupplierSMTLINE
-
ConditionNew
-
Place of OriginJapan
-
Brand NameYAMAHA
-
CertificationYAMAHA Vibration Vibration Fit YV YS
-
Model NumberKHJ-MC154-00SS8MM Feeder coil material small gear
-
Minimum Order Quantity1
-
Pricenegotiation
-
Packaging DetailsWoodenbox
-
Delivery Time1-2 work days
-
Payment TermsT/T,Western Union,paypal
-
Supply Ability10pcs/day

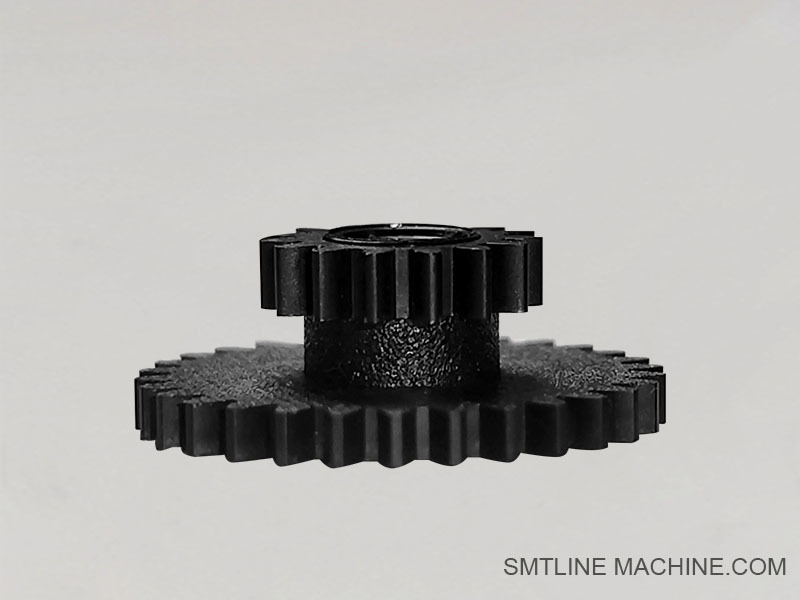

KHJ-MC154-00SS8MM Feeder coil material small gear
KHJ-MC154-00SS8MM Feeder coil material small gear
Product Name:
KHJ-MC154-00SS8MM – Feeder Coil Material Small Gear
Product Description:
The KHJ-MC154-00SS8MM is a precision-engineered small gear used in Yamaha SS 8mm electric feeders. This coil material gear is responsible for advancing the carrier tape accurately within the feeder mechanism. It works in coordination with the main and intermediate gears to ensure consistent and reliable component feeding during SMT (Surface Mount Technology) operations.
Constructed from high-durability engineering plastic, it offers excellent wear resistance, dimensional accuracy, and long-term operational stability even under high-speed conditions.
Key Features:
Compatible with Yamaha SS 8mm series electric feeders
High-precision molded gear ensures smooth and stable tape feeding
Wear-resistant material for extended service life
Easy replacement and installation during feeder maintenance
Applications:
Used in SMT Yamaha SS-type 8mm feeders
Suitable for high-speed component placement environments
Essential for ensuring precise component tape advancement
Related Accessories (All in English)
| Part Number | Part Name | Function / Description |
| KHJ-MC152-00SS8MM | Feeder Main Gear | Primary driving gear that works in tandem with small coil gears like MC154 |
| KHJ-MC153-00SS8MM | Feeder Coil Material Small Gear | Partner gear used alongside KHJ-MC154-00SS8MM for accurate tape feeding |
| KHJ-MC135-00SS8MM | Intermediate Gear | Transfers torque between main and small gears |
| KHJ-MC141-02 | Feeder Pressure Cover (Silver/Gold) | Covers and protects the material tape area over the gear |
| KHJ-MC162-00SS8MM | Feeder Rear Cover | Rear housing cover that shields internal feeder components including gears |
| KHJ-MC185-00ZSSS | Feeder Handle Pin | Pin used to secure the feeder handle mechanism |
| KHJ-MC281-00SS | Feeder Handle | Handle assembly for manual feeder control and detachment |
| KHJ-MC162-01SS8MM | Transparent Rear Plastic Cover | Clear rear cover allowing visual inspection of feeder internals |
| KHJ-MC134-00SS8MM | Feeder Small Gear (Alternate Version) | Alternate version of small gear, compatible with MC154 in some configurations |
Related Part Numbers
| Part Number | Part Name | Relation |
| KHJ-MC152-00SS8MM | Feeder Main Gear | Drives the KHJ-MC154-00SS8MM small gear |
| KHJ-MC153-00SS8MM | Feeder Coil Material Small Gear | Often paired with KHJ-MC154 in the gear set |
| KHJ-MC135-00SS8MM | Intermediate Gear | Part of the same transmission mechanism |
| KHJ-MC134-00SS8MM | Feeder Small Gear | Alternate or similar version |
| KHJ-MC141-02 | Feeder Pressure Cover (Silver/Gold) | Installed in the same feeder module |
| KHJ-MC162-00SS8MM | Feeder Rear Cover | Protects the gear set from external damage |
| KHJ-MC141-03 | Feeder Material Cover (Black) | Alternate pressure cover, black version |
| KHJ-MC281-00SS | Feeder Handle | Mounted on the same feeder frame |
| KHJ-MC185-00ZSSS | Feeder Handle Pin | Supports the feeder handle mechanism |
These part numbers are either functionally related, physically mounted in the same feeder unit, or mechanically engaged with KHJ-MC154-00SS8MM.
FAQ Guide – KHJ-MC154-00SS8MM Feeder Coil Material Small Gear
1. What is the function of the KHJ-MC154-00SS8MM?
It is a small precision gear that drives the advancement of the component tape in Yamaha SS 8mm feeders. It works in conjunction with the main and intermediate gears to ensure smooth and accurate tape feeding.
2. Which feeders is this gear compatible with?
Compatible with Yamaha SS series 8mm electric feeders, used in models such as YSM10, YSM20, and related platforms.
3. What are the signs that this gear needs replacement?
Visible wear or damage to gear teeth
Tape feeding becomes irregular or slips
Unusual noises or grinding during feeder operation
Increased feeder errors or misfeeds
4. How to maintain the KHJ-MC154-00SS8MM gear?
Clean regularly to remove dust and debris
Apply light SMT-compatible lubricant if needed, avoiding excess
Inspect during routine feeder maintenance intervals
Replace promptly if wear or damage is found
5. Can this gear be replaced individually?
Yes, it can be replaced separately without changing the entire feeder assembly. It is advisable to inspect related gears and components at the same time.
6. Is the KHJ-MC154-00SS8MM interchangeable with KHJ-MC153-00SS8MM?
No, although similar, these gears have different specifications and should be used according to feeder model requirements.
7. Where is this gear located in the feeder?
It is located within the feeder’s internal transmission gear train, between the motor-driven main gear and the tape feeding mechanism.
8. Where to purchase replacement parts?
Available from authorized Yamaha SMT parts distributors, feeder repair centers, and select third-party SMT suppliers.
