KHJ-MC162-01 SS8MM Feida tail plastic cover transparent cover

KHJ-MC162-01 SS8MM Feida tail plastic cover transparent cover

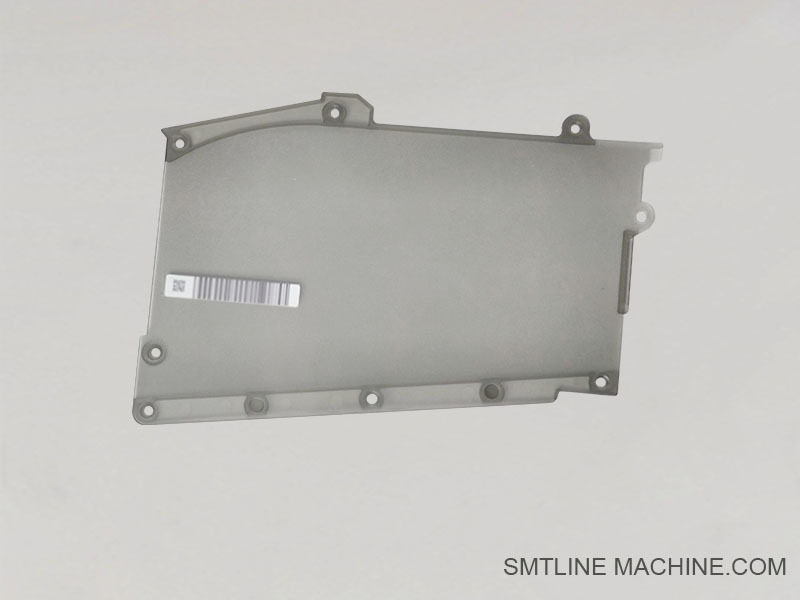

KHJ-MC162-01 – SS8MM Feeder Tail Plastic Cover (Transparent)

Rear End Protective Transparent Cover for Yamaha SS8MM Tape Feeders

Overview

The KHJ-MC162-01 is a transparent plastic tail cover designed specifically for the rear end of Yamaha SS8MM feeders. Its primary purpose is to protect the internal components at the tail section of the feeder while allowing visual inspection without removing the cover, thanks to its transparent design.

Key Features

Part Number: KHJ-MC162-01
Feeder Compatibility: Yamaha SS-series 8mm tape feeders
Material: High-clarity anti-static transparent plastic
Design: Molded to fit the feeder's tail section securely
Function:

Protects internal tail-end parts (e.g., wiring, motor, gear mechanisms)
Allows quick visual checks without disassembly
Helps maintain ESD safety and mechanical integrity

Benefits

Improves maintenance efficiency by enabling visual inspection
Shields sensitive components from dust, debris, and impact
Anti-static and lightweight material ensures safe use in SMT environments
Easy to install and remove using standard mounting hardware

Applications

Installed at the rear/tail section of Yamaha SS8MM feeders
Compatible with manual and electric feeders used in YSM10, YSM20, YS12, YG12, and similar machines
Commonly used in automated SMT production lines where quick maintenance and visibility are important

Summary

The KHJ-MC162-01 Transparent Tail Cover is a functional upgrade to the standard rear feeder cover, offering both protection and visibility. It's ideal for SMT operations focused on minimizing downtime and improving maintenance responsiveness.

Related Accessories – KHJ-MC162-01 Feeder Tail Transparent Cover

Notes:

This transparent tail cover is often used in conjunction with the feeder gear and control unit, so any maintenance should involve inspection of these related components.
Ensuring a tight and ESD-safe fit is critical for feeder stability and long-term reliability.

Related Part Numbers – KHJ-MC162-01

| Part Number | Description |
| ---------------- | ----------------------------------------------------------------------- |
| KHJ-MC162-01 | Transparent plastic tail cover for Yamaha SS8MM tape feeder |
| KHJ-MC10A-00 | Feeder main body/frame (base structure where the tail cover is mounted) |
| KHJ-MC152-00 | Feeder rear-end gear set (located beneath the tail cover) |
| KHJ-MC163-00 | Rear mounting bracket for securing tail-end accessories |
| KHJ-MC1A0-00 | Feeder motherboard/control unit located near the tail section |
| KHJ-MC1B0-00 | Cable harness running through the tail section |
| KHJ-MC281-00 | Feeder handle (near or partially covered by the tail section) |
| KHJ-MC16Y-00 | Feeder waste recycling box (mounted close to the tail in many models) |

These part numbers are functionally or physically located near or beneath the KHJ-MC162-01 tail cover and may be involved in feeder protection, signal routing, or mechanical motion.

FAQ Guide — KHJ-MC162-01

SS8MM Feeder Tail Transparent Cover (Yamaha SMT Feeder Part)

1. What is the KHJ-MC162-01 used for?

It is a rear protective cover made of transparent plastic, mounted at the tail (rear) section of Yamaha SS8MM tape feeders, providing physical protection for internal components while allowing visual inspection without removal.

2. What makes it different from earlier versions?

Unlike earlier or opaque models, the KHJ-MC162-01 is transparent, enabling operators and technicians to check internal components visually (e.g., cable routing, gear engagement) without opening the cover.

3. Which feeders is it compatible with?

It is designed for Yamaha SS8MM series feeders, typically used with YS, YSM, and YG-series SMT machines.

4. What components are located under this cover?

Rear-end gear set (e.g., KHJ-MC152-00)
Cable harness (KHJ-MC1B0-00)
Feeder motherboard/control board (KHJ-MC1A0-00)
Optional feeder accessories such as KHJ-MC16Y-00 waste box

5. Does this cover require special tools for installation?

No. It is installed with standard Yamaha screws or clips, and removal/replacement is straightforward.

6. Why is transparency important?

Transparency allows:

Quick visual inspection for damage, misalignment, or debris
Less frequent disassembly, saving time during routine checks
Faster diagnostics when feeder issues occur

7. How do I know when to replace it?

Replace the cover if:

It becomes cracked, foggy, warped, or broken
It no longer fits securely or interferes with feeder operation
Internal components are no longer visible due to wear or staining

8. Can I use KHJ-MC162-01 on other feeder sizes (12mm, 16mm)?

No. This model is custom-fit for SS8MM feeders. Other feeder widths require size-specific tail covers.

9. Is the material ESD-safe?

Yes. The plastic is typically anti-static treated to meet ESD protection standards required in SMT environments.

10. Where can I purchase KHJ-MC162-01?

Available through authorized Yamaha SMT parts distributors, feeder service providers, or specialized SMT parts suppliers.
