KHJ-MC1A9-00 – Electric Feeder Communication Connector (No White Wire)
Communication Interface Connector for Yamaha Motorized Feeders

Overview

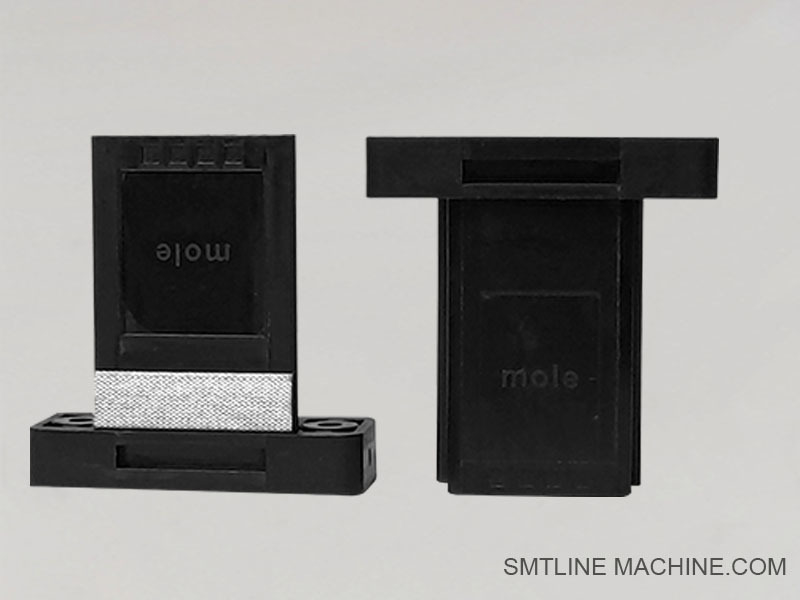

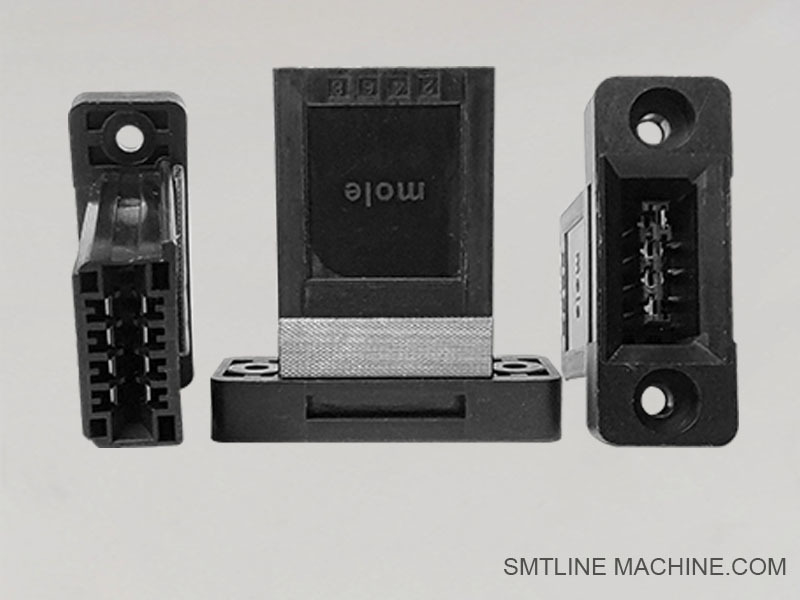

The KHJ-MC1A9-00 is a communication interface connector designed for use with Yamaha electric (motorized) feeders. It acts as the electrical link between the feeder and the placement machine, transmitting data and power signals to enable controlled feeding operation. This version does not include the white signal wire, which may be optional or unused in certain configurations.

Key Features
Part Number: KHJ-MC1A9-00
Application: Electric (motorized) feeders for Yamaha SMT systems
Function: Enables electrical communication between feeder and placement machine
Wire Configuration: No white wire included (used in some models, omitted in others)
Connector Type: Standard Yamaha feeder interface connector
Build Quality: High-reliability contacts with robust housing for industrial SMT use

Benefits
Ensures stable and accurate feeder-machine communication
Version without white wire is suitable for specific Yamaha system variants
Easy to install and replace as part of feeder maintenance
OEM part ensures full compatibility and signal integrity

Applications
Used with Yamaha electric (motor-driven) feeders
Compatible with YSM, YS, and YG series SMT machines
Applied where feeder logic and motor control are electronically managed via I/O ports

Summary
The KHJ-MC1A9-00 Communication Connector is a key interface component for Yamaha electric feeders, ensuring precise signal transmission between the machine and the feeder. This model excludes the white wire, making it suitable for specific wiring configurations or simplified applications.









Related Accessories – KHJ-MC1A9-00 Communication Connector

Notes:
This connector is typically installed at the feeder’s I/O communication point, linking the machine controller to the feeder logic board.
The white wire, commonly used for optional signals or diagnostics, is excluded in this version to suit specific wiring standards or configurations.













Related Part Numbers – KHJ-MC1A9-00

These part numbers work together as a subsystem to enable full electrical communication between Yamaha SMT machines and their motorized feeders.









FAQ Guide — KHJ-MC1A9-00
Electric Feeder Communication Connector (Without White Wire)
1. What is the KHJ-MC1A9-00 used for?
It is a signal and power interface connector for Yamaha electric (motorized) feeders, allowing communication between the feeder and the SMT placement machine.
2. What does "no white wire" mean?
The white wire typically carries an optional signal line (such as a feeder-ready status or ground reference). In this version, it is intentionally omitted, which is common for simplified or specific wiring configurations.
3. Which feeders use KHJ-MC1A9-00?
It is used in Yamaha SS-series electric feeders, such as SS8MM, SS12MM, etc., particularly those without the extra signal line requirement.
4. Can this connector be replaced individually?
Yes, it can be replaced separately as part of routine maintenance or repair without replacing the full harness or motherboard.
5. Does the lack of a white wire affect performance?
No, if your system is designed for this configuration, the absence of the white wire has no negative impact. Always verify compatibility with your specific machine and feeder model.
6. How is the connector attached?
It is typically connected to the feeder’s motherboard (KHJ-MC1A0-00) via the cable harness (KHJ-MC1B0-00) and secured with standard Yamaha mounting hardware or connector clips.
7. Is this part machine-side or feeder-side?
It is a feeder-side component that plugs into the machine’s feeder slot electrical interface.
8. What if I need a version with the white wire?
You would need to order a different part number (e.g., KHJ-MC1A9-01 or custom harness with full wire set). Confirm with Yamaha or your SMT supplier.
9. Where can I buy KHJ-MC1A9-00?
Available through authorized Yamaha SMT parts distributors, third-party feeder repair services, or SMT spare parts suppliers.
10. Any maintenance or inspection tips?
Inspect for bent or oxidized pins regularly
Do not pull wires directly; always grip the connector body
Ensure tight fit into the machine socket; loose connections can cause feeder communication errors
