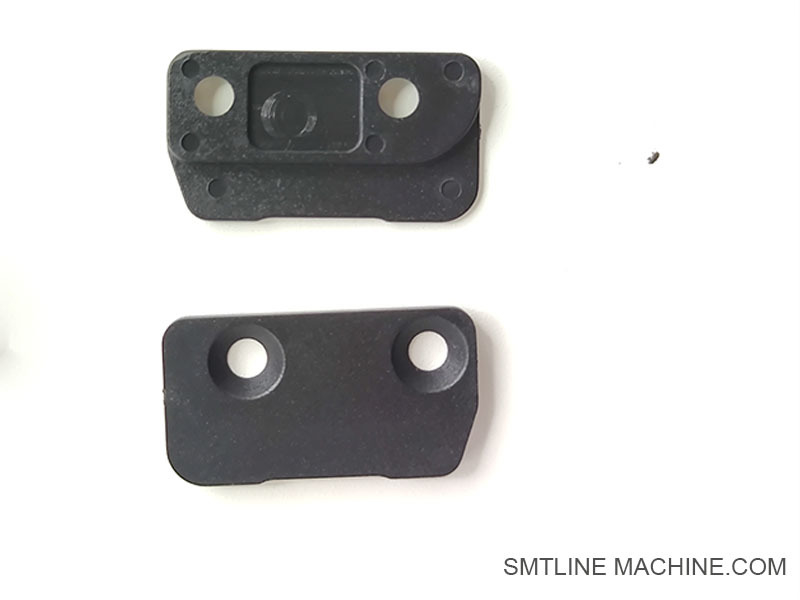

KHJ-MC28B-00 – SS12-72MM Steel Wire Rope Protection Cover

Steel Cable Guard for Yamaha SS Feeder Series (72mm Width)

Overview

The KHJ-MC28B-00 is a steel wire rope protection cover designed for use with Yamaha SS-series feeders, particularly the SS12-72MM model. It serves as a safety shield and mechanical guide for the internal wire rope or spring tensioning system within the feeder mechanism.

Key Features

Part Number: KHJ-MC28B-00
Applicable Feeder: Yamaha SS12-72MM
Function:

Protects the internal steel wire rope (cable) from dust, mechanical impact, and deformation
Ensures stable wire routing and prevents tangling or snagging during feeder operation
Adds structural integrity and improves long-term durability
Material: Stainless steel or treated spring steel with high wear resistance
Form Factor: Precision-shaped metal cover with mounting slots or tabs for easy integration

Benefits

Extended Feeder Life: Reduces mechanical stress and cable exposure
Enhanced Reliability: Maintains consistent wire tension and feeding precision
Low Maintenance: Resists corrosion and damage in high-speed, high-cycle environments
OEM Fit: Direct replacement for damaged or missing factory-installed covers

Typical Applications

Installed in Yamaha SS12-72MM tape feeders, used for component pickup in surface mount technology (SMT) lines
Essential for wire-driven feeder models using spring or cable tension mechanisms

Summary

The KHJ-MC28B-00 Steel Wire Rope Protection Cover is a crucial component for maintaining the safety, durability, and performance of Yamaha SS12-72MM feeders. It safeguards internal motion elements and ensures reliable feeding under high-speed SMT production demands.

Related Accessories – KHJ-MC28B-00 Steel Wire Rope Protection Cover

Notes:

These parts are key components of the Yamaha SS12 72mm feeder internal mechanism.
When replacing the protection cover, inspect the wire rope, pulleys, and springs for wear or looseness.
Use only genuine Yamaha OEM parts to maintain feeder accuracy and longevity.

Related Part Numbers – KHJ-MC28B-00 Steel Wire Rope Protection Cover

FAQ Guide — KHJ-MC28B-00

Steel Wire Rope Protection Cover for Yamaha SS12-72MM Feeder

1. What is the KHJ-MC28B-00?

It is a protective metal cover designed to shield the internal steel wire rope mechanism inside Yamaha’s SS12-72MM tape feeders. It prevents physical damage, contamination, and misrouting of the cable that controls the feeder’s motion.

2. Which Yamaha feeders use this part?

The KHJ-MC28B-00 is specifically used in SS12-type feeders with a 72mm tape width, commonly found in Yamaha high-speed SMT machines.

3. What does this cover protect?

It protects components such as:

The steel wire rope assembly (KHJ-MC25A-00)
The return spring (KHJ-MC26D-00)
The pulley guide (KHJ-MC23B-00)
These components form the internal motion control system that drives tape feeding.

4. What materials is it made from?

It is typically made from stainless steel or nickel-plated spring steel, offering corrosion resistance, rigidity, and durability for use in high-speed production environments.

5. What are signs that the protection cover needs replacement?

Bent, deformed, or broken cover
Rattling or loose fit
Wire rope exposure or abnormal wear
During a feeder overhaul or preventive maintenance

6. Is it user-replaceable?

Yes. It can be replaced by trained personnel. Simply remove the cover using appropriate tools (usually a small screwdriver), inspect internal parts, and install the new cover with original mounting screws.

7. Should I replace other parts along with the cover?

Yes, it's recommended to check and replace related components if worn:

KHJ-MC25A-00 – Steel wire rope
KHJ-MC26D-00 – Spring
KHJ-MC23B-00 – Pulley bracket
Also check alignment and smoothness of the feeder mechanism.

8. How often should it be inspected or maintained?

Visual inspection: Every 1–3 months, or during each feeder service cycle
Replace if cracked, bent, or interfering with cable movement
Clean regularly with lint-free cloth; avoid solvents unless specified

9. Does it affect feeding accuracy?

Yes. A damaged or loose cover may interfere with the wire rope's movement, leading to misfeeds, jerky tape motion, or component misplacement on the PCB.

10. Where can I buy KHJ-MC28B-00?

From authorized Yamaha SMT parts distributors or official Yamaha service centers. Use only genuine OEM parts for reliable performance and compatibility.
