KKE-M919F-00 Tank Chain

KKE-M919F-00 Tank Chain​

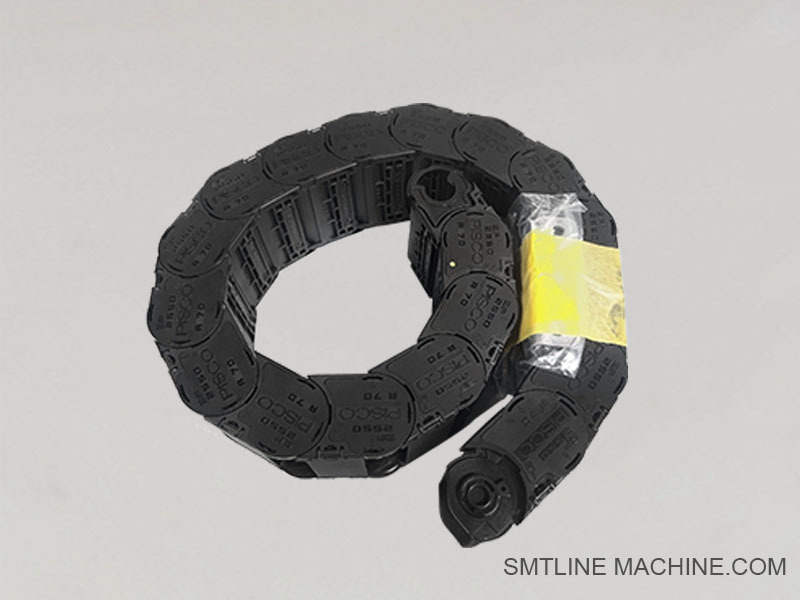

KKE-M919F-00 – Cable Drag Chain (Tank Chain)

For Yamaha SMT Equipment

Overview

The KKE-M919F-00 is a tank chain (also known as a cable drag chain or energy chain) used in Yamaha SMT machines to organize, protect, and guide cables and pneumatic tubes along the X, Y, or Z axes during high-speed motion. It prevents cable entanglement, reduces mechanical wear, and ensures consistent signal and air delivery to moving components.

Key Features

Part Number: KKE-M919F-00
Function: Cable and hose carrier for dynamic axis movement
Structure: Interlocking plastic chain links with a flexible yet durable design
Material: High-strength engineering plastic, wear-resistant, anti-static (in ESD models)
Opening Style: Snap-open or enclosed type depending on machine configuration
Routing: Supports electrical signal cables, power wires, and vacuum/air tubes
Mounting: Fixed at both ends with brackets; moves with the gantry or head

Applications

Installed in Yamaha pick-and-place machines such as YSM, YG, or YS series
Used in gantry systems, head units, or platform bases where flexible routing is required
Protects cables from bending, abrasion, and interference in high-speed environments

Benefits

Improves cable service life and reduces downtime due to cable failures
Enables clean, organized cable management
Supports smooth motion of moving assemblies in SMT production lines
Compatible with Yamaha factory routing layouts and maintenance guides

Maintenance Tips

Regularly inspect for cracks, stiffness, or broken links
Check for cable wear inside the chain
Clean with dry air or lint-free cloth—avoid oil or solvents unless specified

Summary

The KKE-M919F-00 tank chain is a reliable and durable cable drag chain that supports dynamic cable management in Yamaha SMT equipment. It enhances machine reliability by protecting vital electrical and pneumatic lines in motion-critical zones.

Related Accessories – KKE-M919F-00 Tank Chain

Notes:

Always use flex-rated cables and hoses inside the tank chain to prevent premature wear.
For long cable chains or high-speed motion, Yamaha recommends pre-bundled cable kits matched to the machine model and axis.
If the chain is being replaced, inspect and replace end brackets and clamp kits at the same time to avoid misalignment or slippage.

Related Part Numbers – KKE-M919F-00 Tank Chain

Notes:

Use only high-flex cables and tubes rated for drag chain use.
All parts listed above are typically used together for X/Y axis motion systems, head unit movement, or gantry cable routing in Yamaha SMT platforms.
Replace both tank chain and end brackets during a retrofit to ensure secure operation.

FAQ Guide — KKE-M919F-00 Tank Chain

For Yamaha YS/YSM/YG Series SMT Machines

1. What is the KKE-M919F-00?

The KKE-M919F-00 is a cable drag chain, also called a tank chain or energy chain, used to safely guide and protect moving cables and pneumatic tubes on Yamaha SMT equipment—commonly for the X, Y, or Z axis.

2. What does it do?

It routes and organizes multiple signal, power, and air lines between stationary and moving parts (like gantries or heads) while preventing tangling, wear, and breakage during machine operation.

3. Which Yamaha machines use it?

The tank chain is widely used in:

Yamaha YS12, YS24
YSM10, YSM20, YSM20R
YG12, YG200
And other SMT platforms with linear motion components

4. What cables and tubes go inside it?

Signal cables (e.g., KHJ-M9165-00, KHJ-M9166-00)
Power cables for servo motors (e.g., KHY-M9168-00)
Pneumatic tubing for vacuum and blow-off air
All must be drag-chain rated for flexing durability.

5. What accessories are needed with this chain?

Mounting brackets (e.g., KKE-M919F-10)
Cable clamps (KHJ-M919F-01)
Guide rails (KHY-M919F-00, optional)
These help secure and align the chain during high-speed travel.

6. Can I replace it myself?

Yes, but carefully:

Disconnect and label all cables/tubes
Remove mounting brackets
Transfer cables/tubes into new chain with proper spacing
Reinstall with correct bracket alignment
Confirm movement is smooth with no binding

7. What are signs of chain failure?

Broken links or cracked segments
Stiff movement or rattling during motion
Cable damage inside the chain
Frequent air or signal interruptions

8. Is there an anti-static (ESD-safe) version?

Yes. Use KKE-M919F-00-ESD if your machine or process requires electrostatic discharge protection.

9. How often should it be inspected?

Every 3–6 months in high-use environments
Replace immediately if stiffness, deformation, or cable wear is noticed
Always inspect during head or gantry servicing

10. Where can I get replacements?

Order from authorized Yamaha SMT parts distributors. Always use genuine parts to ensure correct fit, durability, and cable routing compliance.
