KHY-M7A13-01YS Scanning Camera Lamp Board Cover YS Scanning Camera White Plastic Cover

KHY-M7A13-01YS Scanning Camera Lamp Board Cover YS Scanning Camera White Plastic Cover

KHY-M7A13-01YS – YS Scanning Camera White Plastic Cover

Overview

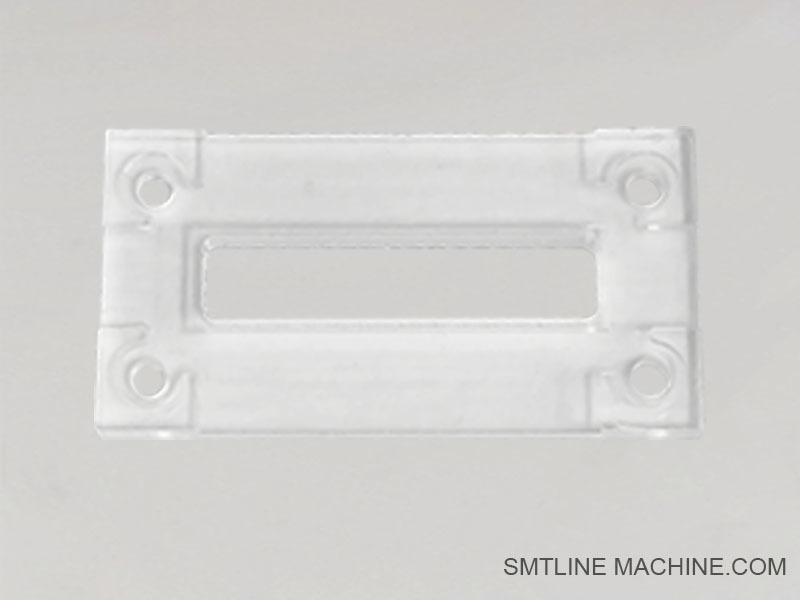

The KHY-M7A13-01YS is a protective plastic cover designed for the scanning camera lamp board on Yamaha YS-series SMT machines. It acts as a light shield and dust cover for the camera’s LED illumination system, ensuring consistent lighting performance and protecting sensitive optical components from contamination or mechanical damage.

Key Features

Part Number: KHY-M7A13-01YS
Description: Scanning Camera Lamp Board Cover
Material: High-transparency white ABS or polycarbonate plastic
Function:

Covers and protects the LED lighting module (lamp board) on the scanning camera
Shields internal optical components from dust and impact
Ensures uniform diffusion of light over the inspection area
Compatibility: Suitable for Yamaha YS-series machines (e.g., YS12, YS24, YS100)

Benefits

Improves Optical Stability: Maintains clean lighting for accurate image capture by the scanning camera
Easy Installation: Snaps or screws into place with precise alignment
Durable Material: Resistant to yellowing, heat, and chemical exposure
OEM Fit: Exact fit replacement for Yamaha factory-installed part

Typical Use Cases

Installed over the scanning/vision camera's lamp board to protect the light source
Replaced during camera module servicing, cleaning, or after damage to the original cover
Part of routine maintenance to ensure high-quality vision inspection in SMT production

Summary

The KHY-M7A13-01YS white plastic lamp board cover is an essential part of the vision system in Yamaha YS-series SMT equipment. It ensures stable illumination, optical protection, and mechanical durability, helping to maintain inspection accuracy and system longevity in high-speed assembly environments.

Related Accessories – KHY-M7A13-01YS (YS Camera Lamp Board Cover)

Notes:

These parts are usually installed together as part of the vision/inspection unit on Yamaha YS-series machines.
The plastic cover (KHY-M7A13-01YS) protects the KHY-M7A11-00 lamp board and assists in ensuring lighting consistency for component recognition.
Use genuine Yamaha parts to maintain optical calibration and mechanical integrity.

Related Part Numbers – KHY-M7A13-01YS (YS Scanning Camera Cover)

Notes:

These part numbers are all related to the YS-series vision system.
For repair or maintenance, Yamaha recommends replacing the cover, lamp board, and diffuser together to preserve light quality and alignment.
If your machine model differs slightly, please confirm with a BOM or head unit label.

FAQ Guide — KHY-M7A13-01YS

YS-Series Scanning Camera White Plastic Lamp Board Cover

1. What is KHY-M7A13-01YS?

It is a protective white plastic cover installed over the scanning camera’s LED lamp board on Yamaha YS-series machines. It shields the light source from dust, impact, and external interference while helping diffuse the light evenly across the camera's field of view.

2. Which machines use this part?

Yamaha YS12, YS24, YS100, and related models in the YS-series SMT platforms.
Mounted specifically on the vision camera unit or scanning assembly above the PCB conveyor.

3. What is the main function of this cover?

Protects the LED lamp board from dust, debris, and physical damage
Stabilizes light diffusion, helping ensure consistent camera illumination
Helps maintain optimal imaging quality for fiducial recognition, component inspection, and alignment tasks

4. What material is it made of?

It’s made from high-quality translucent white ABS or polycarbonate plastic, resistant to discoloration and temperature changes, with good optical diffusion properties.

5. What parts are usually replaced together with this cover?

KHY-M7A11-00 – LED Lamp Board
KHY-M7A12-00 – Diffuser plate or light guide
KHY-M7A10-00 – Scanning Camera Unit (if the camera is being serviced as a whole)
Fasteners or mounting screws if damaged or stripped

6. How do I know the cover needs replacement?

Scratches, cracks, or yellowing of the plastic
Inconsistent lighting or uneven camera images
During regular preventive maintenance or LED lamp board replacement

7. Is calibration required after replacement?

Not for the cover itself. However, if the lamp board or camera module is moved or replaced, re-calibration of the vision system may be required to maintain accuracy.

8. How is it installed?

Remove the old cover using a screwdriver or release tabs
Clean the lamp board and surrounding area
Install the new cover, ensuring it is correctly aligned and securely fixed
Check for even light diffusion across the camera view

9. Where can I buy genuine KHY-M7A13-01YS parts?

From authorized Yamaha SMT parts distributors or official Yamaha service centers. Use only OEM parts to ensure proper optical and mechanical performance.

Physical warehouse,
fast delivery
after-sales support
providing door-to-door transportation services
price advantages,
offering a full range of SMT dip equipment and accessories
