KLJ-MC10W-00 ZS8-72MM Feida Front End Fixed Iron Block – Product Introduction

Overview

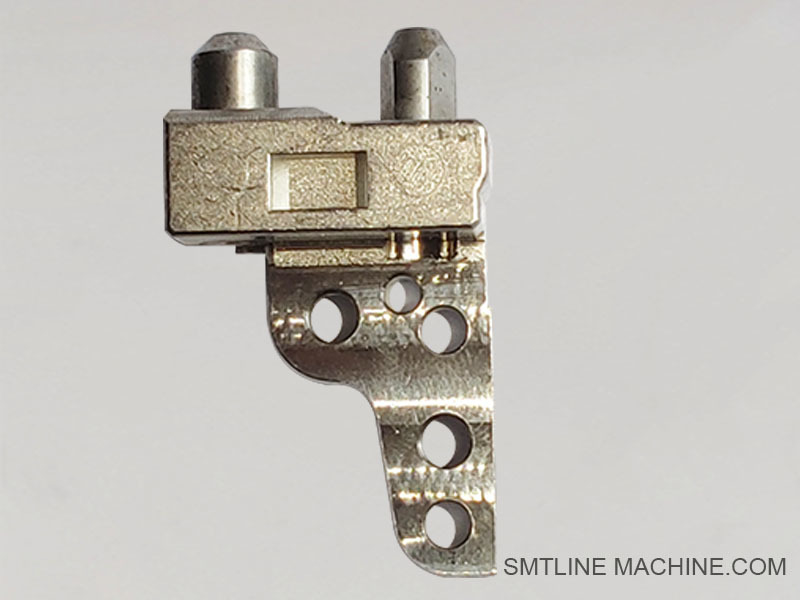

The KLJ-MC10W-00 is a front end fixed iron block designed for Yamaha / Feida SMT feeders supporting tape widths from 8mm to 72mm (ZS8-72MM). This component serves as a structural fixture at the front end of the feeder, providing rigidity and precise positioning for the tape feeding path.

Key Features

Model Number: KLJ-MC10W-00
Applicable Tape Width: 8mm to 72mm tape feeders
Material: High-quality iron or steel alloy for durability and stability
Function:

Secures the front end of the feeder assembly
Maintains precise alignment of tape during feeding
Helps reduce mechanical vibration and ensures consistent tape movement
Compatibility: Fits Yamaha SS/YS series feeders and related Feida feeders within the specified tape width range.

Applications

Used in Yamaha and Feida SMT feeders to stabilize the feeder’s front end
Provides mounting and alignment support for feeder tape guides and sensors
Essential for ensuring smooth, reliable tape feeding and accurate component placement on SMT lines

Maintenance Tips

Regularly inspect for wear, deformation, or corrosion which can affect tape alignment
Replace promptly if any damage is found to maintain feeder performance
Ensure secure fastening during installation to prevent feeder vibration or misalignment

Summary

The KLJ-MC10W-00 ZS8-72MM Front End Fixed Iron Block is a critical mechanical part for Yamaha/Feida SMT feeders, providing robust front-end support for feeders handling tape widths from 8mm to 72mm. It enhances feeder stability and accuracy, contributing to the smooth operation of SMT pick-and-place machines.

Related Accessories for KLJ-MC10W-00 Front End Fixed Iron Block

1. Feeder Tape Guides and Rails

Upper and lower tape guides that align the component tape precisely during feeding.

2. Feeder Sensor Assemblies

Tape presence sensors, tape end sensors, and component detection sensors mounted near the front end.

3. Feeder Motor and Drive Components

Motor assemblies and drive gears that advance the tape, controlled by the motherboard.

4. Feeder Cover Plates and Protective Housings

Protective covers that shield the front end iron block and internal components from dust and damage.

5. Mounting Screws, Bolts, and Fasteners

Hardware needed to securely attach the iron block to the feeder body.

6. Front End Fixed Blocks for Different Tape Widths

Alternative or spare fixed iron blocks designed for narrower or wider tape widths if applicable.

7. Feeder Base Frame / Main Body

The larger structure to which the front end block attaches, forming the complete feeder assembly.

Related Part Numbers – KLJ-MC10W-00 Front End Fixed Iron Block and Accessories

Notes:

Exact part numbers can vary with feeder and machine models.
Genuine Yamaha/Feida parts are recommended for compatibility and durability.
Provide your specific machine or feeder model for more precise BOM matching.

FAQ Guide — KLJ-MC10W-00 Front End Fixed Iron Block

1. What is the KLJ-MC10W-00 used for?

It is the front end fixed iron block that provides structural support and alignment for Yamaha/Feida SMT feeders handling 8mm to 72mm tape widths.

2. Which feeders is it compatible with?

Compatible with Yamaha SS and YS series feeders and related Feida feeders supporting tape widths from 8mm to 72mm.

3. What material is the iron block made of?

Made of high-quality iron or steel alloy designed for durability and mechanical stability.

4. How do I know if the iron block needs to be replaced?

Signs include visible wear, deformation, corrosion, or if tape feeding alignment issues occur during operation.

5. Can I install this part myself?

Yes, with proper tools and care. Make sure to follow your machine’s maintenance manual to ensure correct installation and torque specs.

6. Are there any common issues caused by a faulty front end fixed iron block?

Misalignment of the tape, frequent tape jams, inconsistent feeding, and mechanical vibrations.

7. Where can I source genuine replacement parts?

From authorized Yamaha/Feida parts distributors or your SMT equipment supplier. Always verify part numbers before purchase.

8. Are there maintenance tips to prolong the life of this part?

Regular cleaning, avoiding mechanical shocks, and routine inspection for damage or corrosion.
