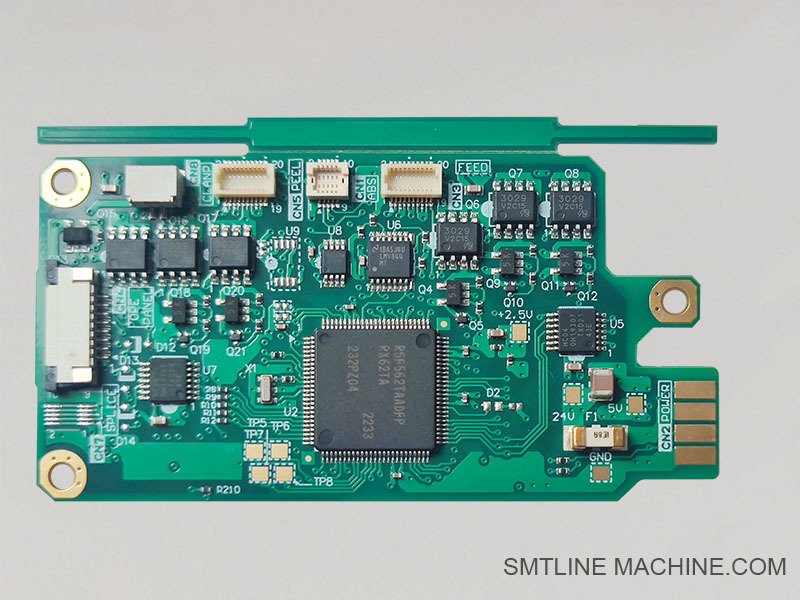

KLJ-M4488-A0 ZS8MM-72MM Motherboard – Product Introduction
Overview
The KLJ-M4488-A0 is a motherboard/control board designed for Yamaha / Feida SMT feeders supporting 8mm to 72mm tape widths (ZS8MM-72MM). This board serves as the electronic control center for the feeder, managing tape feeding, sensor input, and communication with the pick-and-place machine.
Key Features
Model Number: KLJ-M4488-A0
Applicable Tape Widths: 8mm up to 72mm tape feeders
Functionality:
Controls feeder motor operation
Processes sensor signals (tape presence, tape end, component detection)
Interfaces with SMT machine controller for synchronized feeding
Compatibility: Compatible with Yamaha YS and SS series feeders and related Feida feeders supporting multiple tape widths.
Construction: High-quality PCB with integrated connectors for sensors, motors, and machine communication.
Applications
Used in Yamaha and Feida SMT electric feeders for automated tape feeding
Supports multi-width feeder operation (8mm–72mm), making it versatile for different component sizes
Critical for ensuring accurate tape advance and placement synchronization on SMT lines
Selection & Maintenance Tips
Confirm your feeder’s tape width and model compatibility before replacement.
Use genuine parts to ensure stable feeder performance and machine communication.
Avoid exposure to moisture or static to prevent PCB damage.
For troubleshooting feeding issues, check sensor connections and replace motherboard if faulty.
Summary
The KLJ-M4488-A0 ZS8MM-72MM motherboard is a vital electronic control board for Yamaha/Feida feeders, ensuring precise feeder motor control and sensor processing for tape widths ranging from 8mm to 72mm. It supports efficient and reliable operation on SMT pick-and-place machines.










Related Accessories for KLJ-M4488-A0 Motherboard
1. Feeder Motor Assembly
Drives tape feeding mechanism controlled by the motherboard.
2. Feeder Sensors
Tape end sensor
Component presence sensor
Tape jam sensor
3. Feeder Cable Harness
Connects the motherboard to the motor, sensors, and SMT machine controller.
4. Feeder Power Connector
Provides power supply interface for the motherboard.
5. Feeder Cover Plate / Protective Housing
Protects the motherboard and associated electronics from dust and mechanical damage.
6. Feeder Tape Guides and Rails
Ensures proper tape alignment during feeding.
7. Replacement Screws and Mounting Hardware
For securing the motherboard and other components.
8. Backup / Replacement Motherboard
Genuine KLJ-M4488-A0 or compatible boards for quick swap in case of failure.









Related Part Numbers – KLJ-M4488-A0 Motherboard and Accessories

Notes:
Actual part numbers can vary depending on your feeder or machine model.
For best performance, always use genuine Yamaha/Feida parts.
If you provide your exact machine or feeder model, I can help with a more accurate BOM list.







FAQ Guide — KLJ-M4488-A0 ZS8MM-72MM Motherboard
1. What is the KLJ-M4488-A0 motherboard used for?
It’s the main control board for Yamaha/Feida feeders handling tape widths from 8mm up to 72mm, managing feeder motor control and sensor signals.
2. Which feeder models is it compatible with?
Compatible with Yamaha SS and YS series feeders and Feida feeders that support tape widths ranging between 8mm and 72mm.
3. What are common symptoms of motherboard failure?
Tape feeding errors, feeder motor not running, sensors not responding, or communication errors with the SMT machine controller.
4. How can I troubleshoot feeder issues related to this motherboard?
Check all cable connections and sensor wiring for secure contact. Inspect for visible damage or burnt components on the motherboard. Replace if malfunction is confirmed.
5. Can I replace the motherboard myself?
Yes, with proper care and following your machine’s service manual instructions. Ensure power is off and grounded to prevent static damage.
6. Are there recommended spare parts related to this motherboard?
Yes, spare sensors, cables, and motors are recommended to keep on hand for quick maintenance.
7. Where can I get genuine replacement motherboards?
From authorized Yamaha/Feida parts distributors or your SMT equipment supplier. Always verify part numbers before purchasing.
8. Is firmware or software update required after replacement?
Typically not required, but check your machine’s maintenance manual or contact support for firmware compatibility.
