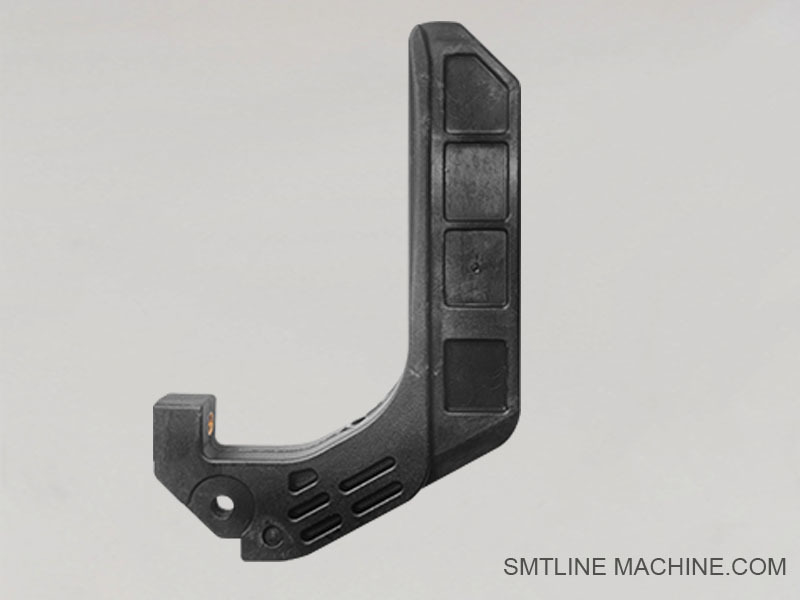

KLJ-MC181-00ZS8MM Feeder Handle – Product Introduction

Overview

The KLJ-MC181-00ZS8MM is a feeder controller handle specifically designed for 8mm electric feeders used in Yamaha SS and YS series SMT machines. It serves as a key operating component for feeder manipulation, allowing for efficient manual handling, mounting, and adjustments during SMT production.

Key Features

Product Name: Feeder Controller Handle
Model Number: KLJ-MC181-00ZS8MM
Feeder Compatibility: Suitable for 8mm width Yamaha YS/SS series electric feeders
Material: High-strength plastic or metal construction for durability and frequent use
Function: Used to manually grip, control, and adjust the feeder on SMT placement machines

Application Scenarios

Feeder Installation/Removal: Enables easy and secure handling of the feeder during setup and replacement.
Feeder Maintenance and Debugging: Useful for troubleshooting feeding errors, alignment, and cleaning processes.
SMT Production Lines: Designed for frequent operations in high-speed automated pick-and-place environments.

Selection Tips

1. Check Tape Width Compatibility: Ensure your feeder is for 8mm carrier tape, as this handle is designed specifically for that size.
2. Match Feeder Model: Compatible with Yamaha YS/SS electric feeders (e.g., YS12, SS8, YS24).
3. Verify Original Part Number: Always match the part number with your feeder for proper fitment and performance.
4. Source from Authorized Suppliers: For reliable quality and after-sales support, purchase from certified SMT component vendors.

Conclusion

The KLJ-MC181-00ZS8MM feeder controller is an essential accessory for Yamaha SMT machines using 8mm electric feeders. It improves handling efficiency, ensures operational stability, and enhances the user experience during SMT production and maintenance processes.

If you need further information such as 3D drawings, dimensions, or replacement alternatives, feel free to share your specific machine model.

Related Accessories for KLJ-MC181-00ZS8MM Feeder Handle

1. Feeder Main Body / Electric Feeder

Model Examples:

KHJ-MC400-00 / KHJ-MC100-00 – Yamaha 8mm electric feeder
KHJ-MC181-000 – Matching 8mm feeder body
Function: The controller handle is mounted on this body for feeder control.

2. Feeder Cover Plate / Upper Guide

Part No.: Varies by feeder model (e.g., KHJ-MC115-00)
Function: Holds the tape in position; ensures correct component feed path.

3. Feeder Tape Guide / Lower Guide Rail

Used For: Supporting the carrier tape from the bottom
Common Part No.: Depends on feeder version; typically paired with upper guide.

4. Feeder Sensor Components

Examples:

Tape End Sensor
Component Presence Sensor
Purpose: Detects tape status and controls feed timing.

5. Feeder Drive Gear / Motor Assembly

Electric Motor Unit (e.g., for SS/YS feeders)
Motor Cover / Coupler Gear
Function: Powers the tape advance mechanism.

6. Spring Set / Tension Assembly

Includes: Return spring, torsion spring for handle reset
Function: Ensures smooth movement and automatic reset of the handle.

7. Feeder Locking Pin / Mounting Lever

Function: Locks the feeder securely on the pick-and-place machine.

8. Feeder Handle Fixing Screws / Bushings

Function: Securely fasten the handle to the feeder base
Material: Stainless steel or anti-static treated materials

Related Part Numbers – For KLJ-MC181-00ZS8MM Feeder Handle

Notes:

Actual part numbers may vary depending on your SMT machine model (e.g., YSM10, YS24) or the feeder version (SS, ZS).
These part numbers are commonly used for Yamaha / Feida original feeders and may include spare and maintenance kits.
Matching the correct part number is critical for proper mechanical and electrical compatibility.

FAQ Guide — KLJ-MC181-00ZS8MM Feida Feeder Handle

1. What machines is this feeder handle compatible with?

Compatible with Yamaha / Feida 8mm electric feeders, mainly SS and YS series feeders used on SMT pick-and-place machines such as YSM10, YS24, and related models.

2. Can this handle be used for feeders with tape widths other than 8mm?

No, this handle is specifically designed for 8mm tape feeders. Using it on other widths (12mm, 16mm, etc.) is not recommended and may cause improper fit or damage.

3. How do I install or replace the feeder handle?

Typically, the handle attaches with screws or clips to the feeder body. Refer to the machine’s feeder maintenance manual for exact procedures. Ensure the handle is firmly secured to avoid operational issues.

4. What material is the handle made of? Is it durable?

Usually constructed from high-strength plastic or metal alloy, designed to withstand frequent manual operation and provide long-lasting service in a production environment.

5. The handle feels loose or wobbly — what should I do?

Check for worn or missing mounting screws or bushings. Tighten screws and replace any damaged parts. If the handle is damaged, replace it with a genuine KLJ-MC181-00ZS8MM part to ensure proper function.

6. Are spare parts or replacement kits available?

Yes, related parts such as springs, screws, and locking pins are available. It is recommended to purchase genuine parts to maintain machine performance and reliability.

7. Can I use third-party or generic feeder handles?

While some third-party parts may fit, using genuine Yamaha/Feida parts is advised for guaranteed compatibility, durability, and to avoid damaging the feeder or machine.

8. Who do I contact for technical support or parts ordering?

Contact your SMT equipment supplier or authorized Yamaha/Feida parts distributor. Provide your machine and feeder model numbers along with the part number KLJ-MC181-00ZS8MM for accurate assistance.
