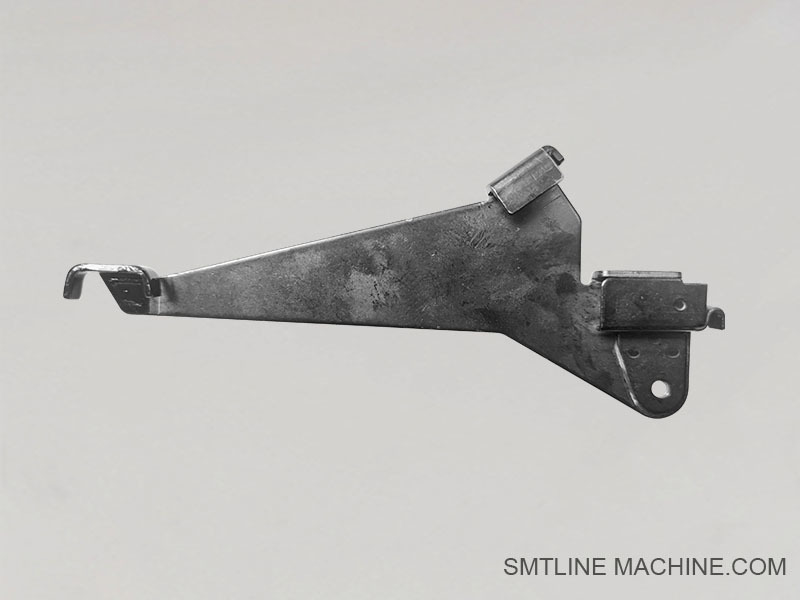

Product Introduction – KLJ-MC18K-00

Rear Metal Pull Handle for Yamaha ZS-Series Feeders (8mm–72mm)

Overview

The KLJ-MC18K-00 is a rear-mounted metal pull handle designed for Yamaha ZS-series SMT feeders with tape widths ranging from 8mm to 72mm. This robust handle is mounted at the tail end of the feeder and is used for manual gripping, pulling, and positioning the feeder during loading or unloading from pick-and-place machines.

Key Features

Compatible with ZS 8mm–72mm feeders
Made of high-strength metal for durability and long-term use
Provides a firm and ergonomic grip for easy handling
Helps with safe removal and insertion of feeders into the machine
OEM part ensures perfect fit and mechanical stability

Applications

This pull handle is installed at the rear (tail) section of Yamaha ZS-series feeders. It supports operator handling and contributes to safer and quicker feeder exchanges during SMT production.

Compatible Models

Yamaha ZS Feeders:

KW1-M4500-011 (8mm)
KW1-M4500-015 (12mm)
KW1-M4500-035 (16mm)
KW1-M4500-045 (24mm)
KW1-M4500-055 (32mm)
KW1-M4500-065 (44mm)
KW1-M4500-075 (56mm)
KW1-M4500-085 (72mm)

Related Accessories – KLJ-MC18K-00

(Rear Metal Pull Handle for Yamaha ZS 8–72mm Feeders)

1. ZS Feeder Main Bodies (Compatible with Handle)

The pull handle is mounted to the tail section of the following ZS feeders:

KW1-M4500-011 — ZS 8mm feeder
KW1-M4500-015 — ZS 12mm feeder
KW1-M4500-035 — ZS 16mm feeder
KW1-M4500-045 — ZS 24mm feeder
KW1-M4500-055 — ZS 32mm feeder
KW1-M4500-065 — ZS 44mm feeder
KW1-M4500-075 — ZS 56mm feeder
KW1-M4500-085 — ZS 72mm feeder

2. Mounting Screws / Fixing Hardware

To install or replace the handle securely:

91312-03004 — M3 mounting screw
KGS-M3696-00 — Spring clip or locking tab (for some versions)

3. Feeder Tail Cover (mounted near the handle)

KLJ-MC56Y-00 / KLJ-MC561-00 — Tail cover for 32–72mm
KLJ-MC26Y-00 / KLJ-MC261-00 — Tail cover for 12–24mm
KLJ-MC46Y-00 — ZS 8mm/24mm tail cover
KLJ-MC1A2-00 — PCB box motor protection cover

4. Feeder Handle (Front Grip)

Used together with the rear pull handle for full feeder grip support:

KLJ-MC281-00 — Main front handle for ZS feeders

Related Part Numbers – KLJ-MC18K-00

(Rear Metal Pull Handle for ZS-Series Feeders)

Main Handle Part

KLJ-MC18K-00 — Rear metal pull handle for ZS 8mm–72mm feeders

Compatible Feeder Body Part Numbers

These feeders are compatible with the KLJ-MC18K-00 handle:

KW1-M4500-011 — ZS 8mm feeder
KW1-M4500-015 — ZS 12mm feeder
KW1-M4500-035 — ZS 16mm feeder
KW1-M4500-045 — ZS 24mm feeder
KW1-M4500-055 — ZS 32mm feeder
KW1-M4500-065 — ZS 44mm feeder
KW1-M4500-075 — ZS 56mm feeder
KW1-M4500-085 — ZS 72mm feeder

Mounting Accessories

91312-03004 — M3 mounting screw (for fixing handle)
KGS-M3696-00 — Spring lock/clip (if used with the mounting bracket)

Related Components Often Used Together

KLJ-MC56Y-00 / KLJ-MC561-00 — Feeder rear tape guide cover (for 32–72mm)
KLJ-MC281-00 — ZS feeder front handle
KLJ-MC1A2-00 — Motor/PCB box protection cover

FAQ Guide – KLJ-MC18K-00

(Rear Metal Pull Handle for Yamaha ZS 8–72mm SMT Feeders)

1. What is the purpose of the KLJ-MC18K-00 handle?

This rear pull handle allows operators to easily grip, insert, and remove Yamaha ZS feeders from SMT machines. It provides mechanical leverage and handling support, especially during frequent feeder exchanges.

2. Which feeders is it compatible with?

It is designed for Yamaha ZS-series feeders, including:

8mm to 72mm tape width models
Part numbers: KW1-M4500-011 ~ KW1-M4500-085

3. Is this handle necessary for ZS feeder operation?

While not electrically required, it is essential for ergonomic and safe manual operation, reducing the chance of feeder drop or damage during handling.

4. How is it installed?

The handle is typically fixed to the rear of the feeder using M3 screws (e.g., 91312-03004). Some versions may also use a locking spring or clip (e.g., KGS-M3696-00).

5. Is it compatible with older SS or FT feeders?

No. The KLJ-MC18K-00 is specifically designed for Yamaha ZS-series feeders and is not interchangeable with SS, FT, or other feeder series.

6. Can the handle be reused on different feeders?

Yes, as long as the feeder is a ZS-series type. The same handle part number is compatible across 8mm to 72mm ZS models.

7. What material is the KLJ-MC18K-00 made from?

It is constructed from sturdy, corrosion-resistant metal, suitable for industrial environments and frequent operation.

8. What are signs the handle needs replacement?

Bent or deformed shape
Rust or corrosion (rare but possible)
Loose or stripped mounting points
Cracking or fatigue from repeated force

9. Does replacing the handle affect feeder performance?

No. It is a mechanical support part only. It does not influence motor, feeding, or calibration functions.

10. Where can I get KLJ-MC18K-00 or its accessories?

Available from Yamaha authorized SMT parts distributors or trusted third-party suppliers. Always verify part numbers before ordering.
