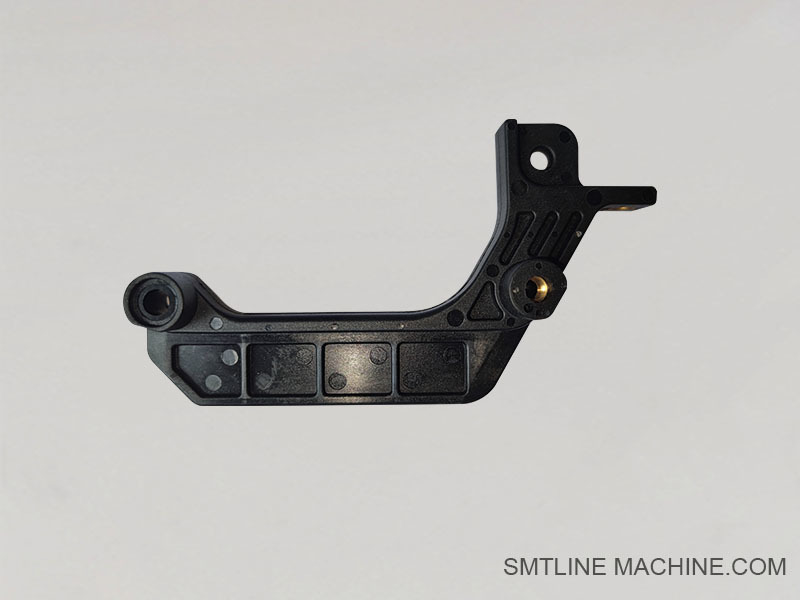

KLJ-MC281-00ZS 12-72MM Feida Handle

KLJ-MC56Y-00KLj-MC561-00 ZS 32MM-72MM Feeder Tail

Product Introduction – KLJ-MC281-00

ZS Series 12–72mm Feeder Handle for Yamaha SMT Feeders

Overview

The KLJ-MC281-00 is a genuine Yamaha feeder handle designed to fit ZS series feeders ranging from 12mm to 72mm tape widths. It provides an ergonomic grip for easy insertion, removal, and handling of SMT feeders during machine setup and maintenance.

Key Features

Compatible with Yamaha ZS feeders in the 12–72mm range
Ergonomic design for comfortable and secure grip
Made from durable, impact-resistant plastic
Ensures safe handling and prevents accidental drops or damage
OEM quality for precise fit and durability

Applications

Used as the primary handle for operators to install, remove, and transport ZS feeders safely and efficiently within Yamaha pick-and-place machines.

 Compatible Models

Yamaha ZS feeders of widths: 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, and 72mm

Related Accessories – KLJ-MC281-00 (ZS Feeder Handle)

1. ZS Feeder Main Body (12–72mm Range)

Handles are mounted directly on ZS series feeders of various widths:

KW1-M4500-015 — ZS 12mm feeder
KW1-M4500-035 — ZS 16mm feeder
KW1-M4500-045 — ZS 24mm feeder
KW1-M4500-055 — ZS 32mm feeder
KW1-M4500-065 — ZS 44mm feeder
KW1-M4500-075 — ZS 56mm feeder
KW1-M4500-085 — ZS 72mm feeder

2. Mounting Screws / Pins

Used to attach the handle securely to the feeder:

91312-03004 — M3 screws commonly used in Yamaha feeder parts
KGS-M3696-00 — Clip or locking spring for handle assembly (if applicable)

3. Feeder Frame or Bracket

The structural part of the feeder where the handle is installed; reinforced for weight support during lifting.

4. Label Plate or ID Tag Slot

Some handles come with integrated spaces for feeder ID tags or barcodes.

5. Protective Rubber Grip (Optional)

Depending on the version, some handles may use a rubberized or textured sleeve to improve grip and reduce slipping.

Related Part Numbers – KLJ-MC281-00 (ZS Feeder Handle)

Main Part

KLJ-MC281-00 — Handle for Yamaha ZS-series feeders (12mm–72mm)

Compatible Feeder Models

These feeder body part numbers match the handle across various tape widths:

KW1-M4500-015 — ZS 12mm Feeder
KW1-M4500-035 — ZS 16mm Feeder
KW1-M4500-045 — ZS 24mm Feeder
KW1-M4500-055 — ZS 32mm Feeder
KW1-M4500-065 — ZS 44mm Feeder
KW1-M4500-075 — ZS 56mm Feeder
KW1-M4500-085 — ZS 72mm Feeder

Mounting & Supporting Components

91312-03004 — M3 Mounting Screws (commonly used for feeder parts)
KGS-M3696-00 — Spring Clip / Lock for securing handle (if applicable)
KLJ-MC282-00 — Handle Positioning Bracket (if required for certain versions)

FAQ Guide – KLJ-MC281-00

(Feeder Handle for Yamaha ZS 12mm–72mm Feeders)

1. What is the function of the KLJ-MC281-00 handle?

It provides a secure grip for operators to easily lift, install, or remove Yamaha ZS-series feeders from SMT machines. It enhances handling safety and improves workflow efficiency.

2. Which feeders is this handle compatible with?

This handle is designed for use with Yamaha ZS series feeders in the following widths:

12mm, 16mm, 24mm, 32mm, 44mm, 56mm, and 72mm
(Examples: KW1-M4500-015, KW1-M4500-085)

3. Is it compatible with both electric and pneumatic feeders?

It is specifically for Yamaha ZS electronic feeders. It may not fit older or pneumatic feeder types.

4. How is the handle installed?

It is usually mounted using standard M3 screws (e.g., 91312-03004) or clips like KGS-M3696-00, depending on the feeder model. Installation is simple and can be done with basic tools.

5. Does the handle come with mounting hardware?

No, the handle is typically sold separately, and mounting accessories must be purchased individually if not already included with the feeder.

6. What materials is the handle made of?

The handle is made from durable plastic or composite material to withstand frequent use while remaining lightweight.

7. Can this handle fit non-Yamaha feeders?

No, it is custom-designed for Yamaha ZS feeders. Using it with other brands or models is not recommended.

8. What are signs the handle should be replaced?

Cracks or visible damage
Loose fit or instability when carrying the feeder
Deformation from heat, chemicals, or impact

9. How can I order replacement parts?

Order through authorized Yamaha SMT parts distributors or reliable third-party SMT suppliers. Always confirm compatibility by part number.

10. Is there a difference between KLJ-MC281-00 and KLJ-MC282-00?

Yes — KLJ-MC282-00 may refer to a related bracket or support part used in conjunction with the handle, not the handle itself.
