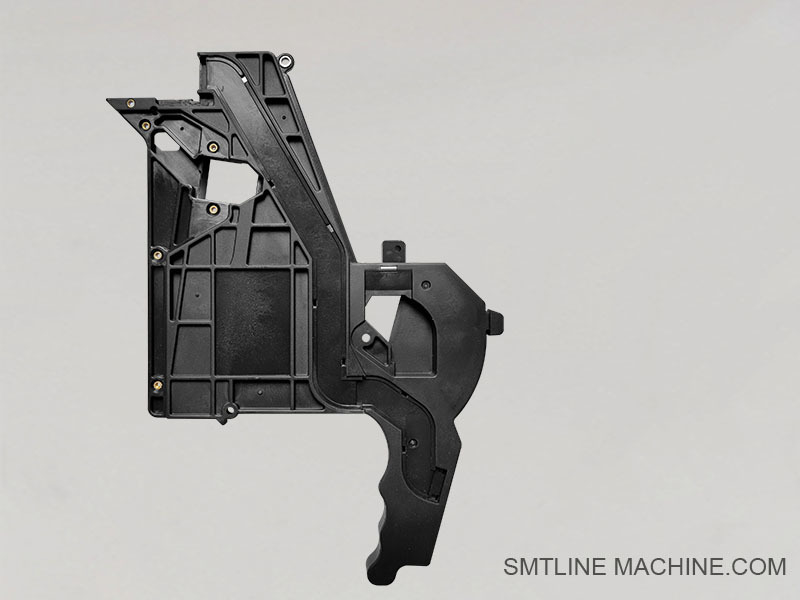

KLJ-MC56Y-00KLj-MC561-00 ZS 32MM-72MM Feeder Tail

KLJ-MC56Y-00KLj-MC561-00 ZS 32MM-72MM Feeder Tail

Product Introduction – KLJ-MC56Y-00 / KLJ-MC561-00

ZS Series 32–72mm Feeder Tail Cover / Top Tape Box for Yamaha SMT Equipment

Overview

KLJ-MC56Y-00 and KLJ-MC561-00 are feeder tail covers (also referred to as top tape boxes) specifically designed for Yamaha ZS series feeders in the 32mm to 72mm tape width range. These parts play a vital role in ensuring the proper guidance and ejection of cover tape after it has been peeled from the carrier tape.

Key Features

Designed for wide-format ZS feeders (32–72mm)
Assists in smooth and accurate tape peeling
Constructed from durable, lightweight plastic
Direct-fit with no modification needed
Ensures stable cover tape flow, reducing the risk of tape jams or machine errors

Applications

Mounted on the rear section of ZS-series feeders (32mm to 72mm), these tail covers are critical for feeding components with wider tape formats in high-speed pick-and-place operations.

Compatible Models

Yamaha ZS Series Feeders:

KW1-M4500-055 – 32mm
KW1-M4500-065 – 44mm
KW1-M4500-075 – 56mm
KW1-M4500-085 – 72mm

Related Accessories – KLJ-MC56Y-00 / KLJ-MC561-00 (ZS 32–72mm Feeder Tail)

1. Compatible Feeders

KW1-M4500-055 — ZS 32mm feeder
KW1-M4500-065 — ZS 44mm feeder
KW1-M4500-075 — ZS 56mm feeder
KW1-M4500-085 — ZS 72mm feeder

2. Tape Guide Plate

Directs the cover tape toward the tail cover after peeling
Example: KLJ-MC57T-00 (for 32–72mm widths)

3. Peel-off Roller Assembly

Ensures smooth peeling of cover tape
Example: KLJ-MC58R-00

4. Spring Lock / Hinge Clip

Locks the tail cover in place on the feeder body
Example: KGS-M3696-00

5. Mounting Screws or Pins

For fastening the tail cover securely
Example: 91312-03004 (M3 screw)

6. Cover Tape Ejection Guide

Helps route the peeled cover tape away from the feeder
Example: KLJ-MC59G-00

Related Part Numbers – KLJ-MC56Y-00 / KLJ-MC561-00 (ZS 32–72mm Feeder Tail)

Main Tail Covers

KLJ-MC56Y-00 — ZS 32–72mm Feeder Tail Cover (Top Tape Box)
KLJ-MC561-00 — Alternate model or variant of the above tail cover (same application)

Compatible Feeders

KW1-M4500-055 — ZS Feeder 32mm
KW1-M4500-065 — ZS Feeder 44mm
KW1-M4500-075 — ZS Feeder 56mm
KW1-M4500-085 — ZS Feeder 72mm

Related Accessories

KLJ-MC57T-00 — Tape Guide Plate (for 32–72mm feeders)
KLJ-MC58R-00 — Peel-off Roller Assembly
KGS-M3696-00 — Spring Lock / Clip
91312-03004 — M3 Mounting Screw
KLJ-MC59G-00 — Rear Tape Ejection Guide Plate

FAQ Guide – KLJ-MC56Y-00 / KLJ-MC561-00

(ZS Series 32–72mm Feeder Tail Cover / Top Tape Box)

1. What is the purpose of the KLJ-MC56Y-00 and KLJ-MC561-00 tail covers?

They protect and guide the peeled cover tape at the rear of Yamaha ZS feeders in the 32mm to 72mm tape width range, preventing tape jams and ensuring smooth tape ejection.

2. Which Yamaha feeder models are compatible with these tail covers?

Compatible with Yamaha ZS feeders:

KW1-M4500-055 (32mm)
KW1-M4500-065 (44mm)
KW1-M4500-075 (56mm)
KW1-M4500-085 (72mm)

3. What is the difference between KLJ-MC56Y-00 and KLJ-MC561-00?

They serve the same function; the KLJ-MC561-00 may be a later revision or alternative version depending on supplier stock or regional distribution.

4. Is the tail cover easy to replace?

Yes. It usually attaches with snap-fit clips or screws, allowing replacement without removing the feeder from the machine.

5. What causes wear or damage to the tail cover?

Repeated friction from tape movement, dust accumulation, or rough handling during tape loading/unloading can cause cracks or deformation.

6. Can the feeder operate without a tail cover?

It is not recommended, as missing tail covers can cause tape jams, misfeeds, and potential machine errors.

7. Are accessories like the peel-off roller or locking clips replaceable?

Yes. These components are serviceable and can be replaced individually if worn.

8. How do I know when to replace the tail cover?

Signs include visible cracks, loose fit, difficulty in tape peeling, or frequent tape jams.

9. Where can I purchase KLJ-MC56Y-00 or KLJ-MC561-00?

Through authorized Yamaha distributors or certified SMT parts suppliers.

10. Is calibration required after replacing the tail cover?

No calibration is typically needed, but verify tape feeding performance after replacement.
