Product Introduction – KLJ-MC46Y-00

ZS Series 24mm Feeder Tail Cover / Top Tape Box for Yamaha SMT Machines

Overview

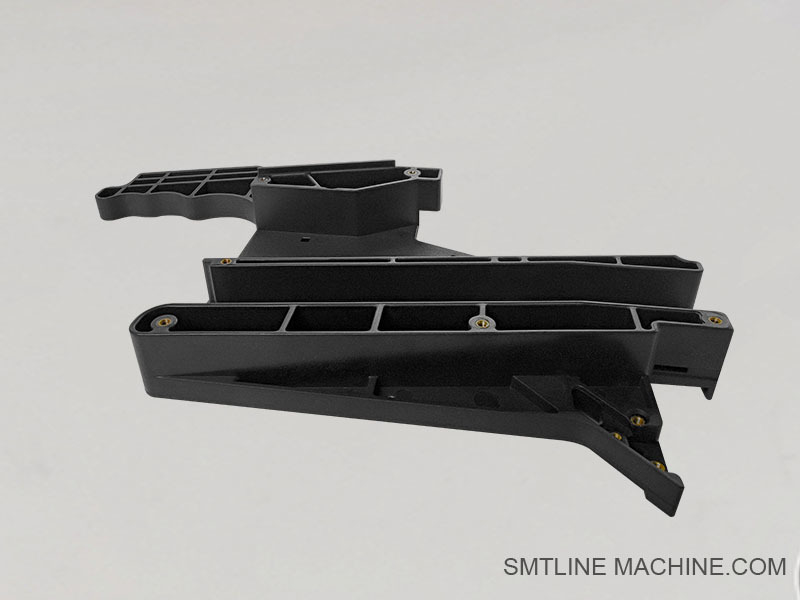

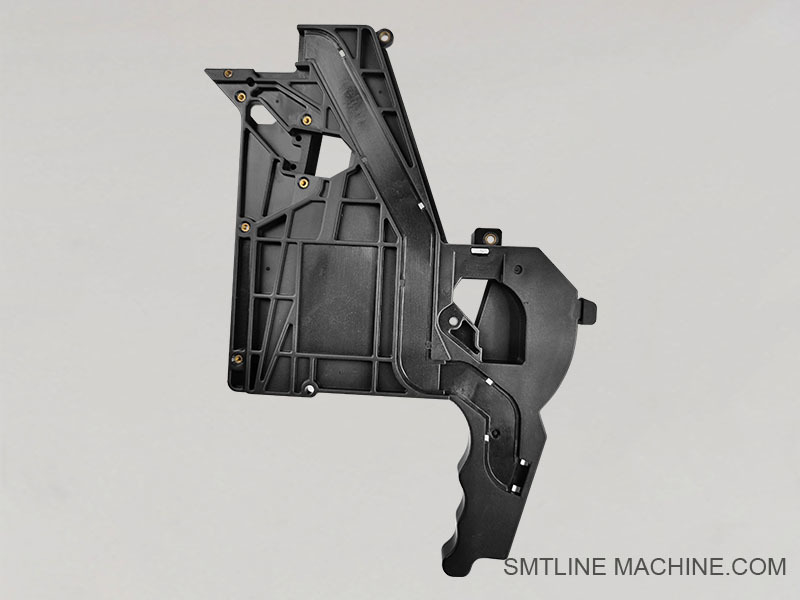

The KLJ-MC46Y-00 is an original tail cover assembly (also known as a top tape box) designed for Yamaha ZS series 24mm feeders. It is mounted at the rear of the feeder, ensuring smooth and clean exit of cover tape during component feeding.

Key Features

Precise fit for Yamaha ZS 24mm feeder models
Durable plastic construction for long service life under repeated use
Helps guide cover tape during peel-back and prevents jams
OEM-compatible for direct replacement without modification

Application

Installed at the end of the tape path on ZS 24mm feeders. Works with the tape guide system to direct and eject the cover tape after peeling.

Compatible Models

Yamaha ZS Feeder 24mm
e.g., KW1-M4500-045 or similar 24mm-width feeder types

Related Accessories – KLJ-MC46Y-00 (ZS 24mm Feeder Tail)

1. ZS 24mm Feeder Main Body

KW1-M4500-045 — Yamaha ZS 24mm electronic feeder, the main unit to which the KLJ-MC46Y-00 tail cover is attached.

2. Tape Guide Plate (Top Cover Guide)

Helps the cover tape smoothly transition through the feeder to the tail.

3. Tape Peel-off Roller

A small roller located near the tail to assist in peeling off the cover tape cleanly.

4. Spring Clip or Locking Tab

Holds the tail cover securely in place and allows for easy opening or closing during tape loading.

5. Mounting Screws / Fasteners

Standard M3 screws (e.g., 91312-03004) or plastic snap-in latches used to secure the tail cover to the feeder.

6. Sensor Cover (if equipped)

A small transparent or opaque cover for protecting sensors near the tape exit zone.

Related Part Numbers – KLJ-MC46Y-00 (ZS 24mm Feeder Tail)

Main Part

KLJ-MC46Y-00 — ZS Series 24mm Feeder Tail Cover (Top Tape Box)

Compatible Feeder

KW1-M4500-045 — Yamaha ZS 24mm Electronic Feeder

Related Accessories

KLJ-MC47T-00 — Tape Guide Plate for 24mm ZS Feeder
KLJ-MC48R-00 — Cover Tape Peel-off Roller (24mm)
KGS-M3696-00 — Spring Lock Clip for Tail Cover
91312-03004 — M3 Mounting Screw
KLJ-MC46R-00 — Sensor Cover (if equipped)
KLJ-MC49S-00 — Rear Tape Eject Guide Plate
