Product Introduction – KV8-M71W9-00X

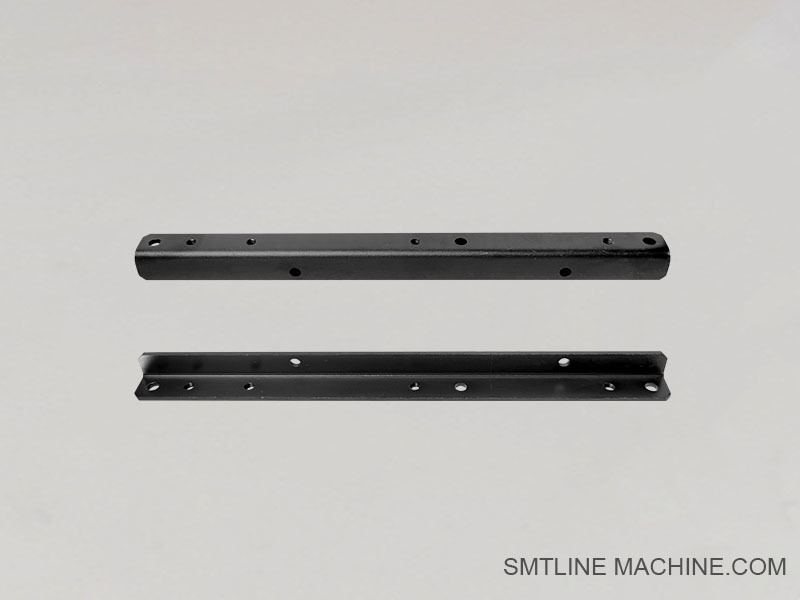

Head Left Bracket for Yamaha YV100X / YV100XG Pick-and-Place Machines

Overview

The KV8-M71W9-00X is a head left-side support bracket designed for Yamaha YV100X and YV100XG series SMT pick-and-place machines. It provides structural support and alignment for the placement head, ensuring accurate positioning during high-speed operations.

Key Features

Precision-Machined: Manufactured from high-strength steel or aluminum alloy with tight tolerances for mechanical stability.
OEM Compatibility: Fully compatible with Yamaha YV100X/XG series; direct fit with no modification required.
Durable Surface Finish: Anodized or coated to resist corrosion and wear from continuous use.
Maintenance-Friendly: Easily replaceable as part of regular head maintenance or repair procedures.

Installation Position

Mounted on the left side of the placement head unit, typically used alongside a matching right bracket to secure the head to the machine’s slider or axis assembly.

Applicable Models

Yamaha YV100X
Yamaha YV100XG

Related Accessories – KV8-M71W9-00X Head Left Bracket

1. KV8-M71WA-00X – Head Right Bracket

The matching right-side bracket to secure the placement head assembly.

2. KV8-M71WB-00X – Head Mounting Screws Set

OEM screws and fasteners used to install the left and right head brackets.

3. KV8-M71WC-00X – Placement Head Slider

The sliding mechanism to which the brackets attach, enabling head movement.

4. KV8-M71WD-00X – Head Shaft Assembly

Shaft components that work with the brackets to support rotational or linear motion.

5. KV8-M71WE-00X – Head Coupling Connector

Coupling parts that connect the head bracket to other mechanical or electrical assemblies.

6. KV8-M71WF-00X – Head Cable Guide Holder

Accessory to manage and secure cables routed near the head brackets.

Related Part Numbers – KV8-M71W9-00X and Accessories

KV8-M71W9-00X — Head Left Bracket
KV8-M71WA-00X — Head Right Bracket
KV8-M71WB-00X — Head Mounting Screws Set
KV8-M71WC-00X — Placement Head Slider
KV8-M71WD-00X — Head Shaft Assembly
KV8-M71WE-00X — Head Coupling Connector
KV8-M71WF-00X — Head Cable Guide Holder

FAQ Guide – KV8-M71W9-00X Head Left Bracket

1. What is the function of the KV8-M71W9-00X Head Left Bracket?

It supports and stabilizes the placement head on the left side, ensuring precise and reliable operation of the Yamaha YV100X / YV100XG pick-and-place machines.

2. Which machines is this bracket compatible with?

It is designed specifically for Yamaha YV100X and YV100XG models.

3. What material is the bracket made of?

Manufactured from high-strength aluminum alloy or steel with anodized or coated surface for durability.

4. Is this bracket easy to install?

Yes, it is designed for easy replacement and installation with OEM mounting hardware.

5. Can I use third-party brackets?

It is recommended to use genuine Yamaha parts to maintain machine performance and avoid fitment issues.

6. What issues can arise if the bracket is damaged?

Damage can cause head misalignment, reduced placement accuracy, and potential mechanical failure.

7. How often should the bracket be inspected?

Regular inspection during preventive maintenance—typically every 6 months—is recommended.

8. Are related accessories needed when replacing the bracket?

It is advisable to inspect and possibly replace associated screws, sliders, or connectors to ensure optimal operation.

9. Where can I purchase the KV8-M71W9-00X bracket?

Through authorized Yamaha distributors or certified SMT parts suppliers.

10. Is there a warranty for this part?

Warranty terms depend on the supplier; usually covered under standard OEM parts warranty policies.
