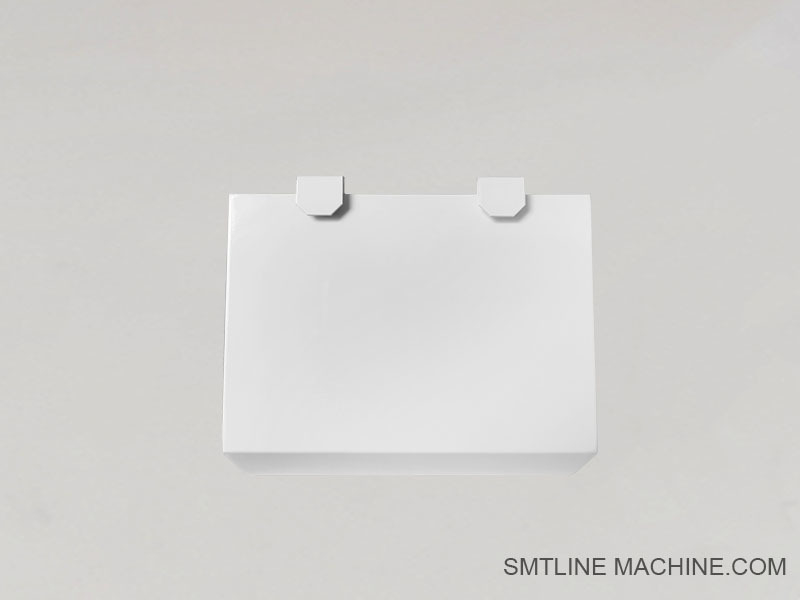

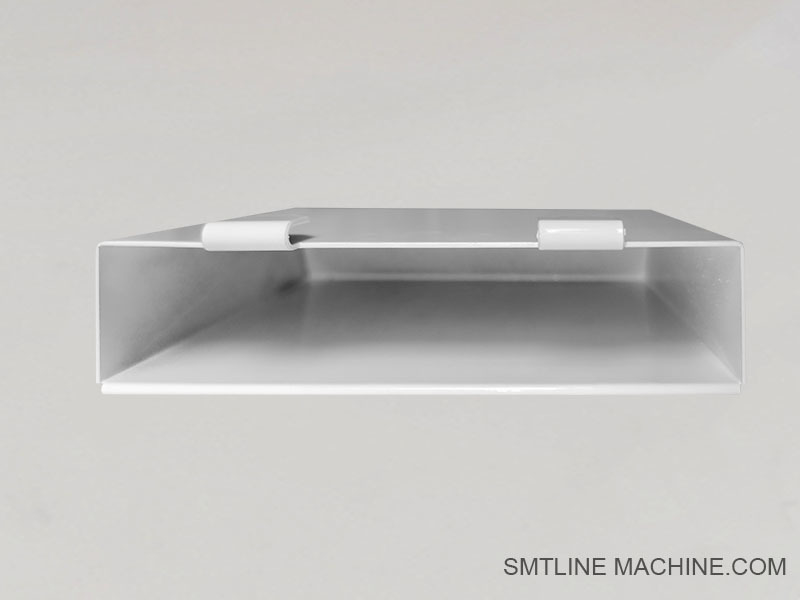

YG12 YS White Throwing Box

YG12 YS White Throwing Box

Product Overview

Function: Collects and stores waste materials such as component leads, paper labels, and other debris produced during the SMT assembly process.

Compatibility: Specifically designed for Yamaha YG12 and YS series pick-and-place machines.

Material: Typically made from durable plastic to withstand the rigors of the manufacturing environment.

Installation: Easily attaches to the machine, allowing for straightforward replacement and maintenance.

Related Accessories

Feeder Units: Essential for supplying components to the pick-and-place head.

Nozzles: Various types are used to pick up different component sizes.

Vision Systems: Cameras and sensors that ensure accurate component placement.([GameFAQs][1])

Maintenance Kits: Include tools and parts for regular upkeep of the machine.

Part Number

KHY-M8527-BOX: This is the part number for the Yamaha YG12 YS White Throwing Box.

Additional Notes

Maintenance: Regularly check and empty the throwing box to prevent overflow and ensure continuous operation.

Replacement: Use only genuine Yamaha parts for replacements to maintain machine performance and warranty.

Availability: This part is available through authorized Yamaha distributors and online marketplaces.

Related Accessories – YG12 YS White Throwing Box

Feeder Units
Supply components to the pick-and-place head during operation.

Nozzle Sets
Various nozzles designed for picking different component sizes.

Vision Camera Modules
Used for precise component recognition and alignment.

Waste Disposal Trays
Additional trays or containers that assist with waste management.

Maintenance Kits
Tools and replacement parts for routine cleaning and upkeep of the machine.

Related Part Numbers – YG12 YS White Throwing Box

KHY-M8527-BOX
YG12 YS White Throwing Box (Waste collection component)

KHY-M8510-00
Feeder Unit for Yamaha YG12 / YS series

KHY-M8520-00
Nozzle Set for Yamaha YG12 / YS series

KHY-M8530-00
Vision Camera Module for Yamaha YG12 / YS series

KHY-M8540-00
Waste Disposal Tray (Additional waste container)

KHY-M8550-00
Maintenance Kit for Yamaha YG12 / YS series machines

FAQ Guide – YG12 YS White Throwing Box

1. What is the purpose of the YG12 YS White Throwing Box?

It collects and stores waste materials like clipped leads and paper scraps generated during the SMT pick-and-place process, helping keep the machine clean and running smoothly.

2. Which Yamaha machines use this throwing box?

The throwing box is designed specifically for Yamaha YG12 and YS series SMT pick-and-place machines.

3. What material is the throwing box made from?

It is typically made of durable plastic that can withstand the manufacturing environment and frequent handling.

4. How do I install or replace the throwing box?

The box attaches easily to the machine and can be removed and replaced without special tools for quick maintenance.

5. How often should the throwing box be emptied?

It should be checked and emptied regularly to prevent overflow, which can interfere with machine operation.

6. Can I use third-party throwing boxes?

Using genuine Yamaha parts is recommended to ensure proper fit and performance.

7. Where can I purchase replacement throwing boxes?

Authorized Yamaha distributors and service centers provide genuine replacement parts.

8. What happens if the throwing box is not emptied regularly?

Waste buildup can cause jams, machine errors, or decreased performance.

9. Is the throwing box compatible with other Yamaha models?

It is specifically designed for YG12 and YS series; compatibility with other models should be confirmed before use.

10. Who should perform maintenance on the throwing box?

Routine maintenance can be performed by machine operators; major repairs should be handled by qualified SMT technicians.
