YS12 Large Fixed Camera Base Plate Base

YS12 Large Fixed Camera Base Plate Base

Product Introduction – YS12 Large Fixed Camera Base Plate Base

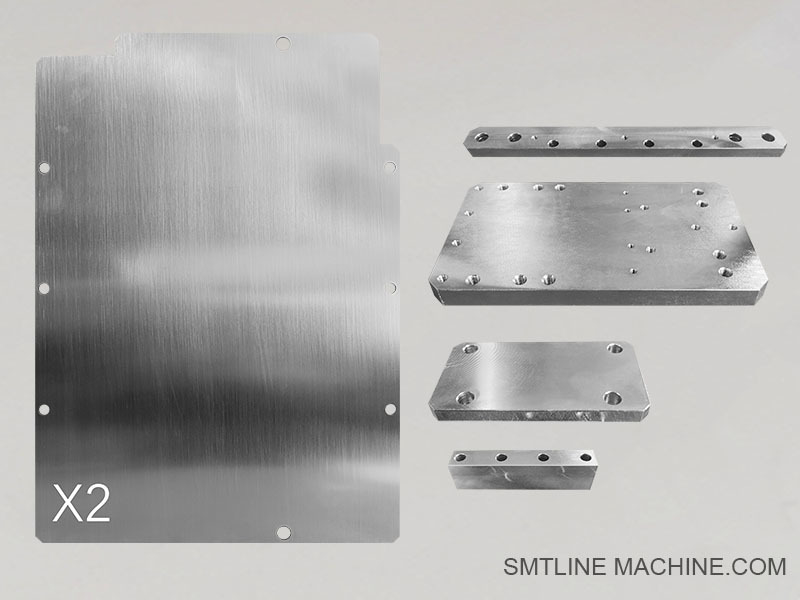

The Large Fixed Camera Base Plate Base is a structural support component used in the Yamaha YS12 SMT placement machine, specifically designed to hold and stabilize the fixed camera assembly. This component ensures accurate and repeatable visual inspection or recognition of components and fiducials during the SMT process.

Key Features:

High Precision Mounting Surface: Machined with tight tolerances to ensure accurate camera positioning for reliable image capture.
Structural Stability: Provides a rigid foundation to minimize vibration or shifting during machine operation.
Corrosion-Resistant Finish: Coated or anodized to withstand production environments and ensure long service life.
Custom Fit for YS12: Specifically designed to match the fixed camera unit dimensions and mounting holes used in the YS12 platform.

Function & Application:

Mounts the large fixed vision camera that performs component recognition, mark detection, or alignment inspection.
Acts as the reference foundation for image-based correction and fiducial alignment during pick-and-place.
Integral to maintaining consistent placement accuracy.

Typical Specifications:

Material: Machined aluminum alloy or steel
Surface: Black anodized or powder-coated
Mounting: Pre-drilled holes for camera module and support frame
Compatibility: Yamaha YS12 (may also apply to YS12F or similar variants with large fixed camera setups)

Related Accessories – YS12 Large Fixed Camera Base Plate Base

1. Fixed Camera Module

The main vision unit mounted onto the base plate, used for component recognition and fiducial alignment.

2. Mounting Screws & Washers

Precision fasteners for securing the camera and base plate assembly. Usually includes vibration-resistant screws with washers.

3. Camera Protection Cover

Protective shield or housing to prevent dust or mechanical impact to the fixed camera lens.

4. Lighting Module / LED Ring Light

Illumination unit installed around or near the camera to ensure consistent lighting for high-quality image capture.

5. Vision Cable Set

Includes signal and power cables that connect the camera to the vision processing board or main control unit.

6. Camera Adjustment Bracket

A fine-tuning support or sub-bracket that allows slight angle or height adjustments during calibration.

7. Base Plate Support Frame

Structural part that connects the base plate to the machine chassis, adding rigidity and alignment.

8. Calibration Glass / Target Board

Used for vision system calibration after installation or replacement of the camera or base plate.

Note:
These accessories are essential for the proper operation and maintenance of the YS12’s vision inspection system and must be matched to the specific YS12 configuration (e.g., standard vs. large fixed camera).

Related Part Numbers – YS12 Large Fixed Camera Base Plate Base

1. KG7-M655L-00

Large Fixed Camera Base Plate – The main base plate for mounting the fixed vision camera in the YS12 machine.

2. KG7-M6550-00

Fixed Camera Unit – Standard fixed vision module installed on the base plate for fiducial and component recognition.

3. KG7-M655H-00

LED Lighting Module – Ring light or illumination unit mounted around the fixed camera for uniform lighting.

4. KG7-M655M-00

Camera Mounting Bracket – Mechanical bracket used to support and adjust the fixed camera on the base plate.

5. KG7-M655N-00

Mounting Screw Set – Precision screw kit used to fasten the camera and base plate securely.

6. KG7-M655P-00

Vision Signal Cable – Cable set for transmitting image data and power between the camera and vision control board.

7. KG7-M655F-00

Protective Cover – Dust-proof shield for protecting the fixed camera and lighting components.

8. KG7-M655B-00

Base Plate Support Frame – Structural support that connects the base plate to the machine chassis.

9. KG7-M654A-00

Calibration Target Glass – Used for calibrating the fixed vision system after installation or service.

Note:
These part numbers are specific to Yamaha’s YS12 machine series and may vary slightly depending on the version (e.g., YS12F). Always verify compatibility before ordering.

FAQ Guide – Yamaha YS12 Large Fixed Camera Base Plate Base

1. What is the function of the Large Fixed Camera Base Plate Base?

This base plate serves as a stable mounting platform for the fixed vision camera used in the YS12 SMT machine. It ensures accurate alignment and minimal vibration for high-precision image capture.

2. Which models is it compatible with?

It is specifically designed for the Yamaha YS12 and may also be compatible with YS12F or similar models with large fixed camera configurations.

3. Is the base plate interchangeable with other machine series?

No. It is dimensioned and drilled to fit the YS12 layout and is not recommended for use in other Yamaha platforms like YSM or YV100 without modification.

4. What components are typically mounted on it?

Fixed camera unit (e.g., KG7-M6550-00)
LED lighting module
Mounting bracket and adjustment frame
Vision signal cable
Calibration glass (during setup)

5. What materials is the base plate made from?

Typically anodized aluminum or coated steel for strength, corrosion resistance, and precision machining.

6. What are signs of wear or failure?

Loose or unstable camera image
Visible warping or surface damage
Mounting holes stripped or misaligned
Increased placement vision errors

7. Can the base plate be adjusted or calibrated?

No mechanical adjustment is usually required on the base plate itself. However, camera fine-tuning is performed through the mounting bracket and software calibration.

8. How often should it be inspected?

During scheduled preventive maintenance
Any time vision alignment issues or poor recognition occur
After replacing the fixed camera or lighting module

9. Do I need to recalibrate after replacing the base plate?

Yes. Any replacement or adjustment of the base plate or camera requires vision system recalibration using a fiducial or calibration target.

10. Where can I get replacement parts?

All parts including the base plate, camera unit, and accessories (e.g., lighting, cables) can be sourced from authorized Yamaha SMT parts distributors using the KG7-M65xx-00 part number series.
