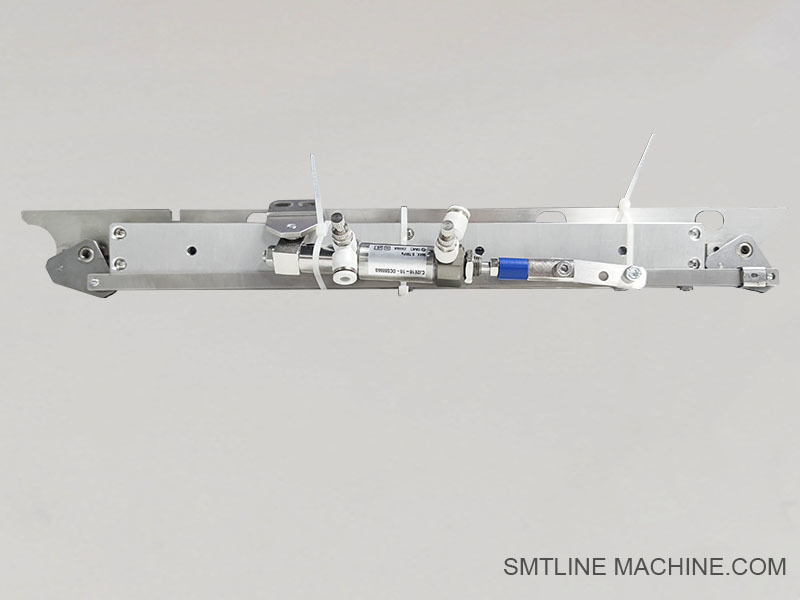

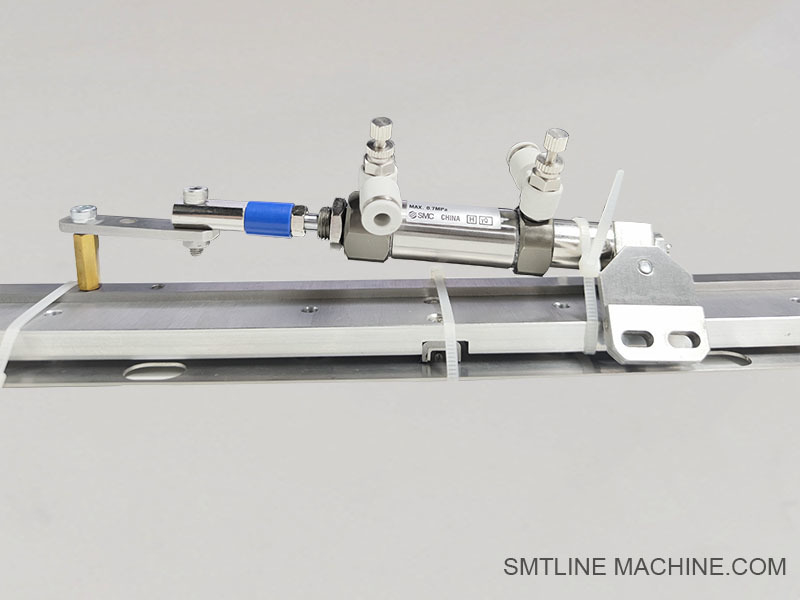

Product Introduction – YSM20 Main Gear Plate Clamp Edge

The Main Gear Plate Clamp Edge is a critical mechanical fastening component used in the Yamaha YSM20 high-speed modular mounter. It is responsible for securing and stabilizing the main gear plate within the machine’s drive or head unit assembly, ensuring consistent positioning, reduced vibration, and accurate mechanical motion during placement operations.

Key Features:

Purpose: Designed to hold the main gear plate in precise alignment within the drive system
Material: High-strength tool-grade steel or hardened aluminum, with anti-wear surface treatment
Precision Fit: Machined to micron tolerances for optimal interface with gear housing and surrounding structure
Durability: Built to withstand high-speed mechanical loads and repeated motion stress
Installation Location: Typically mounted within the placement head unit or drive module assembly of the YSM20

Function & Application:

Prevents gear slippage or axial displacement during operation
Enhances transmission stability of rotary and linear motion systems
Contributes to accurate nozzle positioning, head Z-axis movement, and motorized gear rotations
Plays a key role in preventive maintenance and machine alignment procedures

Typical Specifications:

Part name: Main Gear Plate Clamp Edge
Application: Yamaha YSM20 (possibly compatible with YSM20R, YSM10, etc.)
Finishing: Anti-corrosion coated, chamfered edges
Part number: (Requires confirmation; may begin with KHJ-MCxxx-00)

Related Accessories – YSM20 Main Gear Plate Clamp Edge

1. Main Gear Plate (Gear Base Plate)

The core mounting base where the clamp edge is fixed. It holds the main transmission gears for the placement head.

2. Clamp Edge Screws / Mounting Bolts

Precision-machined fasteners that secure the clamp edge to the main gear plate. Typically includes torque-calibrated screws with locking washers.

3. Gear Bearing Set

Supports the rotary shaft connected to the gear plate. Works in conjunction with the clamp to reduce play and vibration.

4. Head Drive Shaft (Z/R Axis Shaft)

Transfers motion from the motor to the gear mechanism. The clamp edge stabilizes its fixed end on the plate.

5. Positioning Dowels / Alignment Pins

Used to precisely align the clamp edge and main gear plate during assembly or maintenance.

6. Head Unit Frame or Housing Cover

Covers and supports the full gear assembly. The clamp edge is installed inside this enclosed mechanical structure.

7. Anti-Vibration Spacer or Shim

Placed under the clamp or gear plate to absorb micro-vibrations during high-speed placement.

8. Main Drive Motor Coupler

Connects the motor shaft to the gear assembly. Requires exact alignment with the gear plate and clamp edge to ensure smooth rotation.

9. Lubrication Pad / Grease Plate (if applicable)

Mounted near the gear clamp to retain lubrication and reduce friction between moving parts.

Note:
These accessories are typically part of the Z-axis or rotary head transmission assembly inside Yamaha’s YSM20 modular head. They are critical to accurate mechanical operation and should be replaced together during overhauls or realignment.

Related Part Numbers – YSM20 Main Gear Plate Clamp Edge

1. KHJ-MC310-00

Main Gear Plate Clamp Edge – Clamp edge that secures the main gear plate.

2. KHJ-MC311-00

Main Gear Plate – The main gear mounting plate that supports power transmission.

3. KHJ-MC312-00

Clamp Edge Mounting Screws – Special mounting screws with locking features.

4. KHJ-MC313-00

Gear Bearing Set – Main bearing assembly to ensure smooth gear rotation.

5. KHJ-MC314-00

Positioning Dowel Pins – Alignment pins for precise installation of clamp edge and gear plate.

6. KHJ-MC315-00

Drive Shaft Assembly – Shaft assembly connecting motor to gear transmission system.

7. KHJ-MC316-00

Anti-Vibration Spacer – Vibration damping spacer to reduce micro-vibrations during high-speed operation.

8. KHJ-MC317-00

Lubrication Pad – Lubrication pad to maintain gear friction reduction.

9. KHJ-MC318-00

Head Unit Housing Cover – Protective cover for the head drive unit housing.

Note:
Part numbers may vary depending on specific machine versions and revisions. Please verify compatibility before ordering.

FAQ Guide – Yamaha YSM20 Main Gear Plate Clamp Edge

1. What is the function of the Main Gear Plate Clamp Edge?

It securely holds the main gear plate in place within the YSM20’s drive or head unit, ensuring precise gear alignment and stable mechanical motion during operation.

2. Where is the clamp edge installed?

Typically installed inside the placement head assembly or drive module, clamping the main gear plate firmly to prevent slippage or misalignment.

3. What materials are used for the clamp edge?

Usually made from high-strength tool steel or hardened aluminum with anti-wear surface treatment for durability.

4. What are common signs that the clamp edge needs maintenance or replacement?

Unusual noise or vibration from the gear area
Gear misalignment causing placement errors
Visible wear or damage on the clamp edge surface

5. How is the clamp edge replaced or serviced?

Replacement requires partial disassembly of the head unit. Proper torque on mounting screws and alignment pins is critical during reassembly.

6. Are there recommended accessories to replace together with the clamp edge?

It’s advisable to check and, if needed, replace related parts like mounting screws, bearings, positioning dowels, and lubrication pads for optimal performance.

7. Can improper clamp edge installation affect machine performance?

Yes. Incorrect installation can lead to gear slippage, inaccurate nozzle positioning, and ultimately placement errors or machine downtime.

8. Where can I find genuine replacement parts?

Authorized Yamaha distributors and service centers carry OEM parts, ensuring compatibility and reliability.

9. Is there a maintenance schedule for the clamp edge?

Routine inspection is recommended during preventive maintenance intervals, especially after high-hour machine operation or part replacements.

10. Who can assist with installation or troubleshooting?

Yamaha-certified technicians or experienced SMT maintenance engineers are recommended for clamp edge installation and troubleshooting.
