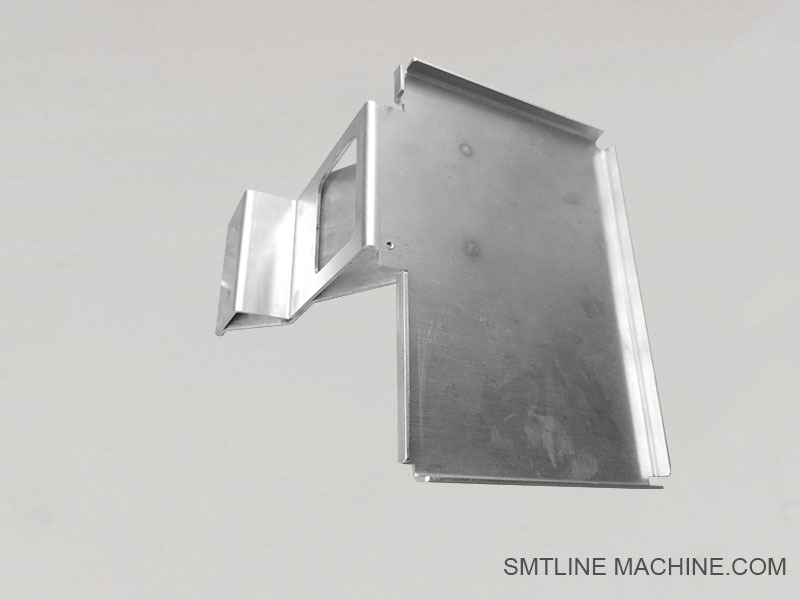

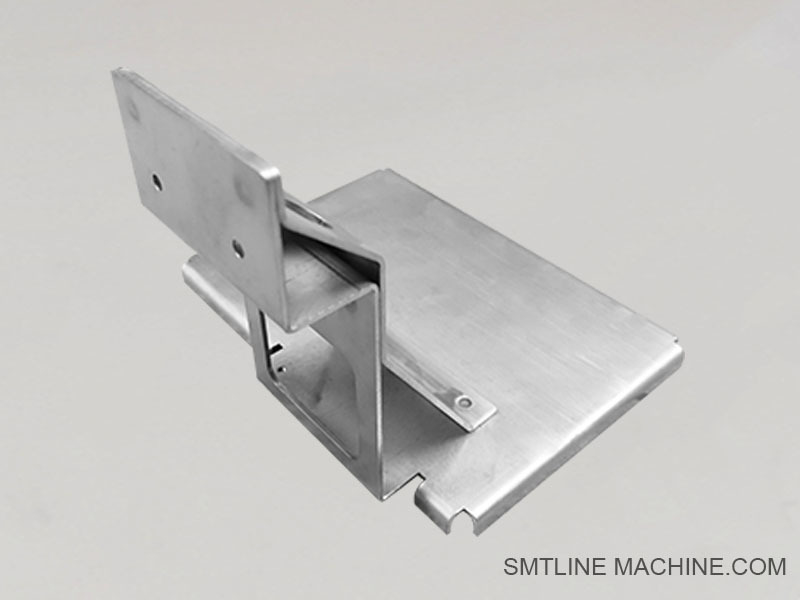

Product Introduction – Yamaha YSM20 10-Keyboard Stand

The YSM20 10-Keyboard Stand is a precision-engineered mechanical accessory designed to securely mount up to 10 keyboard units or feeder operation panels on Yamaha YSM20 SMT placement systems. It provides a stable and organized interface point for operators to interact with machine control modules and feeder programming stations.

Key Features:

Capacity: Supports up to 10 keyboards or control panels simultaneously
Compatibility: Tailored specifically for Yamaha YSM20 high-speed modular mounters
Construction: Made of durable powder-coated steel with anti-slip rubber pads
Mounting: Includes integrated brackets and alignment slots for precise keyboard positioning
Accessibility: Designed for easy access to keypads during setup, changeover, and maintenance
Mobility Options: Some models may include casters or lockable wheels for station relocation

Function & Application:

Used for organizing and securing YSM20 keyboard interfaces in one place
Ensures stable input when operating placement heads, feeders, and test routines
Reduces workspace clutter and supports faster line setup and diagnostics

Specifications (Typical):

Material: Steel + aluminum alloy
Finish: Anti-rust industrial coating
Dimensions: Varies by model (approx. W600mm × H1200mm × D400mm)
Color: Standard Yamaha grey or black
Mount Type: Free-standing or bolt-down

Related Accessories – YSM20 10-Keyboard Stand

1. Mounting Brackets

Used to secure each keyboard onto the stand. Custom-designed for Yamaha keyboard modules to ensure a firm fit and alignment.

2. Cable Management Clips / Channels

Keeps signal and power cables from multiple keyboards organized and protected. Prevents tangling or accidental disconnection.

3. Keyboard Power Cable Assembly

Wiring harness that distributes power to each of the 10 connected keyboards. Available in custom lengths and connector formats.

4. Rubber Feet / Anti-Slip Pads

Mounted at the base of the stand to improve grip and minimize vibration during operation. Prevents sliding on smooth floors.

5. Locking Casters (Optional)

Wheels with locking mechanisms, often used on mobile versions of the stand for ease of transport and repositioning in the SMT line.

6. Nameplate or Label Holder

Small label frames or slots for identifying each keyboard’s assigned position or function.

7. Feeder Bank Connector Interface (Optional)

In some setups, additional interface plates may be used to link the keyboard stand with feeder banks for simultaneous programming.

8. Protective Cover or Dust Shield

Clear acrylic or soft PVC cover to protect unused keyboards from dust and environmental contaminants.

Note:
Some accessories may be optional or customized based on the SMT line layout. Yamaha-authorized stands are typically delivered with brackets pre-installed.

Related Part Numbers – YSM20 10-Keyboard Stand

1. KJW-MC600-00

Main frame for the 10-keyboard stand – the core structural component that holds the keyboard units.

2. KJW-MC601-00

Mounting bracket set – includes keyboard mount arms and locking screws to secure each unit.

3. KJW-MC602-00

Keyboard cable assembly – distributes signal and power to all connected keyboards.

4. KJW-MC603-00

Cable routing kit – includes wire clips, covers, and fasteners for clean cable management.

5. KJW-MC604-00

Anti-slip base pad set – rubber feet or non-skid pads mounted at the bottom of the stand.

6. KJW-MC605-00

Caster wheel assembly (optional) – lockable wheels for mobile versions of the stand.

7. KJW-MC606-00

Identification label holder – used to mark each keyboard's location or ID.

8. KJW-MC607-00

Dust cover for keyboard stand – soft plastic or acrylic shield to protect unused keypads.

Note:
These part numbers follow Yamaha's standard KJW-MC6xx-00 structure, common in accessories related to auxiliary stands and control interface hardware. Confirm actual compatibility based on your keyboard types and line configuration.

FAQ Guide – Yamaha YSM20 10-Keyboard Stand

1. What is the purpose of the 10-keyboard stand?

It is used to securely mount and organize up to 10 Yamaha feeder keyboards or feeder interface panels in one centralized, ergonomic location. This facilitates feeder programming, maintenance, and line changeovers.

2. Which machines is it compatible with?

Primarily designed for Yamaha YSM20, but may also be compatible with other Yamaha/Yamaha-derived SMT platforms using ZS or FS feeders with external keyboard units.

3. What kind of keyboards can be mounted?

Standard Yamaha feeder control keyboards used for manual or semi-automatic feeder operations. Models may include part numbers starting with KJW-, KLJ-, or KHJ- depending on the keyboard type.

4. Is the stand mobile or fixed?

It comes in both fixed-frame and caster-based mobile versions. The mobile version allows flexible repositioning within the SMT line.

5. Does it come pre-assembled?

Typically shipped flat-packed for easier transport. Assembly is simple and includes all necessary mounting hardware.

6. What accessories are required for setup?

Essential accessories may include:

Mounting brackets
Keyboard power/signal cables
Cable clips or routing guides
Optional caster wheels or floor bolts

7. How is the stand powered?

The stand itself does not require power. The individual keyboards are powered via standard feeder control wiring harnesses.

8. Can I mix different types of keyboards on the same stand?

Yes, as long as the bracket and wiring support them. It is common to mix 8mm, 12mm, or 16mm feeder control keyboards in a single station.

9. How should I maintain the stand?

Periodically check for loose mounting screws
Clean cable channels to prevent dust buildup
Inspect caster wheels or pads for wear (if mobile version)

10. Where can I get replacement parts or accessories?

From authorized Yamaha SMT distributors or service partners. Part numbers such as KJW-MC600-00 ~ KJW-MC607-00 cover the main structure and accessory options.
