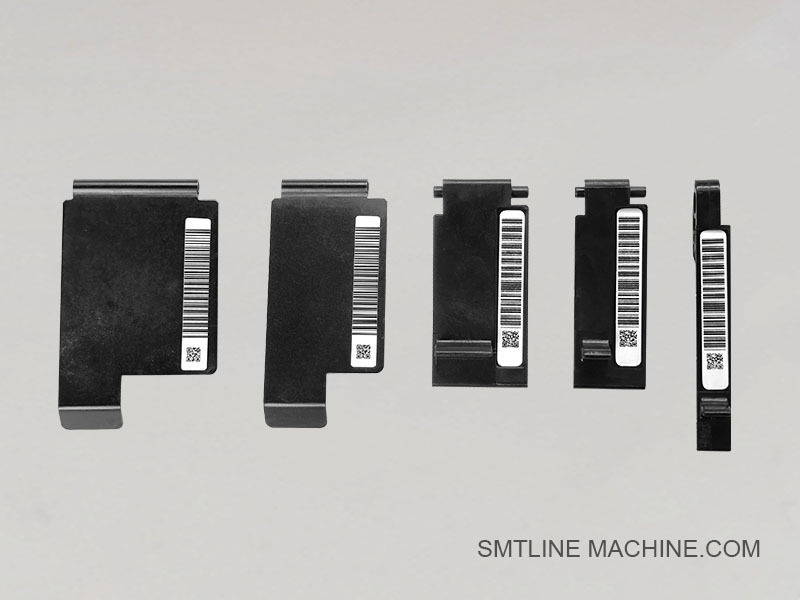

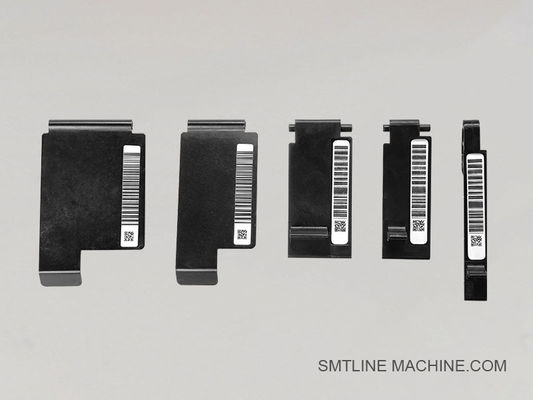

Product Introduction – ZS Feeder Waste Tape Cover

The ZS Feeder Waste Tape Cover is a specially designed accessory used in SMT production to collect and manage the cover tape peeled from component reels during the automatic feeding process. It is compatible with ZS-type feeders, commonly found in Yamaha and Hanwha pick-and-place machines.

Key Features:

Efficient waste collection: Guides and covers the peeled cover tape into a spool or tray, preventing tangles and debris on the machine.
Durable structure: Made from anti-static and high-strength plastic or lightweight metal, resistant to wear and machine vibration.
Quick installation: Easy to mount directly on the feeder without tools or additional modifications.
Improves workplace safety and cleanliness: Keeps the production area tidy by managing tape waste effectively.
Optional rewind support: Some models allow integration with automatic waste tape rewinders.

Applications:

Compatible with ZS series feeders, typically used on Yamaha YSM / Z:TA-R / Sigma-G5 platforms.
Suitable for 8mm / 12mm / 16mm feeders (different sizes available).
Commonly used in:

Consumer electronics
Automotive electronics
LED assembly lines

Related Accessories – ZS Feeder Waste Tape Cover

1. Cover Tape Rewind Reel

A detachable or built-in reel designed to collect the peeled cover tape automatically as the feeder advances components. It prevents loose tape from interfering with machine operation.

2. Mounting Clip / Snap Lock

A quick-attach clip or locking tab that secures the waste tape cover onto the feeder body without tools. Different sizes available for various ZS feeder widths (8mm, 12mm, 16mm, etc.).

3. Anti-static Tape Guide Tube

An anti-static plastic or silicone-coated tube that channels the cover tape from the peeling point into the waste tape box or reel. Prevents static buildup and jamming.

4. Spring Plate or Guide Arm

A tension spring strip or guide arm used to maintain pressure and direct the cover tape smoothly into the waste collection unit.

5. Waste Tape Box (optional)

For some manual setups, a small collection box or tray is mounted under the feeder to catch the peeled cover tape instead of rewinding it.

6. ZS Feeder-specific Adapter Plate

For some versions of the ZS feeder, an adapter plate or spacer may be required to mount the waste tape cover securely, depending on the generation of feeder or machine model.

Note:
The above accessories may vary slightly depending on the width of the feeder and the type of machine platform (e.g., Yamaha YSM10, YSM20, Sigma-G5).

Related Part Numbers – ZS Feeder Waste Tape Cover

KJW-M119B-00X – Standard 8mm ZS feeder waste tape cover
For 8mm tape width; most commonly used on Yamaha YSM series and Sigma G5 machines.

KJW-M119C-00X – 12mm ZS feeder waste tape cover
Used for 12mm tape; slightly wider structure with enhanced tape guidance.

KJW-M119D-00X – 16mm ZS feeder waste tape cover
Designed for larger tape widths; may include stronger frame and longer tape path.

KJW-M119E-00X – 24mm ZS feeder waste tape cover
Less common, used for larger components like connectors or ICs.

KJW-M1300-00X – Cover tape rewind reel for ZS feeders
Optional auto rewind reel to collect peeled cover tape.

KJW-M1310-00X – Mounting clip or lock latch
Used to secure the waste tape cover to the feeder body.

KJW-M1320-00X – Cover tape guide tube (anti-static)
Routes the cover tape into the reel or box without jamming or static discharge.

KJW-M1330-00X – Waste tape tension spring
Maintains even tape movement through the waste cover channel.

FAQ Guide – ZS Feeder Waste Tape Cover

1. What is the ZS Feeder Waste Tape Cover used for?

The ZS Feeder Waste Tape Cover is used to guide and manage the peeled cover tape from component reels during SMT feeding. It helps keep the machine area clean, reduces the risk of tape entanglement, and improves feeding stability.

2. Which feeders is it compatible with?

It is specifically designed for ZS-series feeders, commonly used on:

Yamaha YSM10 / YSM20 / YSM20R
Yamaha Z:TA-R
Yamaha Sigma G5 / G5S

Models are available for different tape widths: 8mm, 12mm, 16mm, 24mm.

3. Is the waste tape cover necessary for operation?

While not strictly required for feeder function, it is highly recommended to:

Prevent cover tape buildup in the machine
Avoid feeding errors caused by loose tape
Improve operator safety and machine cleanliness

4. Does it support cover tape rewinding?

Yes. Some models include or support optional cover tape rewind reels, which automatically roll the peeled tape.
If no reel is used, the tape is usually guided into a waste box or tray.

5. What are the typical part numbers?

8mm cover: KJW-M119B-00X
12mm cover: KJW-M119C-00X
16mm cover: KJW-M119D-00X
24mm cover: KJW-M119E-00X
Rewind reel: KJW-M1300-00X
Locking latch: KJW-M1310-00X

6. What materials is it made from?

Most covers are made of:

Anti-static plastic or
Lightweight aluminum alloy, depending on model

These materials are selected to reduce static discharge and ensure durability under machine vibration.

7. How to install the waste tape cover?

Installation is usually tool-free:

Align the cover over the tape guide exit
Press or clip it onto the feeder slot
Secure with a latch or spring-loaded lock if applicable

8. How to maintain the waste tape cover?

Daily: Remove debris, check for blockages
Weekly: Inspect guide path for wear or misalignment
Monthly: Ensure springs and latches are intact, especially if rewinder is used

9. Can one waste cover be used for multiple tape widths?

No. Each cover is tailored for a specific tape width (e.g., 8mm, 12mm). Using the wrong size may result in jamming or improper tape guidance.

10. What problems may occur without a waste cover?

Tangled cover tape inside the machine
Tape interfering with pickup head movement
Increased static buildup on the tape
Component placement errors from blocked vision or mechanical interference
