SMTLINE Shamir Spark Machine Black Sealing Strip 130001622 Slow Wire Accessory SMT Spare Parts

Shamir spark machine black sealing strip 130001622 slow wire accessory

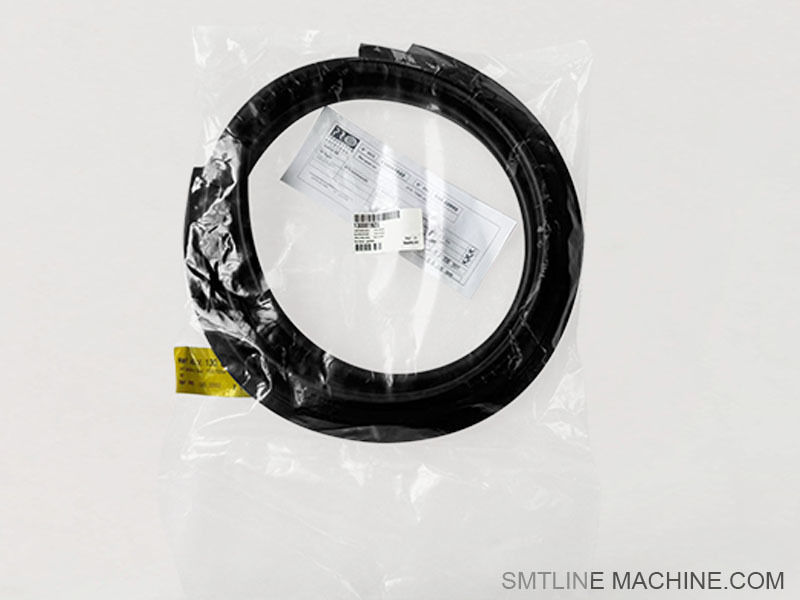

Product Introduction – Shamir Spark Machine Black Sealing Strip
Part Number: 130001622
Model: Black Sealing Strip for slow wire EDM
This Black Sealing Strip is a precision consumable designed for wire-cut EDM machines, particularly Charmilles FO models (e.g., FO3X, FO350). It serves as a sealing or protective strip that helps maintain optimal flushing during slow-speed wire cutting operations.
Typically installed adjacent to the cutting wire, this strip prevents dielectric leakage and minimizes contamination, ensuring stable machining accuracy, longer dielectric fluid life, and consistent cutting performance—especially crucial during fine-detail or slow-speed operations.

Key Features
OEM Part Number: 130001622
Length: Approximately 2570 mm (fits Charmilles FO3X/FO350 machines)
Material: Durable, abrasion-resistant synthetic rubber or polymer with black finish
Function: Seals the spark gap area to maintain dielectric integrity during machining

Compatibility & Application
Designed for Charmilles FO-series EDM wire-cut machines (FO3X, FO350)
Essential for operations using slow-cutting (micro-cut) wires
Ideal for maintaining clean dielectric flow, reducing speck buildup, and improving surface finish

Benefits
Extends electrode wire life by sealing off the cutting zone effectively
Reduces dielectric fluid consumption and contamination
Helps maintain consistent accuracy and surface quality
Easy to install and replace during routine maintenance

Additional Slow-Wire Accessories (Often Used Together)
Guide blocks and rollers
Flushing nozzles
Diamond-coated wire guides
Spare roller bearings and belts








Related Accessories – Black Sealing Strip (130001622)

1. Wire Guide Assemblies
Upper & Lower Diamond Wire Guides
– Ensure stable and accurate wire positioning during cutting
– Often used with guide blocks compatible with the sealing strip region
Guide Block Holders / Guide Bushings
– Provide the framework that holds the diamond wire guides and sealing strips in place

2. Flushing & Sealing Components
Flushing Nozzles / Jet Pipes
– Direct dielectric fluid at high pressure to the spark zone, usually positioned near the sealing strip
Rubber Sealing Gaskets / O-Rings
– Help maintain a tight fluid seal in the guide assembly or lower head unit
Side Seals / U-Cups / Lip Seals
– Work alongside the main sealing strip to reduce dielectric leakage

3. Drive & Transport Mechanism
Wire Drive Belts (Timing belts)
– Used in wire transport systems, typically near or around the sealing zone
Upper/Lower Roller Bearings
– Provide smooth movement for wire across the cutting path, seated near the sealing area

4. Support & Mounting Hardware
Sealing Strip Mounting Clips / Brackets
– Secure the strip into place on the EDM machine’s cutting head
– May be spring-loaded or magnetic, depending on model
Guide Head Covers / Shield Plates
– Protect both the sealing strip and surrounding guides from splashback or electrode wear

5. Maintenance Tools
Installation Jigs for Sealing Strips
– Assist in proper placement and tensioning of the sealing strip during routine replacement
Scrapers / Cleaning Brushes
– Used to remove residue or debris from sealing surfaces before replacing the strip









Related Part Numbers – Shamir Spark Machine & EDM Slow Wire Accessories

Sealing & Guide System
130001622 — Black sealing strip (main part)
130001623 — Sealing strip bracket or holder (matching type)
130001654 — U-cup secondary seal (used alongside main strip)
130001698 — Rubber lip seal (front-end auxiliary part)
130002012 — Guide block gasket for FO3X/FO350
130002034 — O-ring kit for sealing assembly (multi-size)

Flushing & Fluid Handling
130001710 — Flushing nozzle (upper/lower head)
130001733 — Jet pipe for dielectric fluid (high-pressure type)
130002045 — Upper head flushing chamber rubber pad
130002048 — Foam sealing strip for fluid return control

Wire Guide System
130001806 — Upper diamond wire guide (φ0.25 mm standard)
130001807 — Lower diamond wire guide
130001820 — Wire guide bushing holder block
130001821 — Support bracket for guide block (rear mount type)

Transmission & Roller Parts
130001904 — Wire transport timing belt (standard size)
130001912 — Lower roller bearing set (ceramic type)
130001913 — Upper roller shaft
130001915 — Idler roller assembly for slow feed EDM head

Maintenance Tools & Kits
130002101 — Sealing strip installation tool kit
130002103 — Wire guide cleaning brush set
130002105 — Spark zone inspection mirror
130002110 — Multi-seal replacement maintenance kit

These part numbers are typically used for Charmilles/Agie-Charmilles FO series (e.g., FO3X, FO350, Robofil) and may be cross-compatible with other brands that adopt similar EDM sealing mechanisms.





FAQ Guide – Black Sealing Strip (130001622) for Slow Wire EDM

1. What is the black sealing strip used for?
The black sealing strip is installed around the upper or lower guide assembly of the wire-cut EDM head. Its purpose is to maintain dielectric fluid pressure in the cutting zone and prevent leaks, which helps achieve stable spark discharge and high machining accuracy.

2. Which machines is it compatible with?
It is commonly used in Charmilles FO3X, FO350, Robofil 290/440 and other Shamir-style slow wire EDM machines with similar guide head architecture.

3. What are the signs that the sealing strip needs replacement?
Visible cracks, warping, or deformation
Decreased flushing pressure
Dielectric fluid leaking around the wire guide
Increased spark instability or surface roughness

4. How often should the strip be replaced?
Depending on usage, material type, and maintenance conditions:
Every 400–800 hours of operation (average)
Or during each scheduled preventive maintenance cycle

5. How is the sealing strip installed?
Remove the worn strip using the sealing strip puller or flat tweezers
Clean the guide slot with alcohol and a soft brush
Press-fit the new strip evenly along the guide rail
Trim excess with a sharp blade if needed
Ensure the strip lies flat and is not twisted
Tip: Use part number 130002101 (installation tool kit) for best results.

6. Does it affect cutting accuracy or flushing efficiency?
Yes — a properly fitted sealing strip helps:
Maintain dielectric fluid flow direction and pressure
Avoid fluid turbulence, improving spark stability
Minimize wire vibration, improving cut precision and surface finish

7. What other parts should be inspected at the same time?
Upper and lower wire guides (diamond inserts)
Guide block O-rings and lip seals
Flushing nozzles and jet pipes
Roller bearings or idlers
These components all work together with the sealing strip to ensure optimal EDM performance.

8. Is the material ESD safe or heat resistant?
Yes. The strip is made from EDM-compatible synthetic rubber or polymer materials that are resistant to dielectric fluids, heat, and erosion from electric discharge exposure.

9. Can this part be reused or rotated?
No. The sealing strip is a non-reusable consumable. Once deformed or worn, it must be replaced to avoid compromising cutting performance.

10. Are there different sizes or versions?
Yes. While 130001622 is a standard length (~2570 mm), there are versions for:
Different wire diameters (e.g., φ0.1 mm, φ0.25 mm)
Different EDM head designs or guide block brands
Always confirm machine compatibility before ordering.
