Replacement Panasonic Sealing Ring PG00975 for Optimal SMT Equipment Performance

Panasonic sealing ring PG00975

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

Product Overview

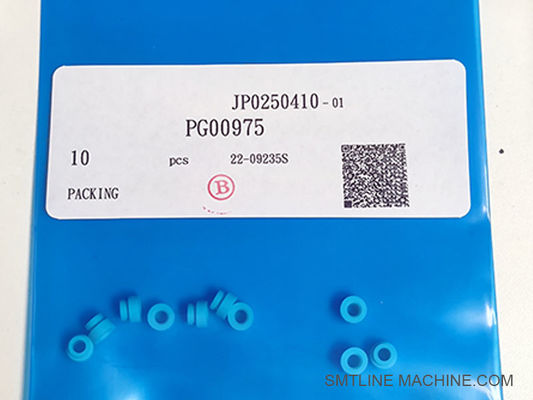

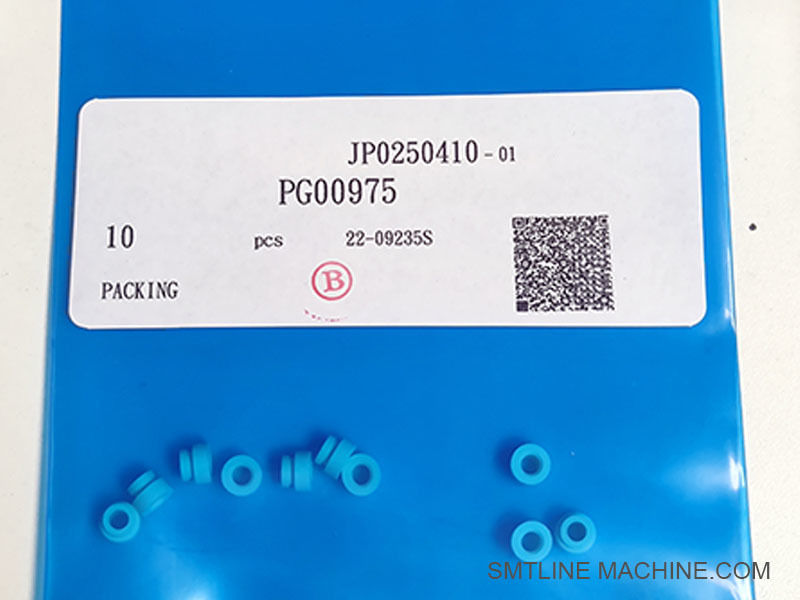

Part Number: PG00975
Name: Sealing Ring / O-Ring for Working Head Gas Pipe
Compatible Models: FUJI NXT series (V12, H01, H08, H12S, H24/S) working heads
Function: Provides airtight sealing around gas/vacuum tubing in the working head, preventing air leakage and ensuring consistent suction performance
Condition: Brand new, OEM-equivalent quality
Certifications: CE, ISO standards

Key Features

Precision Seal Fit: Crafted to original dimensions to securely seal vacuum/gas pipes without leaks
High Durability: Made from high-grade elastomer rubber capable of withstanding repeated mechanical cycles in fast-moving SMT heads
Compact & Replaceable: Easy to install without special tools; designed for head maintenance kits
OEM Quality: Matching original FUJI parts, often described as “Packing Ring” or “Seal Ring”&x20;

Specifications & Details

Application & Replacement

Usage: Installed around gas/vacuum pipe in the working head to ensure airtight connections—critical for stable suction performance and camera air seals
Replacement Triggers:

Noticeable vacuum pressure drop or component pickup failures
Leakage around tubing or gas lines during maintenance checks
Regular preventive maintenance or scheduled seal replacement intervals
Installation Tip: Power off and carefully remove the old ring from the gas pipe gland. Clean the mating surfaces, fit the new PG00975 ring ensuring full seating, and reassemble. Verify vacuum integrity post-installation.

Summary

The PG00975 sealing ring is a small but essential consumable for maintaining airtight interfaces in FUJI NXT working heads. With accurate fit and OEM-grade material, it ensures stable suction and reduces downtime—recommended as part of regular SMT head maintenance.

Related Accessories for PG00975 Sealing Ring

Notes:

The PG00975 sealing ring works closely with vacuum connectors, pipes, and pressure sensors.
It is recommended to check these related parts during routine maintenance to avoid vacuum leaks or suction failure.

Related Part Numbers for PG00975 Sealing Ring

FAQ Guide

Product Name: Sealing Ring / O-Ring

Part Number: PG00975

Applicable Models: FUJI NXT V12, H12S, H08, H24(S), and Panasonic-compatible SMT heads

1. What is the function of the PG00975 sealing ring?

The PG00975 is a precision O-ring used in FUJI NXT working heads to create an airtight seal around vacuum and gas pipelines. It ensures that the negative pressure system operates without leaks, which is essential for reliable nozzle suction and component pickup.

2. Where is PG00975 installed?

It is installed at gas/vacuum connection points inside the working head, especially around:

Vacuum pipe connectors
Gas line sleeves (e.g., PH00990, PH00991)
Air system manifolds

3. What are signs the seal needs replacement?

Vacuum pressure drop or unstable suction
Component pickup errors
Air leakage detected during diagnostics
Cracks, flattening, or wear visible on the ring
Preventive maintenance interval reached

4. How do I replace the sealing ring?

1. Power off and depressurize the system.
2. Disassemble the pipe connector or gas junction.
3. Remove the old PG00975 ring.
4. Clean the mating surfaces.
5. Install the new O-ring without twisting.
6. Reassemble and test for vacuum integrity.

5. Are there other related parts to check?

Yes. Check the following parts along with PG00975:

PH00990 / PH00991 – pipe sleeves and connectors
PG00974 / PG00978 – alternative-sized seal rings
AA19H00 – filter cotton
S4033G – negative pressure sensor
Mechanical valve / nozzle unit – downstream air components

6. Summary

The PG00975 sealing ring plays a crucial role in maintaining the airtight environment of FUJI NXT and Panasonic working heads. Routine inspection and timely replacement prevent suction failures and maintain placement precision. Always use OEM-quality seals for consistent performance.
