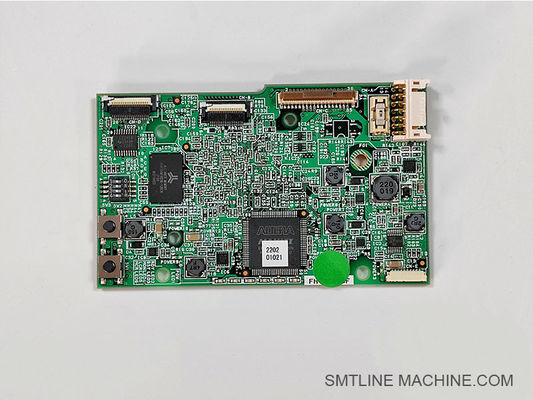

High-Performance FUJI 2AGKHA012000 IPS Camera Motherboard for H24S Placement Heads

FUJI2AGKHA012000 H24S working head IPS camera motherboard

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

Product Overview

Part Number: 2AGKHA012000
Name: IPS Camera Mainboard
Compatible Head: FUJI NXT H24S Working Head
Function: Processes image data from the IPS (Image Processing Sensor) camera—handling power, sensor interface, and communication to the machine controller
Origin: Made for FUJI, manufactured in Japan/China; ISO/CE certified&x20;
MOQ: 1 unit
Lead Time: Typically 1–5 days
Packaging: Boxed with secure packing options – carton or wooden case

Key Features & Functions

Vision Processing Hub: Carries out real-time image analysis used for component pickup validation, position correction, angle inspection, and offset adjustments.
Seamless Machine Integration: Connects and communicates directly with the SMT controller to support head motion and nozzle actuation.
OEM Quality: Built to endure high-speed SMT demands with stable performance and long service life.

Application & Replacement

Typical Use Cases:

Full integration in the H24S head, essential for inspection and alignment tasks using the IPS camera.

Replacement Scenarios:

Vision failures or error messages related to the IPS camera.
Loss of image data or abnormal image output.
Physical damage or burnt components.

Replacement Guidelines:

Power off and follow anti-static procedures before disassembly.
Reconnect all cables securely to ensure reliable camera data transmission.
Perform calibration checks via machine diagnostics after installation.

Summary

The 2AGKHA012000 is the critical IPS camera mainboard for the FUJI NXT H24S working head. It enables high-precision, camera-based quality control by processing image data to guide part placement. With its genuine build quality, fast availability, and essential calibration support, it’s a vital part for SMT line maintenance and uptime.

Related Accessories for FUJI 2AGKHA012000 (H24S IPS Camera Mainboard)

Notes:

The IPS camera and light source components are directly paired with this mainboard for complete vision system operation.
Proper air and dust management (via filters and valves) is crucial to maintain imaging clarity and board stability.
Regular calibration after board replacement is highly recommended.

Related Part Numbers for 2AGKHA012000 (H24S IPS Camera Mainboard)

FAQ Guide

Product Name: IPS Camera Motherboard

Part Number: 2AGKHA012000

Applicable Model: FUJI NXT H24S Working Head

1. What is the function of the 2AGKHA012000 motherboard?

This motherboard is the core controller for the IPS (Image Processing Sensor) camera used in the H24S working head. It handles image data processing, power management, and communication with the machine's control system for precise component alignment and placement.

2. What symptoms indicate this board needs replacement?

Vision recognition failure or poor image quality
No image output from the IPS camera
Machine reports IPS communication errors
Physical damage, burn marks, or connector faults on the board

3. How do I replace the IPS camera motherboard?

Step 1: Power off the machine and discharge static electricity
Step 2: Disconnect cables from the damaged board
Step 3: Install the new board and reconnect all connectors
Step 4: Power on and perform camera calibration via the machine interface

4. What components work with this motherboard?

Related components include:

2AGKHA014000 – IPS Camera
2AGKHA022500 – Light Source Control Board
2AGKHA022400 – Camera Light Source
GGAJ0403 / 3216 – Calibration Tablet
2EGTHA000202 – Dust Filter

5. Do I need to recalibrate after replacement?

Yes. Recalibration ensures the vision system functions correctly and aligns parts accurately. Use the official calibration tool or reference plate during setup.

6. Summary

The 2AGKHA012000 IPS camera motherboard is critical for the H24S head’s image processing capabilities. Prompt replacement and proper calibration maintain optimal vision accuracy and minimize production downtime.
