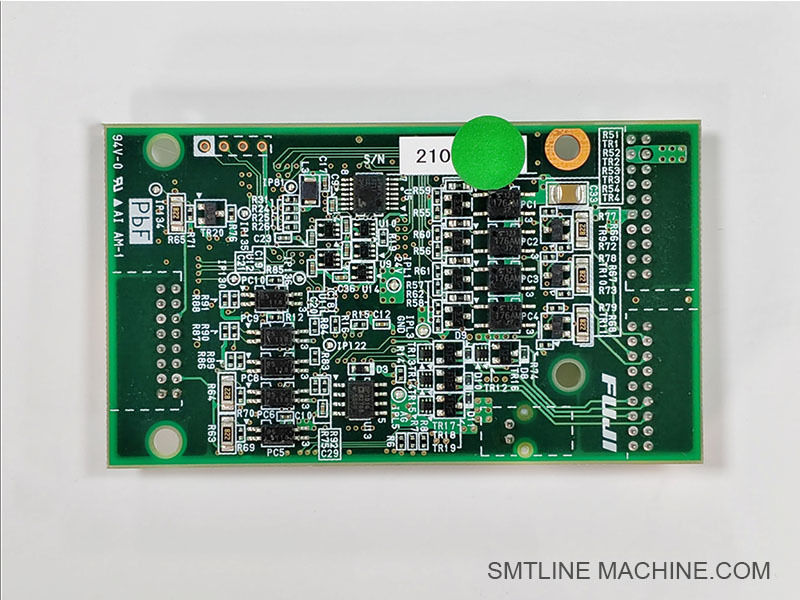

FUJI 2AGKHA020604 H24 H24G H24S working head motherboard SMT Spare Parts

FUJI2AGKHA020604 H24 H24G H24S working head motherboard

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

Product Overview

Part Number: 2AGKHA020604
Model Compatibility: FUJI NXT H24, H24G, H24S Working Heads
Function: Central control board for the working head, managing nozzle positioning, suction control, and communication with the machine system
Condition: Original New
Manufacturer: FUJI
Supplier: Various suppliers including SMT Xtra and SMT Spare Parts

Key Features & Functions

Centralized Control: Coordinates all functions of the working head, including nozzle movement and suction control
High Compatibility: Designed for FUJI NXT H24, H24G, and H24S working heads, ensuring seamless integration
Durable Construction: Built to withstand the demands of high-speed SMT production environments
Easy Maintenance: Facilitates straightforward replacement during maintenance or upgrades

Specifications & Details

Application & Replacement

Usage: Essential for the operation of FUJI NXT H24, H24G, and H24S working heads
Replacement Triggers:

Persistent errors or malfunctions in the working head
Communication issues between the head and the machine
Physical damage to the motherboard
Installation Tip: Ensure the machine is powered off and properly grounded before replacing the motherboard to prevent static discharge or electrical damage

Summary

The 2AGKHA020604 motherboard is a critical component for the operation of FUJI NXT H24, H24G, and H24S working heads. Its high compatibility, durability, and ease of installation make it an essential part for maintaining optimal performance in high-speed SMT production lines.

Related Accessories for FUJI 2AGKHA020604 (H24/H24G/H24S Motherboard)

Notes:

These accessories support the stable operation and precise placement performance of the H24 series working heads.
Regular maintenance of valves, filters, and motors is important to reduce machine downtime.
After major parts replacement, recalibration is recommended.

Related Part Numbers for 2AGKHA020604 (H24/H24G/H24S Motherboard)

FAQ Guide

Product Name: Working Head Motherboard

Part Number: 2AGKHA020604

Applicable Models: FUJI NXT H24, H24G, H24S Working Heads

1. What is the function of the 2AGKHA020604 motherboard?

This motherboard is the central control unit of the working head, managing nozzle movement, suction control, communication with the machine system, and coordinating vision and mechanical operations.

2. Which working heads are compatible with this motherboard?

It is compatible with FUJI NXT H24, H24G, and H24S working heads.

3. When should this motherboard be replaced?

Replace the motherboard if:

The working head shows persistent errors or malfunctions.
Communication issues occur between the head and the machine.
Physical damage or component failure is visible.
Calibration repeatedly fails after troubleshooting.

4. How to install or replace the motherboard?

Power off the machine before replacement.
Use proper anti-static precautions.
Carefully disconnect and reconnect all cables.
Run calibration and self-tests after installation as per machine guidelines.

5. Are there related parts to check during replacement?

Yes, inspect and if necessary replace:

Nozzle shafts and nozzles.
Mechanical valves.
R-axis motor and bearings.
Camera and vision system components.

6. Summary

The 2AGKHA020604 motherboard is essential for the stable and precise operation of FUJI NXT H24, H24G, and H24S heads. Proper installation and maintenance help ensure optimal machine performance and product quality.
