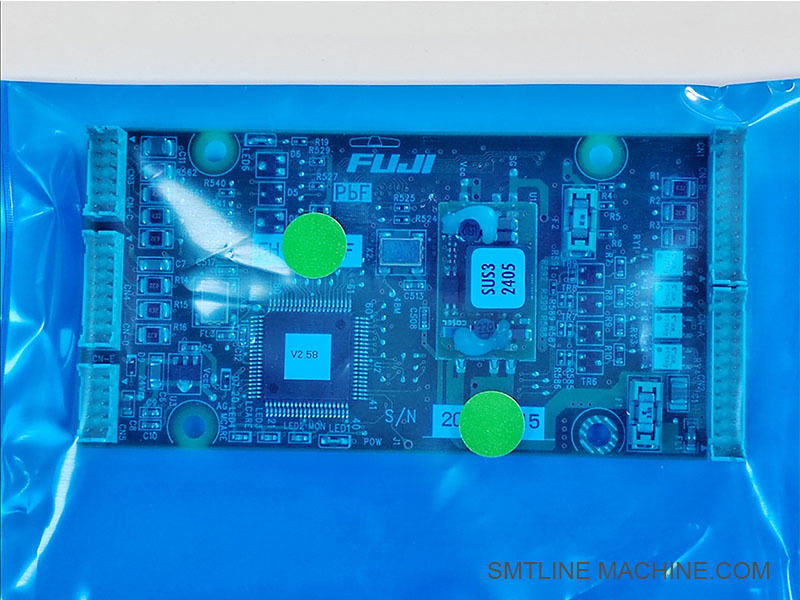

FUJI 2AGKHC000107 NXT H01 H08 H12S Working Head Mainboard SMT Spare Parts

FUJI2AGKHC000107 NXT H01 H08 H12S working head mainboard

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

Product Overview

Part Number: 2AGKHC000107
Compatible Heads: H01, H08, H12S
Function: Main control board for FUJI NXT series working heads
Model: FH1220BF
Part Number: XK0480
Manufacturer: FUJI
Condition: Original New
Lead Time: 1–3 days
Warranty: 3 months
Supplier: KingFei SMT Tech

Key Features & Functions

Central Control: Manages the operation of the working head, including nozzle positioning, suction control, and component placement.
High Compatibility: Designed for use with H01, H08, and H12S heads, ensuring seamless integration and performance.
Plug-and-Play: Comes with original data, requiring no setup—just install and operate.
Durable Construction: Built to withstand the demands of high-speed SMT production environments.
Easy Maintenance: Facilitates straightforward replacement during maintenance or upgrades.

Specifications & Details

Application & Replacement

Usage: Essential for controlling the functions of the H01, H08, and H12S working heads in FUJI NXT series machines.
Replacement Triggers:

Persistent error messages or system malfunctions.
Physical damage to the board.
Inability to communicate with other machine components.
Installation Tip: Ensure the machine is powered off and properly grounded before replacing the mainboard to prevent static discharge or electrical damage.

Summary

The 2AGKHC000107 mainboard is a critical component for the operation of FUJI NXT H01, H08, and H12S working heads. Its high compatibility, durability, and ease of installation make it an essential part for maintaining optimal performance in high-speed SMT production lines.

Related Accessories for FUJI 2AGKHC000107 (H01/H08/H12S Mainboard)

Notes:

These accessories work together with the 2AGKHC000107 mainboard to maintain the full functionality of the H01, H08, and H12S heads.
Regular maintenance of valves, filters, and motors is essential for stable operation.
After major replacements, recalibration is recommended to ensure placement accuracy.

Related Part Numbers for 2AGKHC000107 (H01/H08/H12S Mainboard)

FAQ Guide

Product Name: Working Head Mainboard

Part Number: 2AGKHC000107

Applicable Models: FUJI NXT H01, H08, H12S Working Heads

1. What is the function of the 2AGKHC000107 mainboard?

This mainboard is the central control unit of the working head, managing nozzle positioning, suction control, communication with the machine system, and coordinating vision and mechanical operations.

2. Which working heads are compatible with this mainboard?

It is compatible with FUJI NXT H01, H08, and H12S working heads.

3. When should this mainboard be replaced?

Replace the mainboard if:

The working head experiences persistent errors or malfunctions.
Communication issues occur between the head and the machine.
Physical damage or component failure is visible.
Repeated calibration failures happen after troubleshooting.

4. How to install or replace the mainboard?

Power off the machine completely before replacement.
Use proper anti-static precautions.
Carefully disconnect and reconnect all cables.
After installation, run calibration and self-tests as per machine guidelines.

5. Are there related parts to check during replacement?

Yes, inspect and if necessary replace:

Nozzle shafts and nozzles.
Mechanical valves.
R-axis motor and bearings.
Camera and vision system components.

6. Summary

The 2AGKHC000107 mainboard is essential for the stable and precise operation of FUJI NXT H01, H08, and H12S heads. Proper handling, installation, and maintenance are key to avoiding downtime and ensuring product quality.
