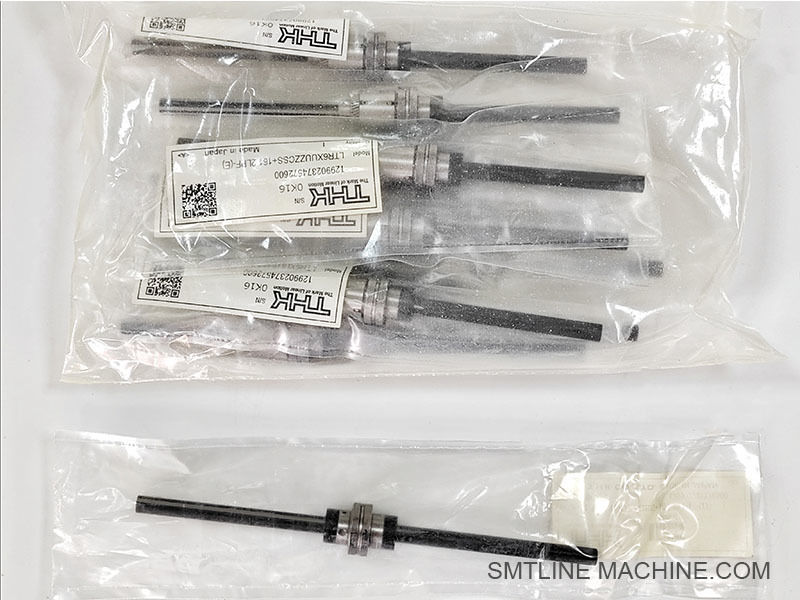

FUJI 2AGKHF007102 Suction Nozzle Rod High-Precision for H08M SMT Placement Head

FUJI2AGKHF007102 H08M working head suction nozzle rod

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

Product Overview

Part Number: 2AGKHF007102
Name: Suction Nozzle Shaft / Nozzle Holder
Compatible Head: FUJI NXT H08M Working Head
Function: Mechanically supports and positions the suction nozzles during the pick-and-place process in the H08M head
Material: High-strength plastic or metal (depending on design)
Origin: China
MOQ: 1 unit
Lead Time: 1–5 days (depending on supplier)
Packaging: Standard spare parts packaging

Key Features & Functions

Precision Alignment: Ensures accurate positioning of suction nozzles, critical for high-speed and precise component placement.
Durable Construction: Designed to withstand the mechanical stresses of the pick-and-place process, ensuring long service life.
Easy Installation: Facilitates straightforward replacement during maintenance or nozzle changes, minimizing downtime.
Compatibility: Specifically designed for the H08M head, ensuring optimal performance and reliability.

Specifications & Details

Application & Replacement

Usage: Critical for holding and actuating the suction nozzles during component pickup in the H08M working head.
Replacement Triggers:

Nozzle misalignment or wobble affecting placement accuracy.
Physical damage or wear on the shaft.
Persistent pick errors that cannot be resolved through calibration.
Maintenance Tip: Regularly inspect the shaft for wear and replace as necessary to maintain optimal performance.

Summary

The 2AGKHF007102 suction nozzle shaft is a vital component of the FUJI NXT H08M working head. It ensures precise positioning and stable operation of the suction nozzles, contributing to the high-speed and accurate placement of components in surface-mount technology (SMT) applications. Regular maintenance and timely replacement of this part are essential to sustain production quality and minimize machine downtime.

Related Accessories for FUJI 2AGKHF007102 (H08M Nozzle Shaft)

Notes:

The nozzle shaft (2AGKHF007102) works closely with nozzles, valves, and motors to ensure precise component pickup.
Regular maintenance of valves, filters, and seals helps maintain stable operation.
Calibration is recommended after replacing major components to ensure accurate placement.

Related Part Numbers for 2AGKHF007102 (H08M Nozzle Shaft)

FAQ Guide

Product Name: Suction Nozzle Shaft

Part Number: 2AGKHF007102

Applicable Machine: FUJI NXT H08M Working Head

1. What is the function of the 2AGKHF007102 nozzle shaft?

It holds and positions the suction nozzles in the H08M working head, ensuring precise and stable component pickup during the SMT placement process.

2. What types of nozzles are compatible with this shaft?

Various nozzles designed for the H08M head can be mounted on this shaft. Compatibility depends on nozzle size and shape—check FUJI specifications for exact matches.

3. When should this nozzle shaft be replaced?

Replace the shaft if:

There is visible wear, damage, or deformation.
Nozzle wobble or misalignment causes pick-and-place errors.
Maintenance or calibration fails to correct pickup inaccuracies.

4. Is calibration required after replacement?

Yes. After replacing the nozzle shaft, calibration is necessary to realign nozzles and ensure accurate placement.

5. Are there related parts to check or replace simultaneously?

It’s recommended to inspect:

Mechanical valves controlling nozzle air pressure.
Vacuum tubing and seals.
Filter screens to keep the system dust-free.
R-axis motor and bearings if worn.

6. Summary

The 2AGKHF007102 nozzle shaft is essential for the FUJI H08M working head’s suction nozzle stability and accuracy. Proper maintenance and timely replacement keep the placement process smooth and precise.
