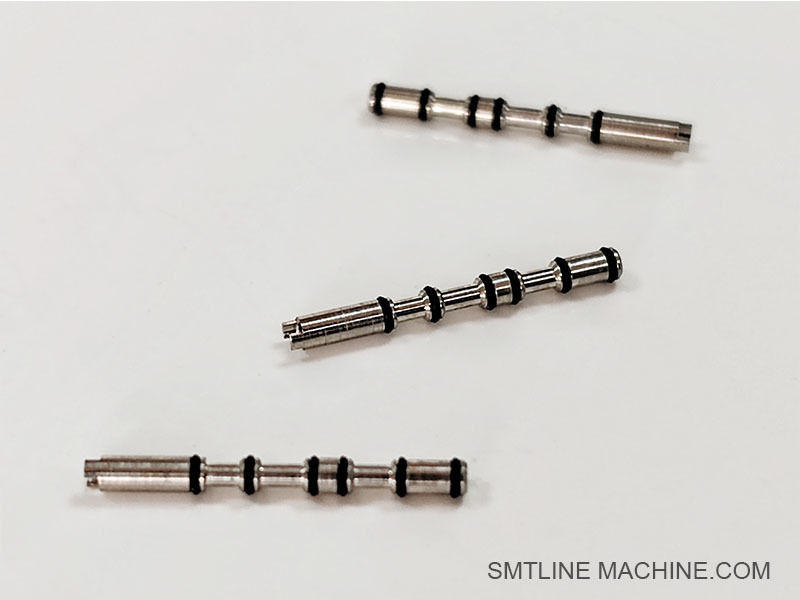

Product Introduction – FUJI 2AGTHA005807 Mechanical Valve (H24 / H24G / H24S Working Head)

Part Number:

2AGTHA005807

Product Name:

Mechanical Valve (Solenoid / Pneumatic Control Valve)

Category:

Pneumatic Control Component

Applicable Models:

FUJI NXT H24, H24G, and H24S Working Heads

Product Overview

The FUJI 2AGTHA005807 is a mechanical valve integral to the pneumatic control system of the FUJI H24 series working heads. It typically functions as a solenoid valve or pneumatic valve that regulates the airflow for vacuum suction, nozzle actuation, or other pneumatic movements within the head.

This valve controls the application and release of vacuum or pressure required for component pickup, placement, and nozzle cleaning operations.

Key Features

High-precision pneumatic control ensuring reliable and quick response
Fast switching times for high-speed pick-and-place cycles
Durable construction designed to withstand frequent actuation
Sealed design to prevent air leaks and maintain vacuum integrity
Compact size for integration within tight working head spaces

Typical Specifications (Approximate)

Function in System

Controls the vacuum on/off for the nozzle suction
Operates other pneumatic functions like nozzle blow-off or clamping
Works in conjunction with vacuum pumps, sensors, and the head controller

Maintenance & Replacement Notes

Regularly inspect for air leaks or mechanical wear
Clean or replace valve if sticking or response delays occur
Use genuine FUJI replacement parts to maintain system reliability
Avoid contamination by dust and moisture

Related Accessories – 2AGTHA005807 Mechanical Valve

Related Part Numbers – 2AGTHA005807 Mechanical Valve

Notes:

Use only genuine FUJI parts to ensure compatibility and reliable operation.
Valve replacement may require inspection or replacement of vacuum hoses and solenoid coils.
Valve performance directly affects vacuum suction reliability and placement accuracy.

FAQ Guide – FUJI 2AGTHA005807 Mechanical Valve (H24 / H24G / H24S Working Heads)

1. What is the function of the mechanical valve?

Answer:
This valve controls the pneumatic airflow within the working head, mainly managing the vacuum supply to the nozzle shaft for component pickup and release. It also operates other pneumatic functions such as nozzle blow-off.

2. Which working heads use this valve?

Answer:

H24
H24G
H24S
These are FUJI NXT series working heads.

3. What components work together with this valve?

4. What are common symptoms of valve failure?

Nozzle fails to pick up components
Vacuum pressure loss or instability
Slow or unresponsive valve actuation
Vacuum leaks or audible hissing noises
Machine alarms related to vacuum system

5. How do I maintain or inspect the valve?

Check for air or vacuum leaks around fittings and tubing
Inspect solenoid coil for electrical faults
Clean valve ports from dust or debris
Replace valve if actuation is slow or sticking occurs
Use genuine FUJI replacement parts for repairs

6. Can the valve be replaced independently?

Answer:
Yes. Replacement involves disconnecting vacuum tubing, removing mounting hardware, and disconnecting electrical connectors. Proper reinstallation and testing are necessary to ensure vacuum integrity.

7. Technical Overview

8. Where to get genuine replacement parts?

Answer:
Contact FUJI authorized distributors or certified SMT service providers. Provide exact head model and part number.

9. Additional tips

Inspect vacuum hoses regularly for wear or damage
Check electrical connections for corrosion or looseness
Calibrate vacuum sensors and confirm system operation after valve replacement
