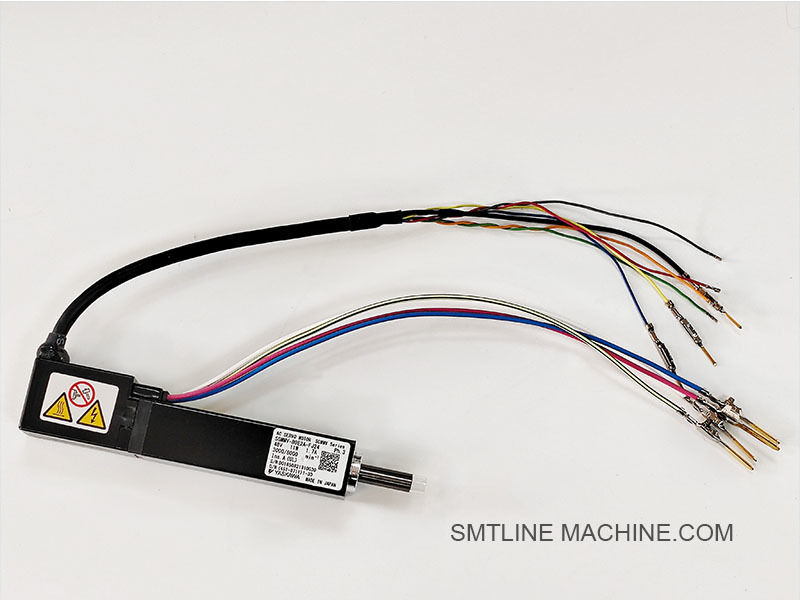

FUJI 2MGTHA080003H24 H24G H24S Work Head Motor SMT Spare Parts

FUJI 2MGTHA080003H24 H24G H24S work head motor
Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

Product Introduction – FUJI 2MGTHA080003 H24/H24G/H24S Working Head Motor

Part Number: 2MGTHA080003

Product Name: Working Head Motor

Category: Drive Motor / Actuator

Applicable Models: FUJI NXT H24, H24G, H24S Working Heads

Product Overview

The FUJI 2MGTHA080003 is a precision drive motor used in the H24, H24G, and H24S working heads of FUJI NXT series SMT machines. This motor is responsible for powering one or more internal motion axes of the working head—typically the Q-axis (rotation) or Z-axis (vertical movement) depending on its configuration.

It is a critical component that ensures accurate, smooth, and high-speed movement during pick-and-place operations, contributing directly to placement speed and precision.

Key Features

High Torque, Compact Design
Provides powerful and responsive motion in a compact footprint for head integration.

Integrated with Encoder (optional)
May include feedback mechanisms for closed-loop control of movement and positioning.

Supports High-Speed Operation
Designed to meet the demands of modern SMT production lines with high cycle rates.

Reliable and Durable Construction
Built to operate continuously with minimal wear under production conditions.

Applications

Powers the Q-axis (nozzle rotation) or Z-axis (nozzle up/down) in FUJI H24 series working heads
Enables precise component pickup, rotation, and placement
Works in sync with vacuum, bearing, and encoder systems for full motion control

Related Components

Specifications (Typical)

Type: Brushless DC Servo Motor or Stepper Motor (check variant)
Voltage: 24V or machine-specific rating
Output: Drives Q-axis or Z-axis motion
Mounting: Internal to head module
Control Interface: Integrated into FUJI NXT control system
With Encoder: Optional closed-loop feedback depending on config

Ordering Notes

Verify your head model (H24, H24G, or H24S) and which axis this motor controls.
Only use genuine FUJI parts for precise motion synchronization and longevity.
Replacement should follow FUJI's disassembly and ESD handling guidelines.

Related Accessories – FUJI 2MGTHA080003 Working Head Motor

Related Part Numbers – FUJI 2MGTHA080003 Working Head Motor System

Notes:

Always match the motor part number with the correct head variant and axis (Q or Z).
Some motors are axis-specific; verify whether 2MGTHA080003 controls Q-axis or Z-axis in your application.
When replacing the motor, it is recommended to also inspect the bearing, encoder, shaft, and connector condition.

FAQ Guide – FUJI 2MGTHA080003 H24/H24G/H24S Working Head Motor

1. What is the function of the FUJI 2MGTHA080003 motor?

Answer:
The 2MGTHA080003 is a precision drive motor used in the FUJI NXT H24, H24G, and H24S working heads. It drives one of the main internal axes—typically the Q-axis (rotation) or Z-axis (vertical stroke)—to enable accurate pick-and-place motion during high-speed SMT operations.

2. Which axis does this motor control?

Answer:
Depending on the configuration of the head model, it may control:

The Q-axis (rotational orientation of the nozzle)
Or the Z-axis (up-down movement of the nozzle)

Check machine specifications or FUJI service documentation to confirm for your model.

3. What head models are compatible with this motor?

Answer:

H24 Working Head
H24G Working Head
H24S High-Speed Working Head

These heads are used in FUJI NXT II and NXT III platforms.

4. What are the signs of motor failure?

Answer:

Irregular or jerky motion in nozzle rotation or vertical stroke
Motor not responding or overheating
Encoder or axis alignment errors
Placement misalignment or head axis alarms on the machine
Audible noise, vibration, or abnormal behavior during operation

5. Can this motor be repaired?

Answer:
Typically, this motor is replaced as a complete unit rather than repaired, due to precision requirements. Always use a genuine FUJI replacement (P/N: 2MGTHA080003) for proper performance.

6. What components are connected to or work with this motor?

7. Technical Characteristics (Typical)

Type: Brushless DC servo or stepper motor
Voltage: 24V or as specified by FUJI
Mounting: Fixed inside the working head housing
Control: Closed-loop with optional encoder feedback
Speed / Torque: Tuned for high-speed placement dynamics

⚠ 8. How to safely replace this motor?

Answer:

Power off the machine and follow ESD safety procedures
Remove working head from the machine
Disassemble head housing carefully
Disconnect wiring and mounting brackets
Replace motor with the same part number (2MGTHA080003)
Reapply thermal grease or insulation where required
Re-calibrate axis if necessary after replacement

9. Is it sold separately or in a kit?

Answer:

Typically sold individually
May be part of a head rebuild kit or service package depending on the distributor

10. Where can I get support or spare parts?

Answer:

From official FUJI SMT distributors and service partners
Make sure to confirm the correct head model and axis before ordering
Support for installation and calibration may be provided by FUJI-certified technicians
