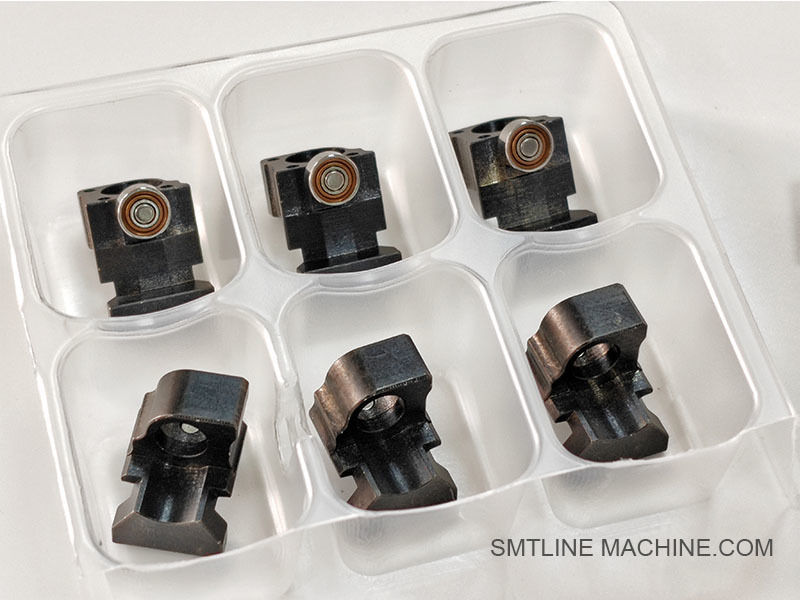

Product Introduction – FUJI AA9FL05 / 2AGKHA001900 V12 Working Head Roller Arm

Part Number(s):

AA9FL05
2AGKHA001900 (Alternate or manufacturer reference number)

Product Name:

V12 Working Head Roller Arm

Category:

Mechanical Transmission Component / Internal Linkage

Applicable Model:

FUJI NXT V12 Working Head

Product Overview

The FUJI AA9FL05 / 2AGKHA001900 Roller Arm is a critical mechanical linkage component inside the V12 working head of Fuji NXT series pick-and-place machines. It plays a key role in the internal motion transmission mechanism, often interacting with the cam, spring, or drive shaft systems that move the suction nozzle up and down.

Key Features

Precision Machined Arm
Ensures smooth and accurate motion of internal nozzle or head components.

High Wear Resistance
Made from hardened metal alloys or treated steel for long life under high-speed conditions.

Optimized for V12 Head Design
Specifically engineered to fit and function within the geometry of the Fuji V12 high-speed working head.

Smooth Bearing Interface
May include or interact with rollers or bushings to reduce friction during operation.

Applications

Converts rotational or linear input from the head’s actuator system into controlled vertical motion for component pick-up and placement.
Supports the synchronized movement of the V12’s multiple nozzles in high-speed SMT processes.

Related Components

Specifications (Typical)

Material: Hardened steel or high-grade alloy
Surface Finish: Anti-friction treated or coated
Function: High-speed, durable linkage to transmit mechanical force within V12 head
Precision: Tight tolerance for smooth motion and nozzle stability

Ordering Notes

Always confirm with V12 head version before ordering (early vs late revisions may differ).
Compatible with FUJI NXT V12 working heads only.
Recommended to replace with OEM parts for precise motion control and mechanical balance.

Related Accessories – FUJI AA9FL05 V12 Working Head Roller Arm

Notes:

These accessories work together to ensure smooth, precise motion of the roller arm within the V12 working head.
Regular maintenance and lubrication help extend the service life of these components.
Always use OEM parts for compatibility and reliability in high-speed SMT environments.

Related Part Numbers – FUJI AA9FL05 V12 Working Head Roller Arm Assembly

Notes:

All parts are designed specifically for FUJI NXT V12 working heads.
Compatibility should be confirmed with your machine’s head version and revision.
OEM parts are recommended to maintain precision and reliability.

FAQ Guide – FUJI AA9FL05 / 2AGKHA001900 V12 Working Head Roller Arm

1. What is the FUJI AA9FL05 roller arm used for?

Answer:
The AA9FL05 roller arm is a key mechanical linkage inside the V12 working head of Fuji NXT pick-and-place machines. It transmits motion within the head to enable precise vertical movement of the suction nozzles for component pick-and-place.

2. Which Fuji machine models use this part?

Answer:

Specifically designed for the FUJI NXT V12 working head series.
Not compatible with other head types such as H04, H08, H12, or H24.

3. What materials is the roller arm made from?

Answer:

Manufactured from hardened steel or treated alloy to withstand high-speed mechanical stress and wear.
Surface is treated to reduce friction and extend durability.

4. What are common symptoms of a worn or damaged roller arm?

Answer:

Increased noise during head operation.
Reduced accuracy or instability in nozzle movement.
Visible wear, deformation, or cracking on the arm or its pivot points.
Jamming or sticking in the working head mechanism.

5. What other components interact with the roller arm?

6. Is the roller arm sold individually or as part of a kit?

Answer:

The AA9FL05 roller arm is usually available as an individual replacement part.
Some suppliers may offer repair kits including the arm, pin, spring, and related components.

7. How should the roller arm be maintained?

Answer:

Regular inspection for wear and damage is recommended.
Keep the pivot points and contact surfaces lubricated with appropriate grease.
Replace if signs of wear or deformation appear to maintain precision in nozzle movement.

8. Where can I purchase genuine FUJI AA9FL05 parts?

Answer:

Authorized Fuji distributors and service centers.
Specialized SMT parts suppliers such as SMTBOX, EAH Industrial, and others.
Verify part number and compatibility before purchasing.

9. Can aftermarket parts be used?

Answer:

Aftermarket parts may be available but OEM parts are strongly recommended to ensure precision, durability, and compatibility.
Non-OEM components may affect head performance and lead to premature wear.
