FUJI AA30A05 H12S Working Head Suction Nozzle Rod SMT Spare Parts

FUJIAA30A05 H12S working head suction nozzle rod
Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

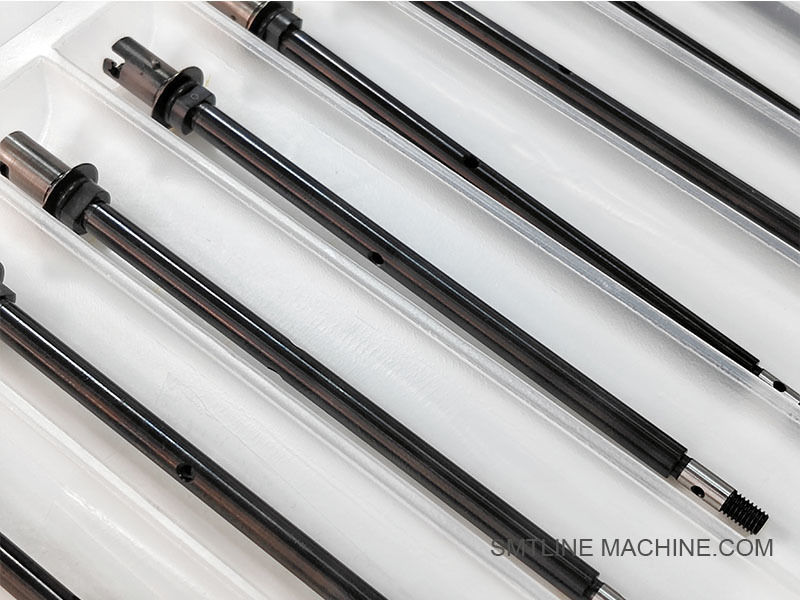

Product Introduction – FUJI AA30A05 H12S Working Head Suction Nozzle Rod

Part Number: AA30A05

Product Name: Suction Nozzle Rod

Category: Nozzle Assembly Component / Vacuum Mechanism

Used In: FUJI NXT H12S Working Head

Product Overview

The FUJI AA30A05 Suction Nozzle Rod is a core mechanical component used in the H12S working head of FUJI NXT pick-and-place machines. It forms part of the suction nozzle assembly, which picks up components using vacuum pressure and places them precisely on printed circuit boards (PCBs) during the SMT process.

Key Features

Precision Machined
Designed to Fuji’s original tolerances for smooth, accurate movement and alignment within the working head.

Vacuum-Ready Design
Enables stable suction transfer of components by forming a sealed path between the nozzle tip and the vacuum source.

High Durability
Manufactured from robust materials such as stainless steel or alloy steel to resist wear from repetitive vertical movement and vacuum force.

Designed for H12S Head
Fully compatible with the H12S model in the NXT series, ensuring direct fit and functional integrity.

Easy Maintenance
Supports tool-free or minimal-effort replacement during routine working head servicing.

Applications

Core component of the suction nozzle mechanism in FUJI NXT H12S working heads.
Enables vacuum-based pick-up of electronic components from feeders.
Works in combination with nozzle tips, springs, holders, and vacuum lines.

Related Parts

Specifications (Typical)

Material: Hardened stainless steel or treated high-strength alloy
Tolerance: ±0.01 mm (high precision)
Length & Diameter: Specific to the H12S nozzle design
Surface Finish: Smooth, wear-resistant, vacuum-compatible

Ordering Notes

Available individually or in a full nozzle rod assembly kit
Confirm compatibility with H12S working head before purchase
OEM recommended for performance and durability in high-speed SMT lines

Related Accessories – FUJI AA30A05 Suction Nozzle Rod (for H12S)

Notes:

These accessories are designed specifically for the FUJI NXT H12S working head.
Do not interchange with parts from H12HS, H08M, or other working head types.
Recommended to inspect and replace springs, sleeves, and tips regularly to maintain performance and reduce placement errors.

Related Part Numbers – FUJI AA30A05 Suction Nozzle Rod (H12S)

Notes:

All parts are designed for FUJI NXT H12S working head.
Part compatibility may vary slightly based on head revision or machine series (NXT I, II, III).
Use original FUJI part numbers to ensure proper fit and reliability.

FAQ Guide – FUJI AA30A05 H12S Working Head Suction Nozzle Rod

1. What is the function of the FUJI AA30A05 suction nozzle rod?

Answer:
The AA30A05 is a core mechanical part of the H12S working head in Fuji NXT machines. It connects the suction nozzle to the internal vacuum system and moves vertically to enable high-speed, accurate pick-and-place operations.

2. Which Fuji heads is it used with?

Answer:

Specifically designed for the FUJI NXT H12S working head.
Not compatible with other heads like H12HS or H08M unless otherwise specified.

3. What is it made of, and why is that important?

Answer:

Made from hardened stainless steel or precision alloy.
This provides durability, vacuum integrity, and smooth motion during repeated cycles.

4. How is the nozzle rod maintained or replaced?

Answer:

Clean regularly to remove dust and debris that can block vacuum flow.
Inspect for bending, wear, or surface damage.
Replace during head servicing if performance degrades or alignment issues appear.

5. What symptoms indicate the rod needs replacement?

Answer:

Component pick-up failures or misalignment.
Reduced vacuum strength at the nozzle.
Nozzle rod sticking, jamming, or wobbling.
Physical damage to the rod or tip mount.

6. What other components work with this nozzle rod?

7. Is the AA30A05 sold individually or as a kit?

Answer:

It is typically sold individually.
Some suppliers may offer it as part of a nozzle rod repair or rebuild kit, including spring, holder, and tip.

8. What are the dimensional or technical specs?

Answer:

Material: Stainless steel or coated alloy
Motion: Linear, Z-axis up/down driven by spring and pneumatic or motorized action
Fit Tolerance: High precision, ±0.01 mm typical
Surface Finish: Polished for low resistance and airtight vacuum transfer

9. Where can I buy AA30A05 and related parts?

Answer:

Authorized FUJI distributors
SMT component suppliers such as SMTBOX, EAH Industrial, and others
Always confirm compatibility with H12S working head model

10. Can non-OEM (aftermarket) parts be used?

Answer:

Possible, but OEM parts are strongly recommended.
Aftermarket rods may not meet Fuji’s precision standards and could cause alignment or vacuum issues.
