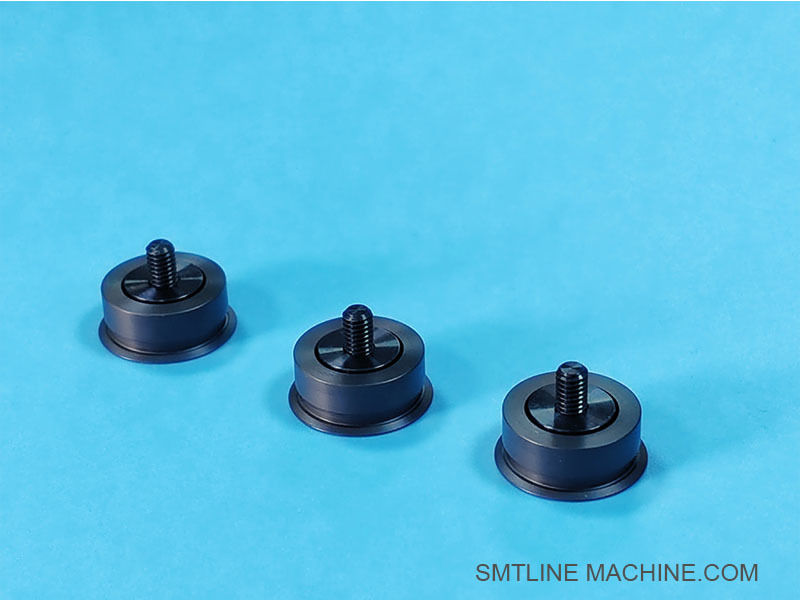

Durable FUJI AB07600 NXT Track Pulley SMT Machine Spare Part

FUJIAB07600 NXT track pulley PULLEY (corresponding to thin plate)
Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

Product Introduction – FUJI AB07600 NXT Track Pulley (Thin Plate Type)

Part Number: AB07600

Product Name: Track Pulley (corresponding to thin plate)

Category: Transmission / Conveyor Component

Used In: FUJI NXT Series SMT Machines

Product Overview

The FUJI AB07600 Track Pulley is a precision-machined transmission component used in the track unit (conveyor system) of FUJI NXT pick-and-place machines. It corresponds specifically to the "thin plate type" (i.e., a lighter or more compact guide track or carrier), ensuring proper tension and alignment of the conveyor belt or feeder plate transport system.

Key Features

High Precision Design
Ensures accurate tracking and belt guidance for consistent component feeding during high-speed SMT operation.

Thin Plate Compatibility
Specially designed to match thin track plates used in NXT conveyor modules, contributing to a more compact and lightweight setup.

Durable Construction
Made from wear-resistant materials (e.g., treated aluminum or steel) for extended life under repetitive motion and tension stress.

Smooth Rotation
Low-friction inner bearing assembly enables smooth belt or plate movement without jerking or misalignment.

OEM Specification
Manufactured to meet FUJI’s original equipment specifications, ensuring full compatibility and easy replacement.

Applications

NXT conveyor system track units
Feeder transport mechanisms involving thin guide plates
SMT lines requiring consistent, high-speed component flow

Related Parts

Typical Specs (for reference only)

Outer Diameter: ~15–25 mm
Material: Anodized aluminum or stainless steel
Inner Bore: Designed for standard FUJI pulley shafts
Finish: Smooth/anti-wear coating

Ordering Notes

Confirm whether your track uses thin or standard guide plates before ordering
Usually sold individually or in small kits with axle and bracket
Suitable for preventive maintenance or track retrofitting

Related Accessories for FUJI AB07600 Track Pulley (Thin Plate Type)

Notes:

AB07600 is optimized for thin plate tracks; using it on standard plates may result in misalignment or wear.
Most related parts are compatible with NXT I/II/III machines, but model confirmation is always recommended.
Assemblies (e.g., AA1PZ00) are preferred for quick replacement during maintenance cycles.

Related Part Numbers – FUJI AB07600 Track Pulley (Thin Plate Type)

Tip:

If you’re replacing or servicing a section of the NXT track unit, you may also need to check the part numbers for:

Feeder inlet/outlet covers
Plate spacers or washers
Roller bearings (if AB07600 has a replaceable type)

FAQ Guide – FUJI AB07600 NXT Track Pulley (Thin Plate Type)

1. What is the FUJI AB07600 Track Pulley used for?

Answer:
The AB07600 is a precision pulley used in the track unit of FUJI NXT pick-and-place machines. It is specifically designed to work with thin guide plates in the conveyor or feeder track mechanism, helping guide or tension the belt or transport plate smoothly.

2. What is the difference between AB07600 and AB07500?

Answer:

AB07600 is designed for thin track plates
AB07500 is for standard (thicker) plates
Using the incorrect type may lead to misalignment, excessive wear, or unstable track motion.

3. What machines is it compatible with?

Answer:

Fuji NXT I / II / III Series
Installed within the conveyor track or feeder plate guide systems
Compatibility depends on track plate type and configuration (thin vs. standard)

4. What are the related parts?

Answer:

5. How is the AB07600 pulley installed?

Answer:

Mount the pulley onto the AB08200 shaft
Align with AB08300 bracket and fasten into track base
Ensure the pulley spins freely and is aligned with the guide plate
Apply tension spring or belt if required

Always power off the machine and follow Fuji maintenance procedures during installation.

6. How often should it be replaced?

Answer:

Inspection: Every 3–6 months during preventive maintenance
Replacement: As needed — signs include wobble, resistance, or noise during conveyor movement
Heavy usage environments may require more frequent inspection

7. Is it sold individually or in sets?

Answer:

AB07600 is sold as a single pulley
Also available as part of assembly kit (e.g., AA1PZ00), including shaft and bracket
Kits are preferred for time-saving replacements

8. What are the dimensions/materials?

Answer (approximate, may vary):

Material: Precision-machined aluminum or steel
Outer Diameter: ~15–25 mm
Inner Bore: Fits standard FUJI pulley shaft (AB08200)
Surface: Smooth / wear-resistant

9. Where can I order the AB07600?

Answer:

FUJI official distributors
SMT spare parts suppliers (e.g., SMTBOX, EAH Industrial, Alibaba)
Be sure to confirm you’re purchasing the thin plate version

10. Can I use aftermarket pulleys?

Answer:
Yes, but:

They must match the exact dimensions and specs of the AB07600
OEM parts are recommended for long-term reliability and compatibility
Using incorrect pulleys may void equipment warranty or cause track issues
