Durable FUJI AB28300 Fan Filter Screen SMT Machine Spare Part

FUJIAB28300 Fan Filter Screen
Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

Product Overview: FUJI AB28300 Fan Filter Screen

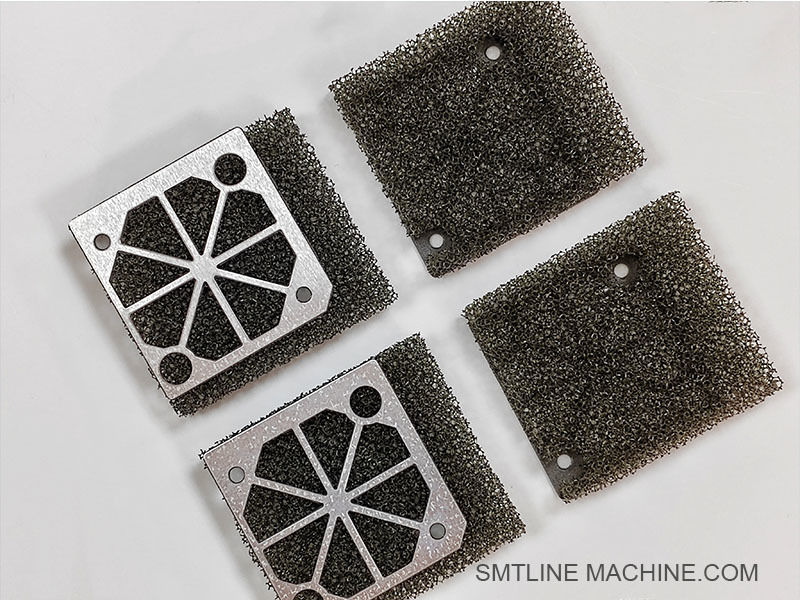

The FUJI AB28300 Fan Filter Screen—also known as AA8CS00 or 2MGTSA020—is a precision-engineered cooling fan intake filter designed specifically for the Y‑axis cooling system of the Fuji NXT generation pick‑and‑place machines.

Key Features

Custom Fit & OEM Compatibility
Designed to match Fuji’s factory standards for seamless integration into NXT‑series mounters, this filter screen helps maintain optimal cooling airflow while ensuring reliable protection .

High‑Efficiency Mesh Structure
Constructed using a fine mesh screen wrapped in a protective liner, it provides effective filtration to block dust and debris without reducing cooling performance .

Durable Construction
The filter features a perforated metal outer frame that protects the mesh from damage and supports longevity—designed for industrial environments with frequent fan cycling .

Precision Filtration
With a filtration rating around 200 microns (0.2 mm), this screen effectively captures medium-sized particulates while allowing unimpeded airflow—critical to maintaining optimal thermal performance of internal components .

Easy Installation & Replacement
Engineered for simple replacement during routine machine maintenance, it helps reduce downtime and ensures continued high performance.

Packaging & Supply

MOQ: Typically sold per piece/pack (MOQ may vary based on supplier)
Packaging: Standard export packing—box, wooden crate, or vacuum sealed depending on supplier preference .
Lead Time: Generally 1–7 days after order, depending on inventory—customary lead time is 5–7 business days .

Maintenance Tips

Clean or replace the filter regularly based on machine operating conditions—typically every 3–6 months or as part of scheduled preventative maintenance.
Avoid high-pressure air for cleaning to prevent mesh deformation or weakening of the metal frame.

Applications

Ideal for:

Fuji NXT pick‑and‑place mounters (various generations)
SMT production lines that require consistent cooling and dust-free environments
Preventive maintenance kits for SMT engineers and service teams

Related Accessories for FUJI AB28300 Fan Filter Screen

Applicable Models

These accessories are primarily used in:

Fuji NXT I / NXT II / NXT III
Cooling systems located on the Y-axis or main controller area

Related Part Numbers for FUJI AB28300 Fan Filter Screen

Tips:

Some part numbers are machine-dependent—please verify your Fuji machine model (e.g. NXT II M3S, NXT III M6, etc.) for accurate compatibility.
AB28300 is sometimes bundled with fans or modules under a single assembly number. Always clarify when ordering.
If you're replacing the full cooling unit, 2MGTSA020801 (AA8CS00) will often cover all needed parts.

FAQ Guide – FUJI AB28300 Fan Filter Screen

1. What is the FUJI AB28300 Fan Filter Screen used for?

Answer:
The AB28300 is a dust filter screen installed at the fan intake of the Y-axis cooling system in Fuji NXT pick-and-place machines. It prevents dust, debris, and particulate matter from entering the internal cooling fans and damaging sensitive electronics.

2. What machines is it compatible with?

Answer:

Fuji NXT I / NXT II / NXT III
Typically installed in the Y-axis control unit or main chassis
May also appear in cooling units near the working head motherboard

Confirm machine compatibility before purchase. Variants or revisions may use slightly different mounts.

3. What is the part number for this component?

Answer:

Primary Part Number: AB28300
Related/Assembly Part Numbers:

2MGTSA020801
AA8CS00 (alternate for the cooling unit containing AB28300)
AB28350 (fan guard)
AB18200 / AB18250 (cooling fans used with this filter)

4. How is it installed or replaced?

Answer:

Power off the machine and unplug the cooling fan module.
Remove the fan guard or cover plate using standard screws or clips.
Extract the old AB28300 filter.
Insert the new filter screen.
Reattach the cover and verify airflow direction.
Power on and test fan operation.

Maintenance Tip: Handle with care to avoid damaging the mesh or aluminum frame.

5. How often should the filter be replaced?

Answer:

Replace every 3–6 months, depending on operating environment.
In dusty or high-usage factories, inspect monthly and clean or replace as needed.
Reduced airflow or higher fan noise may indicate clogging.

6. What are the dimensions and materials?

Answer:

Size: Typically ~100mm × 100mm (confirm with supplier)
Structure:

Fine mesh filter (dust cotton or screen)
Rigid aluminum or plastic frame
Air permeability: High-efficiency filtration with minimal resistance

7. Is it sold individually or in sets?

Answer:

Available per piece, but often sold in packs of 5, 10, or 20
Bulk orders may include the complete cooling module with fan and wiring
OEM and third-party equivalents available

8. Where can I order it?

Answer:

Fuji SMT parts suppliers (online or authorized distributors)
SMT aftermarket vendors like SMTBOX, EAH Industrial, Alibaba
Check availability by searching for part number: AB28300 or 2MGTSA020801

9. What related accessories should I check?

Answer:

Fan Guard: AB28350
Cooling Fan: AB18200 / AB18250
Cooling Unit: 2MGTSA020801
Wiring Harness: AA84000

10. Who should I contact for technical support?

Answer:

Fuji official technical support or your SMT line service provider
If using third-party replacements, verify warranty or installation guidance with the vendor
