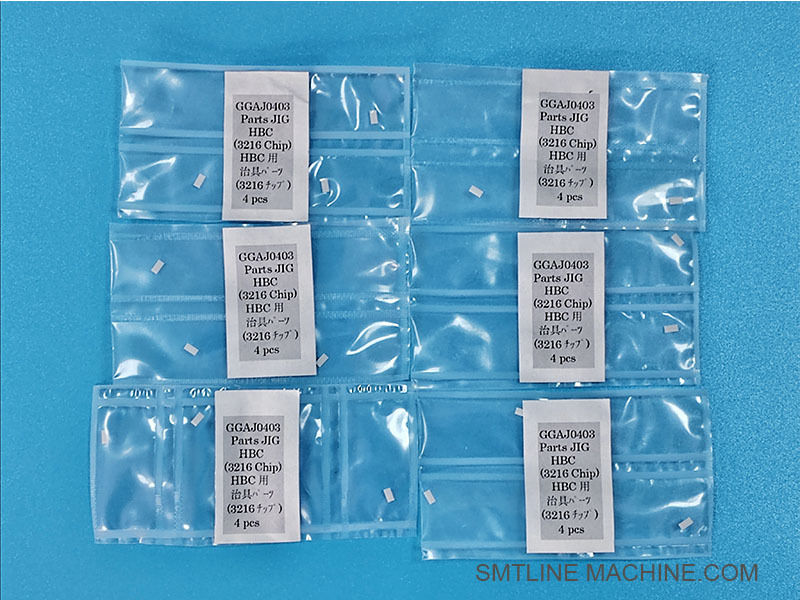

FUJI 3216 Calibration White Tablets GGAJ0403 for SMT Placement Accuracy

FUJIGGAJ0403 3216 Calibration White Tablets
Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery


Product Introduction – FUJIGGAJ0403

Part Number: FUJIGGAJ0403
Product Name: 3216 Calibration White Tablets
Category: Calibration Standard / Optical Calibration Tool

Description:

The 3216 Calibration White Tablets are precision-manufactured calibration standards used primarily in optical inspection and vision systems for Fuji SMT machines and other high-precision equipment.

These tablets provide a consistent, uniform white reference surface that ensures accurate calibration of camera systems, lighting setups, and image processing algorithms. They are essential for maintaining optimal image quality and measurement accuracy during routine maintenance or system setup.

Key Features:

High uniformity and diffuse white surface
Stable color and reflectance characteristics
Durable and resistant to environmental influences
Ideal for camera and vision system calibration
Compact and easy to handle during maintenance

Typical Applications:

Calibration of vision systems in Fuji SMT pick-and-place machines
Standardizing illumination for optical inspection
Ensuring repeatability in image recognition and alignment processes

Compatibility:

Used with Fuji vision inspection modules and other optical devices requiring white reference calibration
Suitable for laboratory and field calibration tasks

Related Accessories for FUJIGGAJ0403 – 3216 Calibration White Tablets

Related Part Numbers – Calibration White Tablets and Accessories

FAQ Guide – FUJIGGAJ0403 3216 Calibration White Tablets

Part Number: FUJIGGAJ0403
Product Name: 3216 Calibration White Tablets
Category: Optical Calibration Standard

1. What is the purpose of the 3216 Calibration White Tablets?

They provide a uniform white reference surface used to calibrate and verify the accuracy of vision systems in Fuji SMT machines, ensuring consistent image quality and measurement reliability.

2. What machines or systems use these tablets?

Primarily used in Fuji pick-and-place machines’ vision systems, but also applicable to other optical inspection equipment requiring white calibration standards.

3. How do I use the calibration tablets?

Place the tablet in the camera’s field of view during the calibration routine to standardize lighting and color response. Follow the machine’s calibration procedure to complete the process.

4. How often should calibration be performed?

Regular calibration is recommended according to the machine’s maintenance schedule or whenever image quality or placement accuracy degrades.

5. Can the tablets be cleaned?

Yes, clean with a lint-free cloth and appropriate optical cleaner to maintain a pristine surface without scratches or residue.

6. What are signs the tablets need replacement?

Visible scratches or surface damage
Discoloration or staining
Reduced calibration accuracy or inconsistent results

7. Are there complementary calibration tools?

Yes, complementary items include black calibration tablets, gray scale charts, and color reference cards to achieve full optical calibration.

8. How should the tablets be stored?

Store in a clean, dust-free, and anti-static container to prevent contamination and physical damage.
