FUJI H24 H24S Working Head Fluorescent Aperture 2MGTHA0586002MGTA072001

FUJIH24 H24S working head fluorescent aperture 2MGTHA0586002MGTA072001
Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

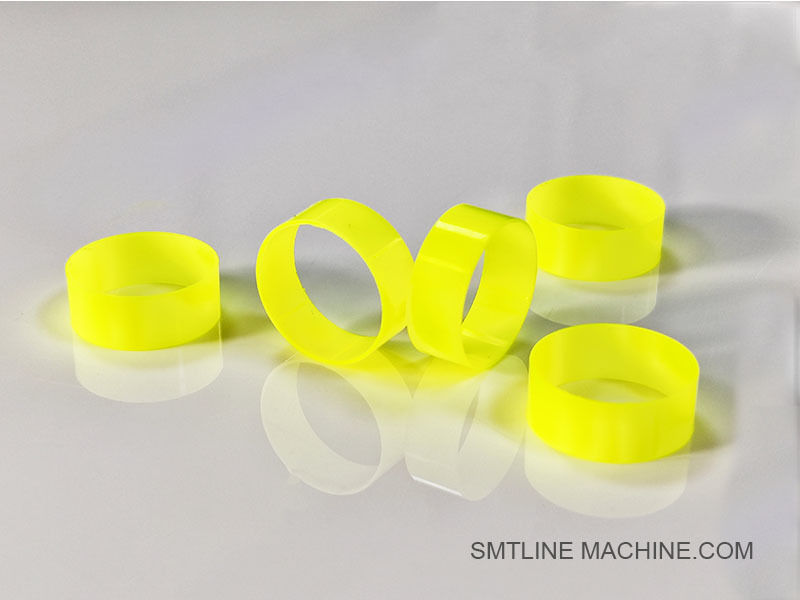

Product Introduction – FUJIH24 H24S Working Head Fluorescent Aperture

Part Numbers: 2MGTHA058600 / 2MGTA072001
Component Name: Fluorescent Aperture
Applicable Head Model: Fuji NXT H24 / H24S High-Speed Working Head
Category: Optical Component / Illumination Unit

Description:

The fluorescent aperture (part numbers 2MGTHA058600 and 2MGTA072001) is an integrated optical component used in Fuji H24/H24S working heads to assist the vision system in recognizing and aligning components during pick-and-place operations.

It acts as both a light diffuser and focusing element, guiding fluorescent illumination evenly across the field of view. This enables the camera to capture high-contrast, well-lit images of small components, improving placement accuracy.

Key Features:

Designed specifically for H24 and H24S working heads
Ensures uniform light distribution for component inspection
Enhances camera accuracy in high-speed mounting environments
Durable and resistant to optical degradation
Works in conjunction with the vision lighting system

Typical Applications:

Component recognition and alignment
Solder pad/lead inspection
Fiducial mark detection on PCBs
High-speed SMT placement operations

Material & Construction:

Optical-grade resin or acrylic with integrated light-diffusing properties
Anti-reflective surface for optimal vision performance

Compatibility:

Fully compatible with Fuji NXT H24 / H24S heads
May be used alongside camera modules, ring lights, and sensor systems

Related Components – H24/H24S Working Head Fluorescent Aperture

These parts work together in the H24/H24S working head to support vision-based precision component placement in Fuji NXT SMT machines.

Related Part Numbers – H24 / H24S Working Head Fluorescent Aperture

FAQ Guide – FUJIH24 / H24S Working Head Fluorescent Aperture

Part Numbers: 2MGTHA058600 / 2MGTA072001
Applicable Head: Fuji NXT H24 / H24S High-Speed Placement Head
Component Type: Fluorescent Aperture (Optical Illumination Component)

1. What is the function of this component?

The fluorescent aperture ensures uniform light diffusion in the vision system of the H24 / H24S head, allowing the camera to capture clear, high-contrast images of components and fiducials during placement operations.

2. Where is it installed?

It is installed above the camera or around the optical path of the vision system inside the working head. It functions in coordination with the LED ring light and camera unit.

3. What’s the difference between 2MGTHA058600 and 2MGTA072001?

2MGTHA058600: Original part
2MGTA072001: Functionally similar or updated version; both are interchangeable depending on head revision
Always verify compatibility based on head serial number or Fuji service documentation.

4. What are symptoms of failure or wear?

Blurry or low-contrast vision images
Irregular lighting patterns in captured images
Failed component recognition
Frequent fiducial detection errors

5. When should it be replaced?

During preventive maintenance if image quality degrades
When scratched, discolored, or deformed
If vision calibration fails or lighting becomes uneven

6. Can I replace it independently?

Yes, but it requires careful disassembly of the optical module. Handle with ESD-safe gloves in a clean environment to avoid contamination or misalignment.

7. Related components to check or replace together

8. Storage and Handling Instructions

Store in dust-free, anti-static packaging
Avoid touching the optical surface directly
Protect from moisture, impact, and UV exposure
