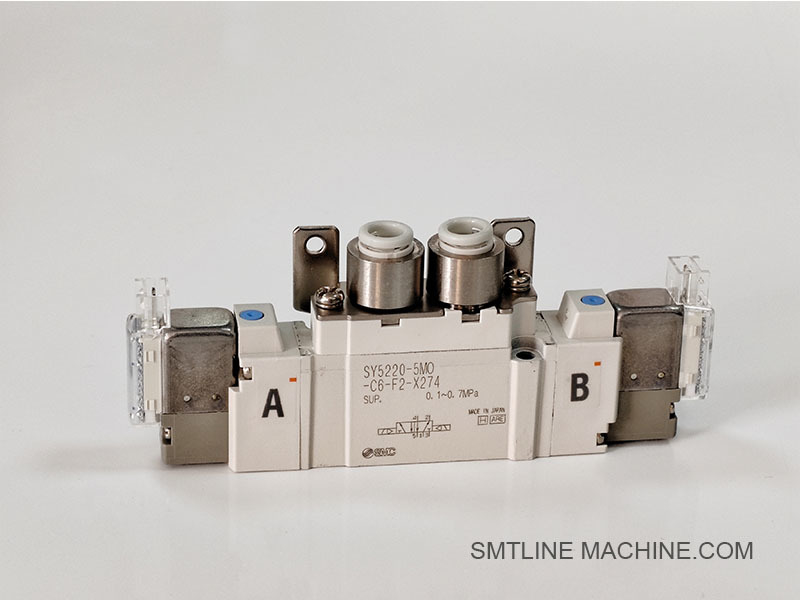

FUJI H1338F NXT II Module Clamping Solenoid Valve SMT Spare Parts

FUJIH1338F NXT II module clamping solenoid valve
Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery





Product Introduction – FUJIH1338F

Part Number: FUJIH1338F
Product Name: NXT II Module Clamping Solenoid Valve
Applicable Model: Fuji NXT II Pick-and-Place Machine
Category: Pneumatic Component / Solenoid Valve

Description:

The FUJIH1338F is a high-precision clamping solenoid valve designed for the Fuji NXT II series modules. It controls the pneumatic clamping mechanism of the placement head or module, enabling secure and reliable locking/unlocking during machine operation.

This valve ensures rapid and precise air flow control, contributing to stable mechanical positioning and safe component handling during high-speed SMT assembly processes.

Key Features:

Designed specifically for Fuji NXT II modules
Fast response time for efficient clamping action
Durable construction for long service life
Compatible with Fuji pneumatic systems
Ensures stable module locking during placement cycles

Typical Applications:

Pneumatic clamping of placement heads/modules in Fuji NXT II machines
Securing module positions during component placement
Controlling air flow in SMT assembly lines

Specifications:

Valve Type: Solenoid-operated pneumatic valve
Operating Pressure: Typically 0.4 – 0.7 MPa (check machine specs)
Voltage: Compatible with Fuji machine control voltage (verify specific voltage)
Connection: Standard pneumatic fittings for Fuji NXT II systems

Compatibility:

Fully compatible with Fuji NXT II pick-and-place series
Works in conjunction with other pneumatic components and sensors in the module

Related Components for FUJIH1338F – NXT II Clamping Solenoid Valve

Related Part Numbers for FUJIH1338F

FAQ Guide – FUJIH1338F NXT II Module Clamping Solenoid Valve

Part Number: FUJIH1338F
Applicable Model: Fuji NXT II Pick-and-Place Machine
Component: Module Clamping Solenoid Valve (Pneumatic)

1. What is the function of the FUJIH1338F?

It controls the pneumatic clamping mechanism of the Fuji NXT II module, enabling secure locking and unlocking of the placement head or module during operation.

2. Which machines use this solenoid valve?

Specifically designed for Fuji NXT II series pick-and-place machines and compatible modules.

3. What are the symptoms of a faulty solenoid valve?

Module clamping fails to engage or disengage
Air leakage or unusual hissing noises
Slow or inconsistent clamping action
Machine alarms related to clamp sensor or pneumatic faults

4. How to test the solenoid valve?

Listen for clicking sound when energized
Check for correct air pressure supply
Use a multimeter to verify coil resistance and electrical signals
Inspect pneumatic tubing for leaks or blockages

5. Can the solenoid valve be repaired or does it need replacement?

Usually, these valves are replaced as a whole unit. Repair is not recommended due to the precision and safety requirements.

6. What maintenance is required?

Regular inspection for air leaks
Clean or replace pneumatic filters
Check electrical connectors for corrosion or damage
Follow Fuji’s preventive maintenance schedule

7. What tools are needed for replacement?

Basic hand tools (screwdrivers, wrenches)
Pneumatic tubing cutters
Multimeter for electrical testing
Replacement valve FUJIH1338F

8. Are there any related parts I should check or replace simultaneously?

Pneumatic cylinders (e.g., FUJIH1340A)
Clamp sensors (FUJIH1339B)
Air tubing and fittings (FUJIPP0423)
Filters and regulators (FUJIPP0398)
