FUJI H67698 NXT III Module Clamping Solenoid Valve SMT Machine Spare Parts

FUJIH67698 NXT III module clamping solenoid valve

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery


Product Introduction

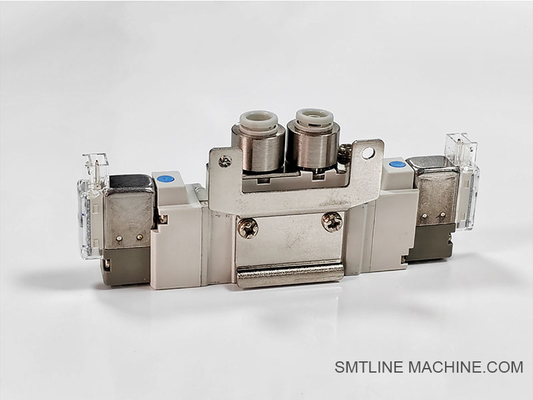

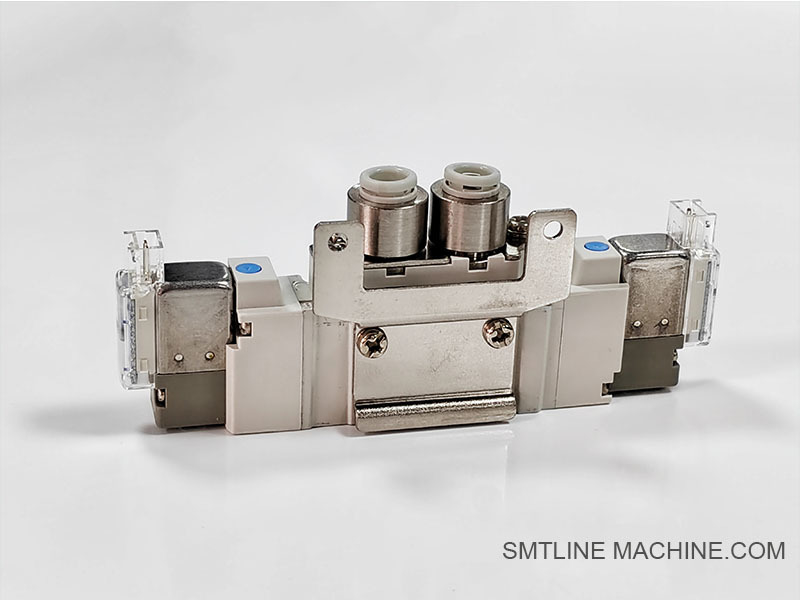

FUJI H67698 – NXT III Module Clamping Solenoid Valve

Overview

The FUJI H67698 is a clamping solenoid valve specifically designed for use in the NXT III SMT placement platform. It plays a key role in the automatic clamping and securing of machine modules (such as placement heads or feeder units) during operation, ensuring mechanical stability and precise alignment.

This valve is part of the machine’s pneumatic control system, and it actuates locking mechanisms that fix modules into place on the XY robot or beam units.

Key Features

Precision Actuation
Enables reliable and repeatable clamping of heads/modules for stable high-speed placement.

Compact Design
Engineered to fit seamlessly into the space-constrained layout of NXT III machines.

Air-Driven Operation
Uses compressed air to drive internal pistons that lock or release mechanical latches.

High Durability
Designed for long operational life and resistance to contamination in a production environment.

Technical Specifications

Applications

Clamps placement heads, feeder modules, or tooling units securely in place.
Activated automatically during module exchange, calibration, or machine start-up.
Used in NXT III mainframes, especially in multi-module production lines.

Handling & Maintenance Tips

Ensure clean, dry air supply to extend valve life.
Check for air leaks, faulty solenoid response, or sticking pistons during preventive maintenance.
Replace if the valve exhibits slow response, clamping failure, or unusual air noise.

Related Parts

Related Accessories for FUJI H67698 Clamping Solenoid Valve

These accessories ensure stable, safe, and efficient operation of the clamping solenoid valve in your FUJI NXT III line.

Related Part Numbers for FUJI H67698 Clamping Solenoid Valve

Note: Items marked with (example) are commonly used part numbers and may vary depending on your exact NXT III model and configuration. Always confirm with the FUJI parts catalog or authorized supplier.

FAQ Guide – FUJI H67698 NXT III Module Clamping Solenoid Valve

1. What is FUJI H67698?

Answer:
The H67698 is a clamping solenoid valve used in FUJI NXT III SMT placement machines. It controls the locking mechanism that secures placement heads or feeder modules to the mainframe during machine operation or module exchange. This valve is part of the machine's pneumatic system and ensures stable and precise clamping during high-speed production.

2. What is its primary function?

Answer:

Controls air-actuated locking of NXT III modules (e.g. placement heads, feeder units).
Ensures modules are securely fixed in place during operation.
Enables automatic clamping/unclamping during setup or head exchange procedures.

3. In which machines is H67698 used?

Answer:

FUJI NXT III platforms
Also used in some AIMEX or NXT II models depending on head/module configuration
Found in the beam unit, module docking rail, or base of the machine

4. What are the symptoms of a failing solenoid valve?

Answer:

Module cannot lock or release properly
Audible air leakage or hissing
Slow or no response during clamping commands
Error messages such as "Module not detected" or "Clamping failure"
Intermittent module connection issues

5. Can the H67698 be replaced individually?

Answer:
Yes. It is a modular component that can be replaced without removing the entire beam or unit.
After replacement:

Check air pressure and signal wiring
Confirm proper seating and leak-free operation
Run clamping test via machine maintenance menu

6. How is it maintained?

Answer:

Clean monthly to remove dust or oil buildup
Inspect tubing and air connectors for wear
Ensure electrical cable is secure
Replace O-rings or internal seals if signs of internal air leakage occur
Always use dry, filtered air supply to extend life

7. What components are commonly used with it?

8. What is the recommended air pressure range?

Answer:
Typically between 0.45 MPa – 0.60 MPa (65–87 psi). Always refer to the FUJI machine’s pneumatic specifications.

9. How often should it be inspected?

Answer:

Monthly: Check for air leaks and valve responsiveness
Quarterly: Inspect connections, fittings, and internal components
Annually: Replace seals if used in high-load environments

10. Where can I get replacement valves?

Answer:

Order through FUJI official distributors
Or from authorized SMT parts suppliers
Always request the correct part number: H67698
