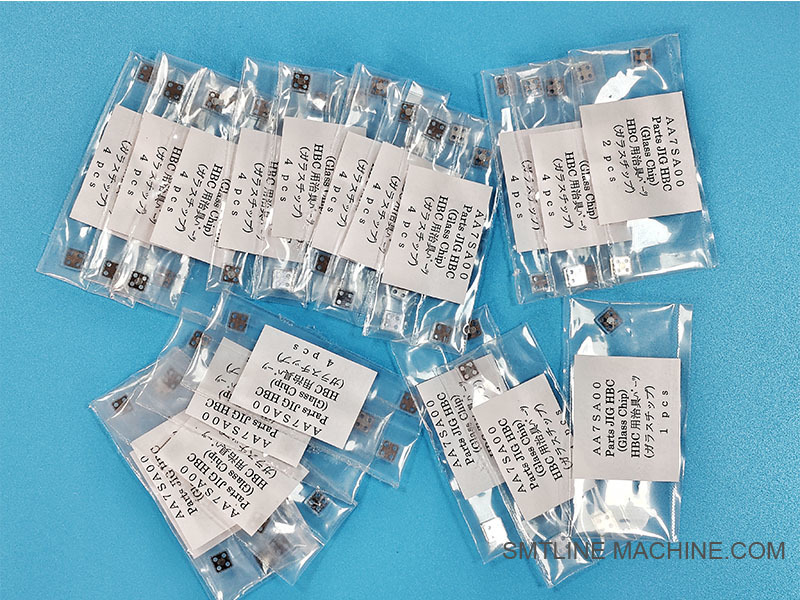

High Precision FUJI AA7SA00 Calibration Glass IC for SMT Equipment

FUJIHBC Calibration Glass IC AA7SA00

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery


Product Introduction

FUJI AA7SA00 – HBC Calibration Glass IC

Overview

The FUJI HBC Calibration Glass IC (AA7SA00) is a precision glass reference standard used in head beam calibration (HBC) processes for FUJI SMT placement systems. It functions as a critical benchmark tool for the optical calibration and alignment of vision systems, ensuring that the machine's camera and recognition algorithms maintain high positional accuracy and repeatability.

This calibration glass simulates a component (IC package) with etched fiducial marks or patterns, allowing the system to compare its recognition accuracy against a known geometric reference.

Key Features

High-Precision Etched Patterns
The glass is embedded with micron-level reference marks used to verify or correct machine vision calibration.

Optical Clarity and Stability
Made from high-purity optical glass, resistant to distortion, scratches, and temperature changes.

Used in HBC Calibration Units
Specifically compatible with FUJI HBC units for nozzle and head alignment tasks.

Reusable and Durable
Designed for repeated use without degradation of calibration quality.

Technical Specifications

Applications

Calibration of optical recognition systems (camera offset, distortion, focus).
Alignment of placement head movement and recognition accuracy.
Verification of XY, Theta coordinate mapping between cameras and mechanical axes.
Used in FUJI’s HBC (Head Beam Calibration) system.

Handling and Maintenance Tips

Handle only with gloves or anti-static tweezers to avoid contamination.
Clean with optical-grade cloth and alcohol if smudges or dust are present.
Store in original protective case to avoid scratches or chipping.
Inspect regularly to ensure reference marks are intact and visible.

Related Accessories for FUJI AA7SA00 – HBC Calibration Glass IC

These accessories together ensure precise, repeatable, and safe execution of vision system calibration and head alignment processes using the AA7SA00 calibration glass IC.

Related Part Numbers for FUJI AA7SA00 – HBC Calibration Glass IC

Note: Items marked as (example) are representative part numbers based on typical FUJI calibration setups. Exact numbers may vary by machine model (e.g., NXT II, NXT III, AIMEX) and should be verified in your FUJI parts catalog or through an authorized supplier.

FAQ Guide — FUJI AA7SA00 HBC Calibration Glass IC

1. What is FUJI AA7SA00?

Answer:
The AA7SA00 is a calibration glass IC used in FUJI’s Head Beam Calibration (HBC) system. It provides a precise visual reference for calibrating and verifying the accuracy of the camera systems, nozzle alignment, and head positioning in SMT placement machines.

2. What is the function of the calibration glass?

Answer:

Acts as a standard reference pattern for calibrating the vision recognition system.
Ensures X, Y, and θ-axis (rotation) alignment between the nozzle and camera systems.
Helps identify and correct camera distortion, offset, and head movement deviation.
Used during routine machine maintenance or after mechanical replacement of parts.

3. Which machines or systems use AA7SA00?

Answer:

FUJI NXT II, NXT III, AIMEX, and other models equipped with the HBC (Head Beam Calibration) unit.
Compatible with machines requiring high-precision vision and head calibration procedures.

4. What does the calibration glass look like?

Answer:
It is a small rectangular optical glass with micron-level etched fiducial patterns that resemble IC package outlines, grids, or crosshairs. These patterns are read by the vision system during calibration.

5. How is the AA7SA00 calibration glass used?

Answer:

Inserted into the HBC glass holder or base fixture.
The machine’s vision system captures and compares the position of etched marks.
Deviations are used to auto-correct internal mapping between nozzle, camera, and placement coordinates.

6. What are the signs that it needs replacement?

Answer:

Scratches, smudges, or chips on the etched surface.
Faded or unclear fiducial marks affecting calibration accuracy.
Visual inspection reveals cracks, residue, or contamination.
Repeated calibration errors with no other mechanical fault.

7. How to clean and maintain the calibration glass?

Answer:

Use anti-static gloves or plastic tweezers to avoid fingerprints and ESD.
Clean gently with optical-grade alcohol and lint-free cloth or swabs.
Store in its original anti-static case to prevent scratches or breakage.

8. What accessories are used with AA7SA00?

9. How often should the calibration glass be used?

Answer:

During machine installation or relocation
After replacing the camera, head, or nozzle
As part of preventive maintenance (monthly or quarterly)
When camera or placement accuracy becomes unstable

10. Where to purchase AA7SA00?

Answer:

From FUJI official distributors or certified SMT suppliers.
Be sure to request original part number: AA7SA00 for guaranteed compatibility and precision.
