High Performance FUJI NA74B Nozzle Station 2UGTML000200 SMT Spare Part

FUJINA74B nozzle station 2UGTML000200

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery


Product Introduction

FUJI NA74B Nozzle Station — 2UGTML000200

Overview

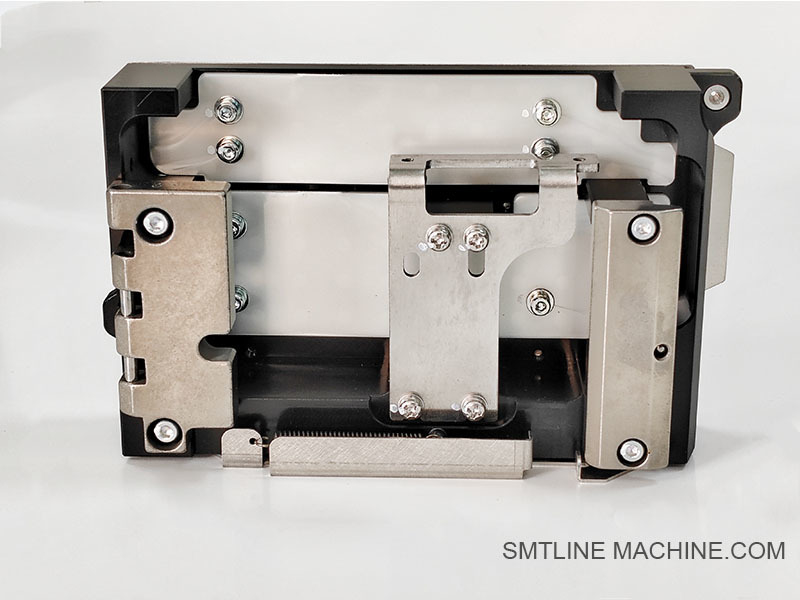

The FUJI NA74B Nozzle Station (Part Number: 2UGTML000200) is a critical component used in FUJI SMT placement machines, designed specifically for the NA74B series placement head. This nozzle station serves as the mechanical interface for mounting, changing, and securing the pick-and-place nozzles used during the PCB assembly process.

It enables quick and precise nozzle exchange to accommodate various component sizes and types, ensuring efficient and flexible production workflows.

Key Features

Precision Alignment
Provides exact positioning for the nozzles, ensuring high placement accuracy.

Quick Change Mechanism
Allows fast and secure nozzle swaps, minimizing machine downtime.

Durable Build
Made with high-quality materials to withstand repetitive usage and maintain long-term reliability.

Compatibility
Designed for the FUJI NA74B placement head series, ensuring seamless integration.

Maintenance Friendly
Easy to service and replace parts, supporting efficient machine upkeep.

Technical Specifications

|

Applications

Utilized in FUJI NA74B SMT placement machines for PCB assembly.
Supports rapid nozzle changes for different component types and sizes.
Ensures stable and accurate nozzle positioning during high-speed pick-and-place operations.

Related Components

Related Accessories for FUJI NA74B Nozzle Station (2UGTML000200)

These accessories help maintain efficient, accurate, and flexible nozzle handling during SMT production with the NA74B placement head.

Related Part Numbers for FUJI NA74B Nozzle Station (2UGTML000200)

Note: Some part numbers may vary depending on nozzle size, production line requirements, and machine configuration. Always confirm with the FUJI parts catalog or supplier.

FAQ Guide — FUJI NA74B Nozzle Station (2UGTML000200)

1. What is the FUJI NA74B Nozzle Station (2UGTML000200)?

Answer:
The 2UGTML000200 is a nozzle station unit designed for the FUJI NA74B placement head. It serves as a secure docking point for pick-and-place nozzles, allowing automatic or manual nozzle loading, unloading, and storage during operation. It plays a critical role in maintaining nozzle availability and supporting high-speed, high-precision SMT assembly.

2. What is its function in the SMT machine?

Answer:

Holds and organizes multiple nozzles used by the placement head.
Enables automated nozzle exchange based on component requirements.
Helps maintain nozzle cleanliness and alignment for accurate pickup and placement.
Ensures fast changeovers between different nozzle types.

3. Which machines or heads use this nozzle station?

Answer:

Specifically designed for the FUJI NA74B series placement head.
Used in FUJI NXT II, NXT III, and AIMEX machines equipped with the NA74B head.

4. What are common issues or signs of failure?

Answer:

Nozzle fails to dock or undock during automatic exchange.
Misalignment of nozzle positions causing pickup or placement errors.
Wear or mechanical damage on station slots or holders.
Accumulated dust or lack of cleaning causing poor contact or nozzle jamming.

5. Can the nozzle station be replaced independently?

Answer:
Yes. The 2UGTML000200 unit can be replaced individually. After replacement:

Run nozzle calibration routines.
Ensure firm installation of the station base (e.g., 2UGTML000100).
Check sensor feedback for nozzle exchange operations.

6. What maintenance is required?

Answer:

Daily visual inspection for contamination or nozzle damage.
Weekly cleaning with nozzle cleaning tools or brushes.
Replace damaged or loose parts (e.g., holder pins or brackets).
Perform sensor checks for nozzle presence detection.

7. What components work with the nozzle station?

8. Can it support different nozzle types?

Answer:
Yes. It supports all compatible FUJI NA74B nozzles, including types for:

Standard chip components
Odd-shaped or large parts
Vacuum-sensitive components
Custom nozzles (based on production line requirements)

9. Where can I purchase it?

Answer:

Through FUJI official distributors
Certified SMT parts suppliers
Be sure to confirm part number 2UGTML000200 for the correct station model
