Durable FUJI NXT M3II X-axis Gear PM0CCF0 SMT Machine Spare Part

FUJINXT M3II X-axis gear PM0CCF0

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery


Product Introduction

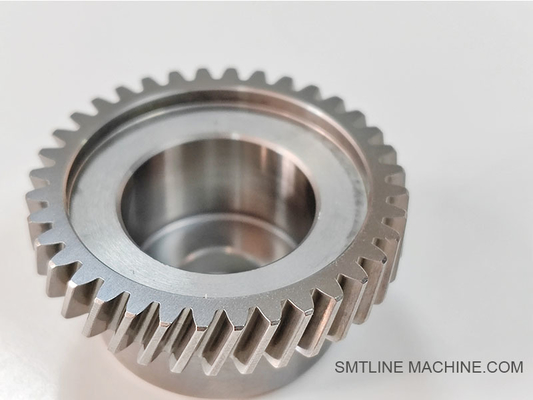

FUJI PM0CCF0 – NXT M3II X-Axis Gear

Overview

The FUJI PM0CCF0 is a precision X-axis gear used in the FUJI NXT M3II series SMT placement machine. This gear plays a critical role in the X-axis drive system, which controls the horizontal movement of the placement head during PCB assembly.

Manufactured with high accuracy, the PM0CCF0 gear ensures smooth and reliable transmission of power from the motor to the linear motion system, supporting high-speed and high-precision component placement.

Key Features

Precision Machining
Made with tight tolerances to guarantee accurate engagement and consistent gear meshing.

Durable Construction
Manufactured from hardened alloy steel or treated metal to resist wear and extend operational life.

Smooth Power Transmission
Works in conjunction with the motor, timing belts, and pulleys to deliver precise linear motion on the X-axis.

Compatibility
Specifically designed for integration within the FUJI NXT M3II head assembly and associated drive units.

Technical Specifications

Applications

Drives the X-axis movement of the placement head in FUJI NXT M3II machines.
Supports high-speed, precise positioning of the head over the PCB.
Integral to the mechanical transmission system coordinating motor and linear motion components.

Related Components

Related Accessories for FUJI PM0CCF0 – NXT M3II X-Axis Gear

These accessories work together to ensure precise, smooth, and reliable horizontal motion of the placement head during high-speed PCB assembly.

Related Part Numbers for FUJI PM0CCF0 – NXT M3II X-Axis Gear

Note: Some part numbers marked (example) may vary based on machine version (NXT II, NXT III, AIMEX) and should be confirmed with FUJI parts manuals or your supplier.

FAQ Guide — FUJI PM0CCF0 NXT M3II X-Axis Gear

1. What is FUJI PM0CCF0?

Answer:
The PM0CCF0 is a precision X-axis gear used in the FUJI NXT M3II SMT placement machine. It transmits rotational motion from the motor to drive the head along the X-axis, enabling accurate horizontal positioning during PCB assembly.

2. What function does the PM0CCF0 gear serve?

Answer:

Transfers torque from the X-axis motor to the linear drive system.
Enables smooth, precise horizontal movement of the placement head.
Works with timing belts, pulleys, and other drive components to maintain positioning accuracy.

3. Which machines use the PM0CCF0 gear?

Answer:

FUJI NXT M3II placement machines.
Applicable on SMT lines equipped with the NXT II, NXT III, or AIMEX heads that include the M3II drive module.

4. What symptoms indicate the gear may be worn or damaged?

Answer:

Jerky or inconsistent movement along the X-axis.
Abnormal noises such as grinding or clicking from the drive area.
Positioning errors or loss of accuracy.
Visible wear or damage on the gear teeth.

5. Can the PM0CCF0 gear be replaced independently?

Answer:
Yes. It can be replaced separately during maintenance. After replacement, proper alignment, belt tension adjustment, and encoder calibration are recommended.

6. How often should the gear be inspected or maintained?

Answer:

Inspect every 6 to 12 months or during scheduled preventive maintenance.
Replace if signs of wear, damage, or performance issues are detected.

7. Is lubrication required?

Answer:
Yes. Apply light machine grease recommended by FUJI to reduce wear and noise. Avoid excessive lubrication.

8. What components work together with PM0CCF0?

9. Where to purchase PM0CCF0?

Answer:
Available through FUJI authorized distributors and certified SMT spare parts suppliers.
