FUJI NXT M3II XS-axis gear PM0CCH0 SMT Machine Spare Parts

FUJINXT M3II XS-axis gear PM0CCH0

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery


Product Introduction

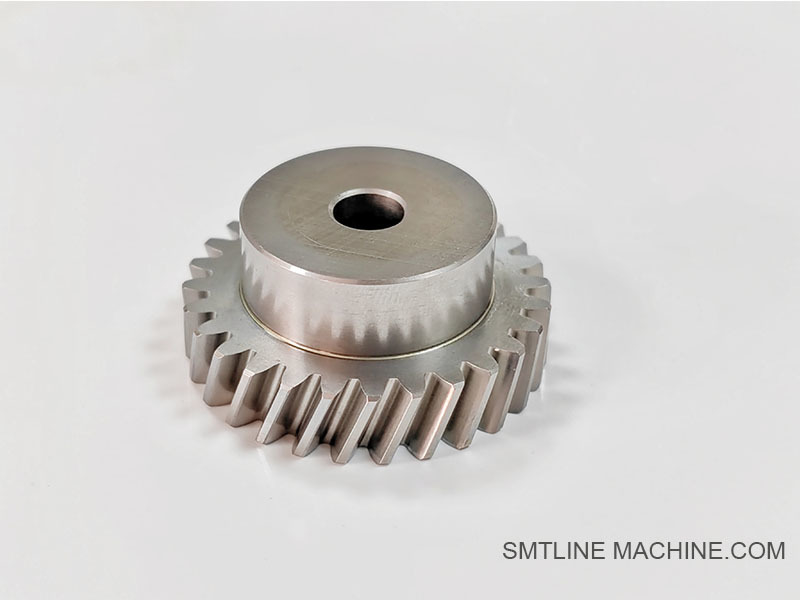

FUJI PM0CCH0 – NXT M3II XS-Axis Gear

Overview

The FUJI PM0CCH0 is a precision XS-axis gear used in the FUJI NXT M3II series modular placement head. It plays a vital role in the internal drive system, specifically for controlling the XS-axis — a sub-axis or fine adjustment axis that allows micro-positioning of the placement head, nozzle, or component handling unit.

This gear is engineered for high accuracy and durability, enabling precise linear or rotational motion in compact mechanisms within the M3II module, especially where miniature gear interaction is required.

Key Features

High-Precision Gear Teeth
Machined with micron-level accuracy to ensure smooth engagement and repeatable motion.

Designed for XS-Axis Applications
Used in fine-tuning movements such as nozzle alignment, height correction, or Z/θ offset adjustments within the placement head.

Durable Material Composition
Manufactured from hardened alloy steel or precision-ground treated metals to withstand continuous high-speed cycling and torque.

Stable Transfer of Micro-Motion
Ensures no slippage, backlash, or deviation during component pickup and placement.

Technical Specifications

Applications

Used inside FUJI NXT M3II head units
Drives XS-axis, enabling:

Micro-step motion for nozzle adjustment
Internal fine movement for head calibration
Improved placement repeatability and accuracy
Key component in precision mechatronic mechanisms in FUJI SMT systems

Related Components

Related Accessories for FUJI PM0CCH0 – NXT M3II XS-Axis Gear

These components collectively form the fine positioning system inside the NXT M3II module, enabling precise nozzle alignment and high-accuracy component placement.

Related Part Numbers for FUJI PM0CCH0 – NXT M3II XS-Axis Gear

Note: Some part numbers marked as (example) may vary depending on your exact machine configuration (NXT II, III, AIMEX) and head type. Please confirm with your FUJI parts manual or supplier.

FAQ Guide — FUJI PM0CCH0 NXT M3II XS-Axis Gear

1. What is FUJI PM0CCH0?

Answer:
The PM0CCH0 is a precision XS-axis gear used in the FUJI NXT M3II series SMT placement head. It serves as a key mechanical component enabling fine micro-movements or adjustments within the head assembly, especially for nozzle positioning and angular correction.

2. What function does the XS-axis gear perform?

Answer:

Transfers motion from the XS-axis motor to micro-adjust internal mechanisms.
Enables precise fine-tuning of nozzle position (such as height or angular adjustments).
Supports repeatable and accurate component placement by minimizing backlash and mechanical slack.

3. Which machines or modules use the PM0CCH0 gear?

Answer:

FUJI NXT M3II heads
Applicable in NXT II, NXT III, and AIMEX series machines equipped with the M3II micro-drive system.

4. What are common symptoms of a failing XS-axis gear?

Answer:

Decreased placement accuracy or inconsistent nozzle positioning
Abnormal noises (grinding, clicking) from the micro-drive area
Loss of fine adjustment capability in the XS-axis
Increased backlash or mechanical play in nozzle movement
Error codes related to XS-axis motor or encoder feedback

5. Can the PM0CCH0 gear be replaced separately?

Answer:
Yes. The gear can be replaced independently. After replacement, it is important to:

Perform proper alignment and backlash adjustment
Calibrate the XS-axis motor and encoder to ensure precise control

6. How often should the XS-axis gear be inspected or maintained?

Answer:

Inspect every 6 to 12 months or as part of scheduled preventive maintenance.
Replace if wear, cracks, or damage are detected, or if performance issues arise.

7. Is lubrication necessary for the XS-axis gear?

Answer:
Yes. Apply appropriate light machine grease recommended by FUJI to reduce wear and noise. Avoid over-lubrication to prevent contamination.

8. What other parts work with the PM0CCH0 gear?

9. Where can I purchase the PM0CCH0 gear?

Answer:
Available from:

FUJI authorized SMT parts distributors
Certified aftermarket suppliers with genuine or OEM-equivalent parts
