FUJI NXT M3II X-axis gear PM0CEG4 SMT Machine Spare Parts

FUJINXT M3II X-axis gear PM0CEG4

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery


Product Introduction

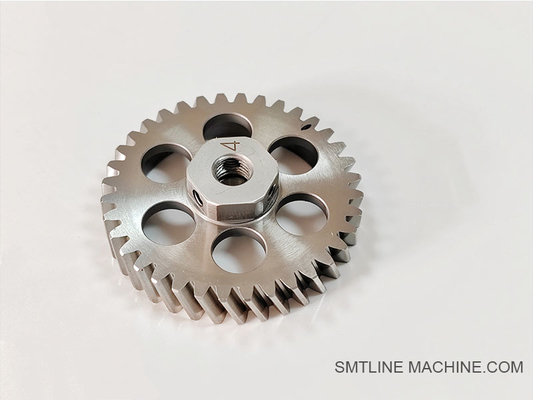

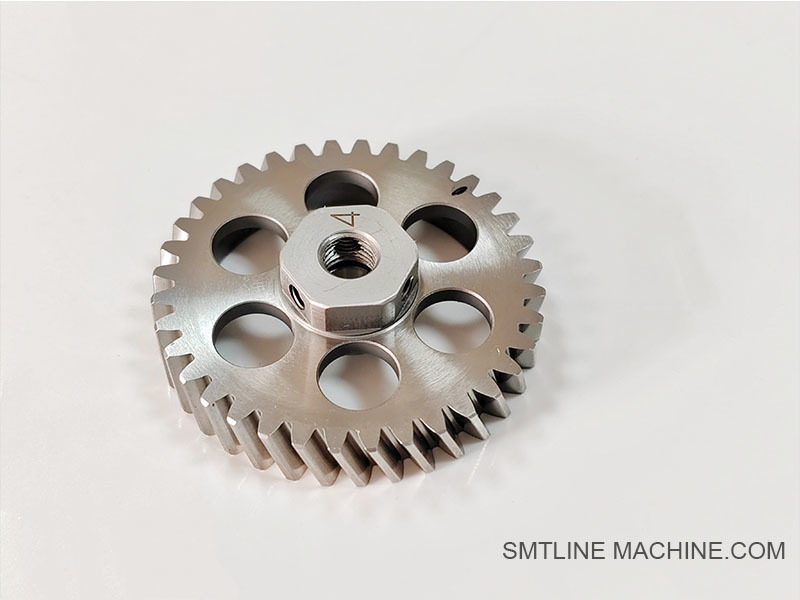

FUJI PM0CEG4 – NXT M3II X-Axis Gear

Overview

The FUJI PM0CEG4 is a high-precision X-axis drive gear used in the M3II modular unit of the FUJI NXT series SMT placement platform. This gear is part of the linear motion transmission system responsible for driving the head unit along the X-axis during component mounting operations.

Designed to withstand high-speed, repetitive motion and mechanical load, the gear ensures smooth, accurate, and stable movement of the head or gantry system.

Key Features

Precision Gear Machining
Manufactured with tight tolerances to ensure accurate positioning and repeatability in high-speed SMT operations.

Optimized for NXT M3II Modules
Specifically designed for integration with the M3II X-axis motor assembly and corresponding motion system.

Durable, High-Strength Material
Made from hardened alloy steel or treated aluminum, providing excellent resistance to wear and fatigue under continuous operation.

Reliable Rotary-to-Linear Motion Transfer
Works in combination with belt drives or ball-screw systems to convert motor torque into precise X-axis displacement.

Technical Specifications

Applications

Used in FUJI NXT M3II placement modules
Ensures precise head positioning during high-speed mounting
Critical for PCB alignment, component placement, and movement accuracy

Related Components

Related Accessories for FUJI PM0CEG4 – NXT M3II X-Axis Gear

These components form the complete X-axis motion system, working together with the PM0CEG4 gear to drive the pick-and-place head across the working area with speed and precision.

Related Part Numbers for FUJI PM0CEG4 – NXT M3II X-Axis Gear

Note: Part numbers marked with (example) may vary based on machine version (NXT II, III, AIMEX), configuration, or supplier. Always verify with your FUJI BOM or distributor.

FAQ Guide — FUJI PM0CEG4 NXT M3II X-Axis Gear

1. What is FUJI PM0CEG4?

Answer:
The PM0CEG4 is a precision-machined X-axis drive gear used in the FUJI NXT M3II module. It functions as a core component in the X-axis motion system, converting motor torque into mechanical movement to guide the placement head or gantry across the horizontal axis during high-speed SMT operations.

2. What is its function in the NXT M3II module?

Answer:
The PM0CEG4 gear:

Transmits power from the X-axis motor to the head unit
Enables smooth, accurate horizontal motion across the PCB
Works in coordination with the timing belt, pulley, and linear guides

3. Which machines use the PM0CEG4 gear?

Answer:
This gear is used in:

FUJI NXT M3II Modules
Installed on platforms like NXT II, NXT III, and AIMEX series when equipped with M3II head drive units.

4. What symptoms indicate the gear is worn or damaged?

Answer:

Inconsistent or jerky head movement along the X-axis
Abnormal noise from the X-axis during movement
Axis drive errors or step loss
Backlash or reduced placement accuracy
Excessive wear on the timing belt or motor

5. Can the PM0CEG4 gear be replaced independently?

Answer:
Yes. The gear can be individually replaced during servicing. After replacement, perform:

Re-alignment of the motor/gear/belt system
Backlash adjustment
Encoder calibration if necessary

6. How often should the gear be inspected or replaced?

Answer:

Inspection Interval: Every 6–12 months, or during annual preventive maintenance
Replacement: As needed based on wear, or after 10,000+ machine hours in high-speed use

7. Does the gear require lubrication?

Answer:
Yes — apply light machine grease or oil depending on FUJI's spec.
Do not over-lubricate, as excess grease may attract dust or affect surrounding belts/pulleys.

8. What components work together with the PM0CEG4 gear?

9. Is special alignment needed during installation?

Answer:
Yes. Ensure:

Proper alignment with motor shaft and pulley
Tension of the timing belt is correct
Gear mesh is smooth and backlash is within limits
Encoder recheck to maintain positioning accuracy

10. Where can I purchase PM0CEG4?

Answer:
Available from:

FUJI SMT authorized distributors
Certified SMT spare parts suppliers
Ensure parts are genuine OEM or equivalent to maintain performance and safety.
